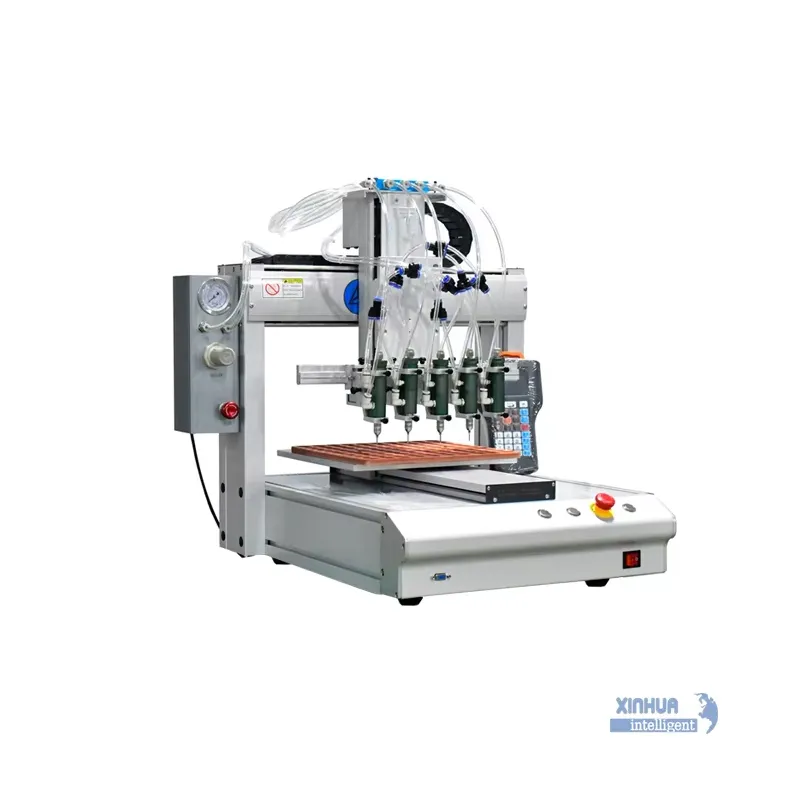

The Desktop High-Speed Three-Axis Automatic Glue Dispenser Robot is a precision dispensing solution designed for high-efficiency, multi-point glue application in industrial production. Equipped with five dispensing heads and a 5L pressure bucket, it enables simultaneous or sequential multi-head dispensing, significantly improving production throughput. The system’s compact desktop design makes it ideal for laboratories, workshops, or small- to medium-scale automated production lines.
This three-axis dispensing robot provides precise motion control for various dispensing patterns, including dots, lines, arcs, and curves. It is suitable for electronics assembly, LED encapsulation, PCB bonding, mobile phone components, sensors, and other precision adhesive applications.
| Parameter | Specification |
|---|---|
| Model | XH-D331 |
| Number of controlled axes | Three-axis |
| Effective travel | X axis: 300mm Y1 axis: 300mm Z axis: 100mm |
| Transmission mode | Double-track timing belt / Lead screw module |
| Power source | Stepper motor / Servo motor |
| Top speed | 500 mm/sec |
| Repeat accuracy | ±0.05 mm |
| Maximum load | X/Y/Z: 5kg / 5kg / 3kg |
| Control System | Hand-held three-axis control system |
| File storage space | 400 sets of processing files, up to 9999 points per file |
| Power | AC110-250V, 50-60Hz, 350W |

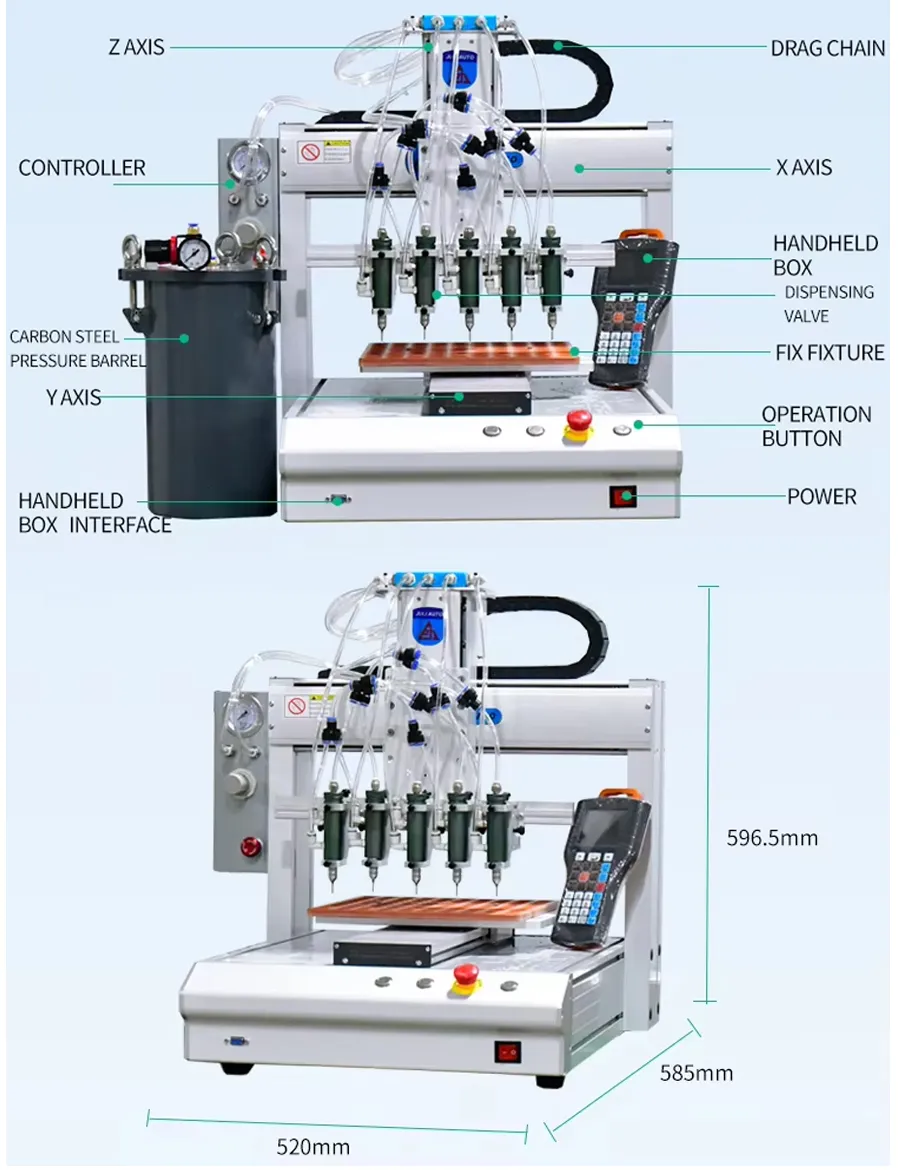

| Size (L×W×H) | 520mm × 585mm × 596mm |
| Weight | 75 kg |
