Multi-Axis Online Automated Glue Dispensing Machine - XY-570T

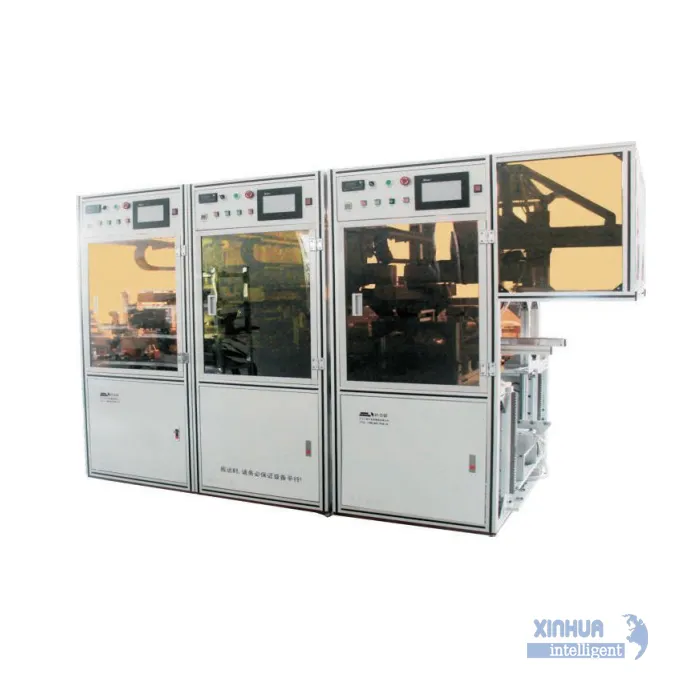

Multi Axis Automated Glue Dispensing Machine

Click to enlarge

Details:

The machine consists of 3 sets of 5-axis standard mechanical arms, 2 sets of jig lifting mechanisms, 1 jig positioning platform, 6 sets of sub-jig/product transfer platforms, 1 material picking mechanical arm, 1 material discharging conveyor line, 1 set of bottom return conveyor line, and 3 sets of glue supply pump modules.
Three rubber heads were operated at the same time, and the output doubled.
During normal operation, each dispensing machine station has products queued in front and behind it. After the three dispensing machine are completed, the assembly line acts synchronously.
The conveyor line is equipped with positioning devices to ensure rapid and precise product transfer and positioning. An air cylinder lifts the product, and the rotating shaft tightly presses the product to achieve flipping operations.

Send Inquiry

Description

Send Inquiry

Model	XY-570T
Working range (mm)	X400Y450Z180mm, the fourth and fifth axes are product turning and rubber valve swinging axis, which can complete the specified degree turning according to customers’ requirements
Moving speed (mm/s)	X/Y: 500mm/s Z: 300mm/s
Programming mode	Teach pendant
Repeatability accuracy	±0.03mm
Drive mode	Japan servo motor + ball screw drive
Dispensing	High precision dispensing valve 3 pcs
Glue supply	Glue supply system * 3 sets
PLC + man machine	3 sets high precision dispensing valve
Full-voltage	AC220V 50-60Hz
Operating temperature	10–40°C
Operating humidity	20–90%, no condensation
Pressure	0.4–0.8Mpa
Dimension	Approx. W3000L1330H1850mm (for reference only, subject to actual product)
Weight	Approx. 500kg
