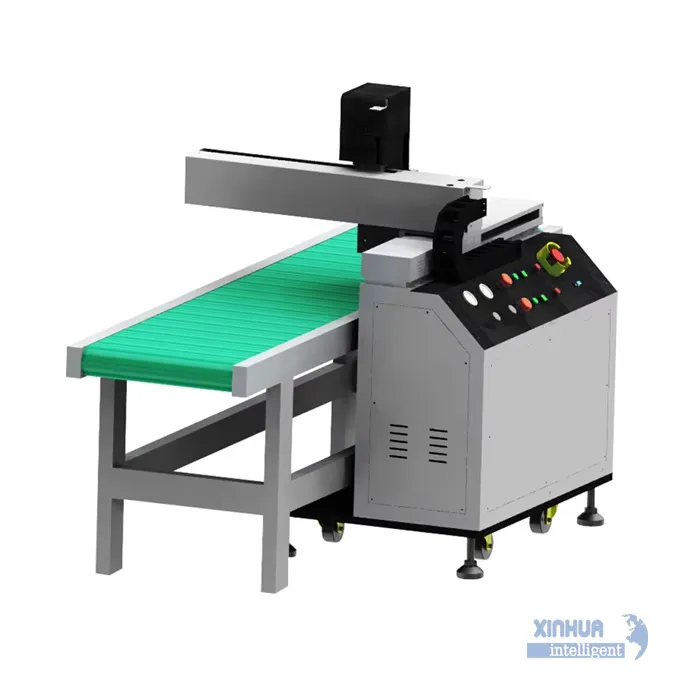

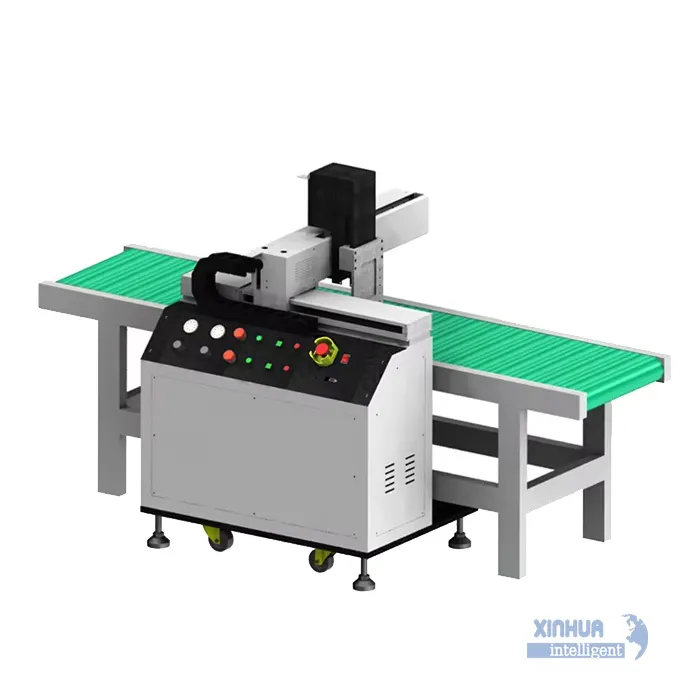

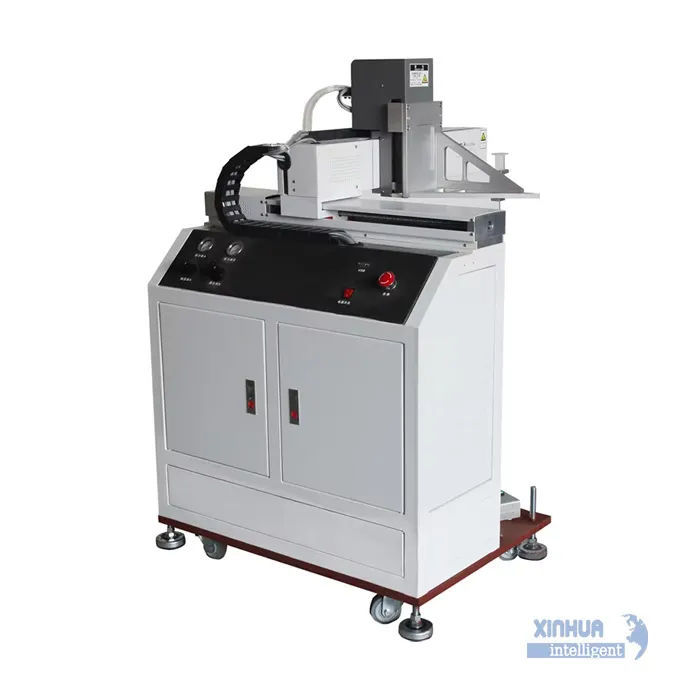

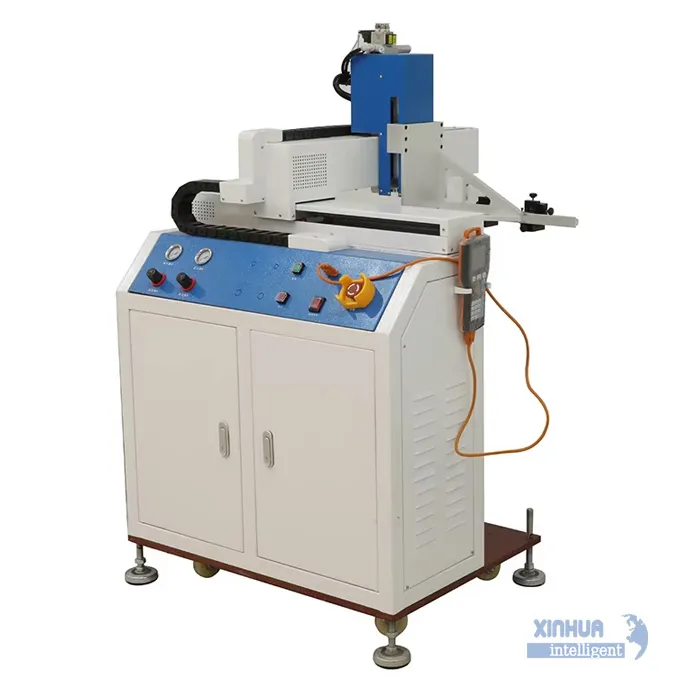

3-Axis Inline Automatic Glue Dispenser XY-D3340

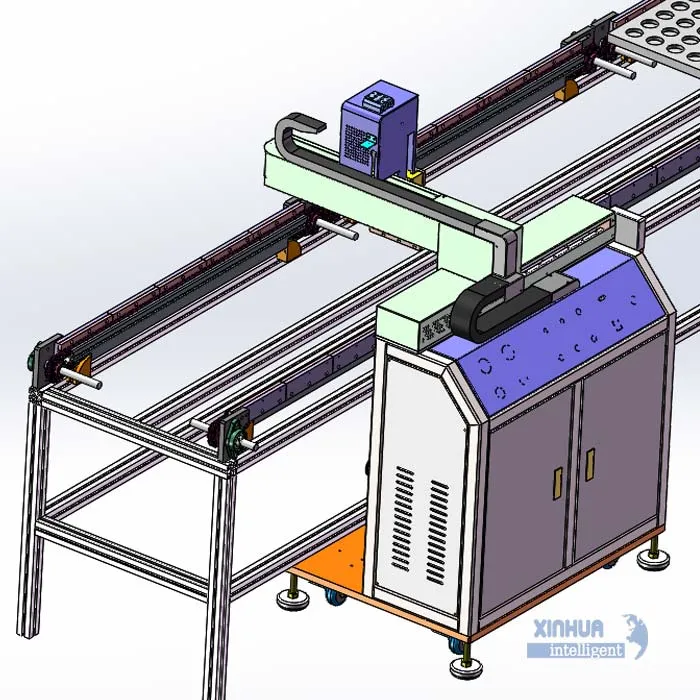

The 3-axis automatic glue dispenser is designed to be placed directly alongside the customer's production line. A product stop mechanism is installed on the conveyor line. When the infrared sensing system detects the arrival of a product, it automatically activates the stop mechanism to hold the product in place and simultaneously starts the dispensing process. Once the dispensing is completed, the stop mechanism is automatically released, allowing the product to exit while the next product flows in seamlessly.

These mechanisms are designed to prevent product collisions or “tailgating” during continuous flow. When multiple products arrive closely in sequence, the infrared system automatically identifies and ensures that dispensing is only applied to the first product. It can also intelligently recognize the second or third product for subsequent dispensing.
In the event of a line blockage, the system automatically detects the jam and enters a standby mode. Once the blockage is cleared, the machine resumes the dispensing cycle automatically.

To prevent products from being accidentally pushed back toward the glue dispenser due to downstream pressure on the customer’s line, the anti-backflow mechanism is automatically engaged. This prevents reverse movement of products into the dispensing area and avoids unintended operation of the dispenser.
