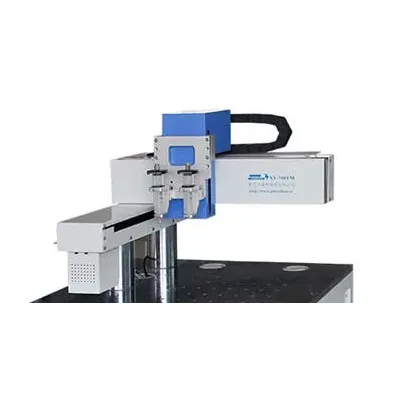

Gantry Frame Mechanism
The gantry architecture minimizes vibration, improves overall rigidity, and allows for larger XYZ travel ranges compared with desktop glue dispenser machine.Ensures long-term stability, suitable for high-precision tasks across wide work surfaces.

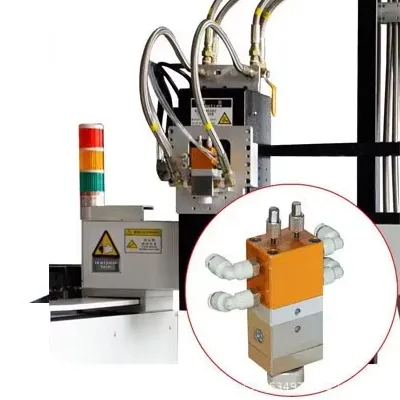

Re-Suction AB Glue Valve
By adjusting the air pressure size and controlling the glue output ratioIt is controlled by air pressure, visual detector and other equipment systems.
Ab back suction type double cylinder rubber valve has an all-in-one overall shape.
multiple valve bodies can be installed at the same time, achieving ab glue multi-point operation.
It can be equipped with a static mixing tube of various grids.
It has extremely strong return suction power and can cut off the glue cleanly without glue.

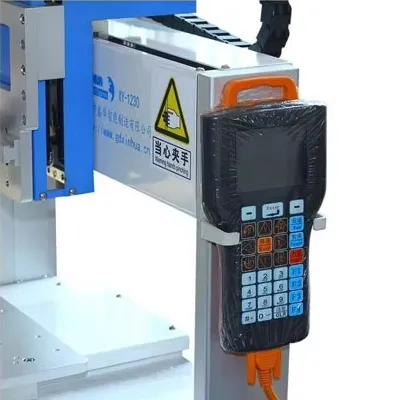

Handheld Programmer
Handheld teaching guide box with large capacity and easy operation.The industrial glue dispenser no professional computer engineer operation is required, workers can complete training in just 3 hours, with high capacity memory, can store multiple sets of data at the same time.

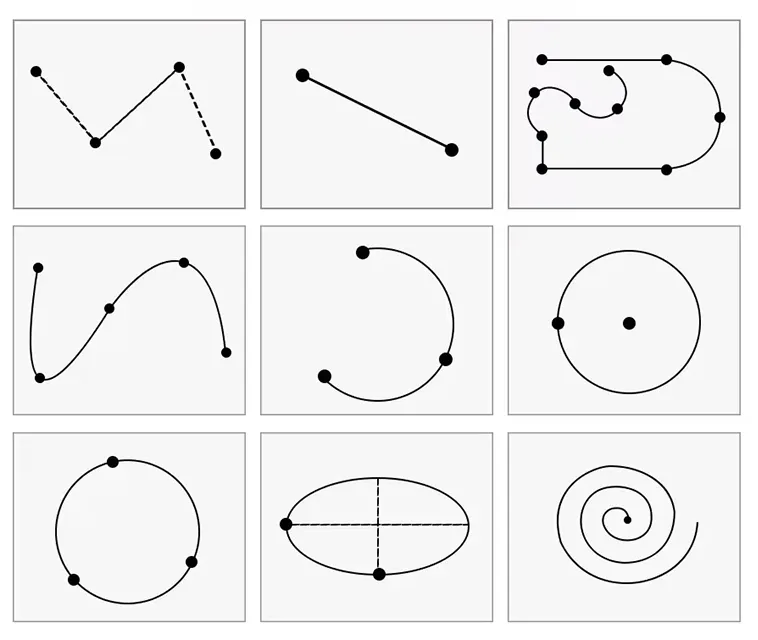

Trajectory at any Point
Can make any trajectory such as points, lines, circles, arcs, etc.
The processing speed in the middle can be changed arbitrarily The amount of dispensing and gluing can be controlled arbitrarily.
Air pressure, vacuum return (control glue drip) can be controlled arbitrarily.

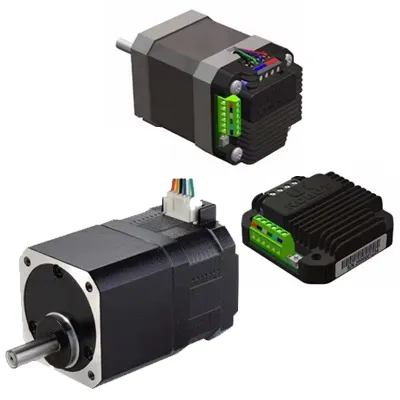

Imported Motor + Driver
Stable working performance, small error; repeated accuracy soil 0.015mm.Precise slot setting, smooth operation; high torque, durable, good high-speed performance, strong overload resistance.

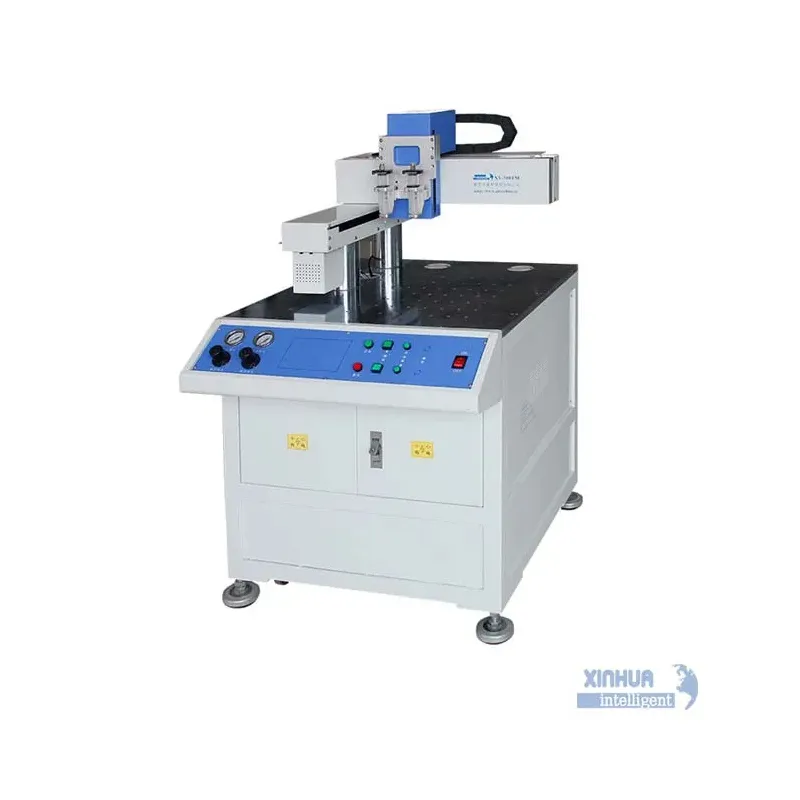

| Models | XY-300TM |
|---|---|
| Working range (mm) | X300*Y300*Z120(mm) |
| Maximum load | X/Y: 8kg; Z: 5KG |
| Moving speed | X/Y: ≤ 500mm/s; Z: ≤ 200mm/s |
| Motion accuracy | ±0.03mm |
| Motor system | Servo motor + ball screw / closed loop motor + linear guide rail drive |
| Dispensing method | Syringe / high precision dispensing valve outlet |
| Control system | Motion control card |
| Panel control | Position adjustment, micro advance, program selection |
| Control mode | Point to point, line to arc compensation |
| Programming mode | Teaching pendant / PC optional |
| Delimitable graph | Line, garden, arc; Continuous scribing; Drop, glue |
| Motion interpolation function | Any 3D route |
| Input power | AC220V 50-60Hz |
| Operating temperature | 10-40℃ |
| Operating humidity | 20-90% no condensation |
| Dimension W*D*H (mm) | W460*D600*H540mm (reference only) |
| Weight | around 50kg |
Why Manufacturers Choose Us
As a dedicated dispensing automation manufacturer, we provide complete customized solutions to overseas customers—especially in UAE, Saudi Arabia, Vietnam, Malaysia, Thailand, Turkey, Germany, and Eastern Europe.
Our engineering team provides:
- Free sample testing
- Online demonstrations
- Custom machine configuration
- Long-term technical support
- Spare parts supply worldwide
FAQs
1. Can this Industrial Glue Dispenser be customized?
Yes. We can modify working area, motion speed, dispensing valves, glue type, or integrate with your existing conveyor.
2. What glue types are supported?
Silicone, epoxy, UV, PU, solder paste, grease, thermal paste, and most industrial adhesives.
3. Do you offer vision positioning?
Yes. CCD and auto-focus systems are optional for high-precision tasks.
4. What is the delivery time?
Normally 10–15 working days depending on customization.
5. How do you ship?
By DHL/FedEx for samples; by air or sea for full machines. All machines are export-packaged.
6. What warranty do you offer?
12-month warranty with lifetime technical support.
