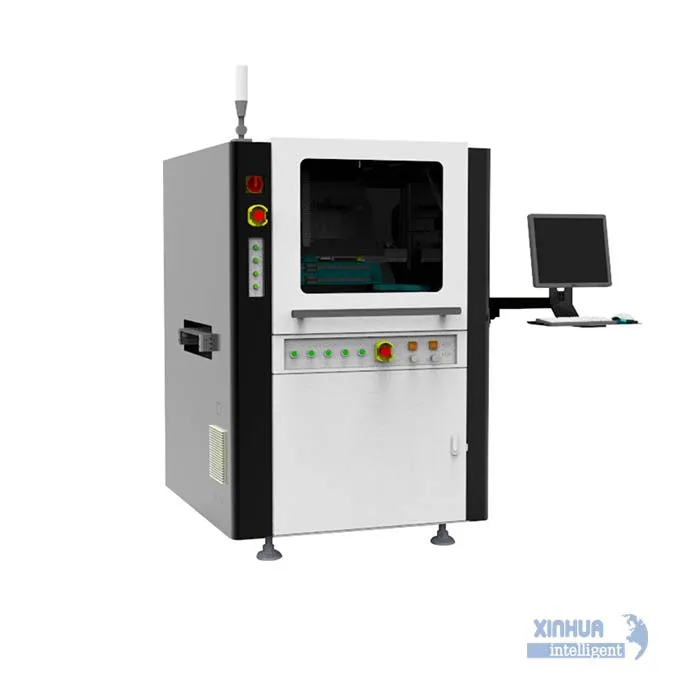

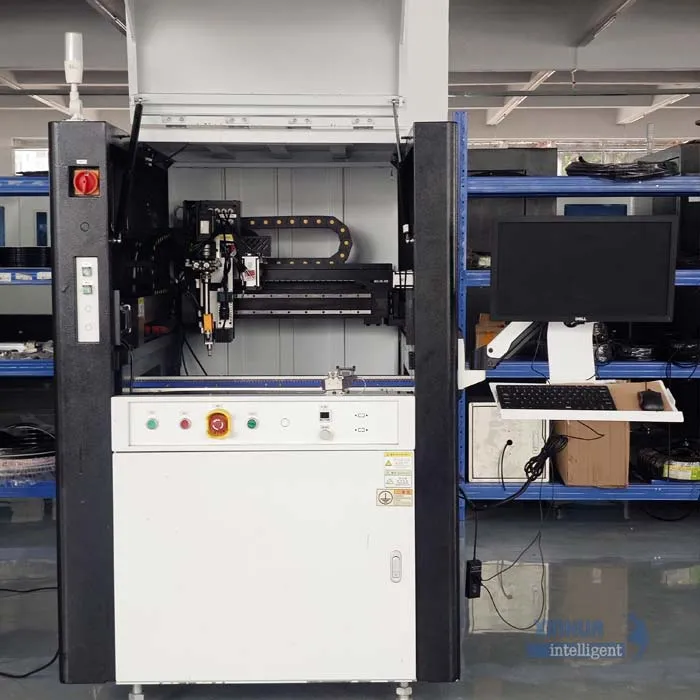

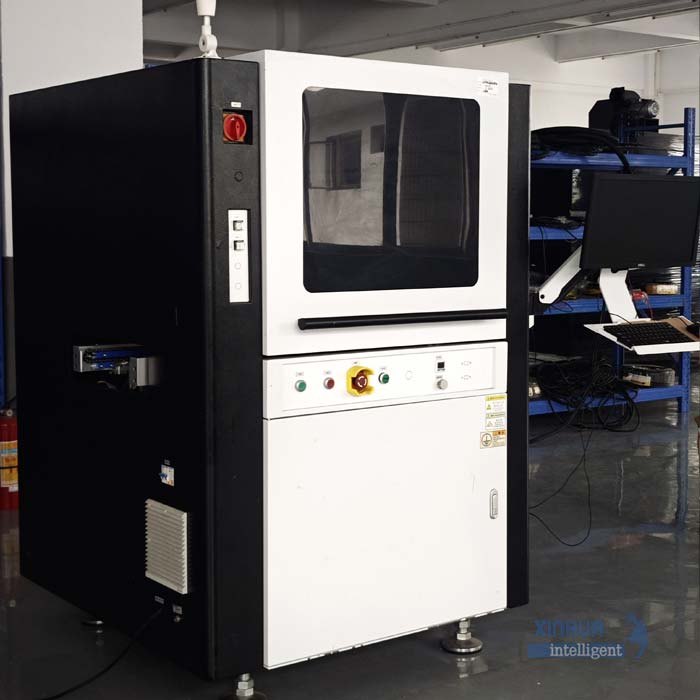

| Models | XY-G550 / XY-G1200 |
|---|---|
| Working area | X550*Y800*Z110mm / X1200*Y800*Z110mm |
| Maximum load | XY: 30KG; Z: 8KG |
| Moving speed | X/Y: 1000mm/s; Z: ≤500mm/s |
| Screen showing | PC |
| Analytical accuracy | ±0.01mm |
| Positioning mode | CCD visual positioning system |
| Automatic width adjustment range of conveying line | 100–450mm Automatic width adjustment |
| Transmission mode | Anti static belt |
| Incoming induction | Optical fiber / photoelectric |
| Overall structure | Square steel / aluminum profile structure |
| Motor System | Servo motor / linear motor |
| Transmission module | Linear module / ball screw |
| Dispensing method | High frequency piezoelectric valve / screw |
| Motion interpolation function | Any route in 3D stereoscopic space is possible |
| Height measurement function | Laser displacement device |
| Automatic weighing function | Accuracy ± 0.01mg |
| Automatic cleaning function | are provided |
| Edit mode | PC |
| Operating temperature | 10–40°C |
| Operating humidity | 20–90% no condensation |
| External interface | IO+USB |
| Power / energy consumption | AC220V 50–60Hz 2500W |
| Overall dimension | Approximately L1200*W1500*H1660mm / W1950*L1600*H1660 (size for reference only, subject to actual product) |
| Weight | About 1000kg / 2000kg |

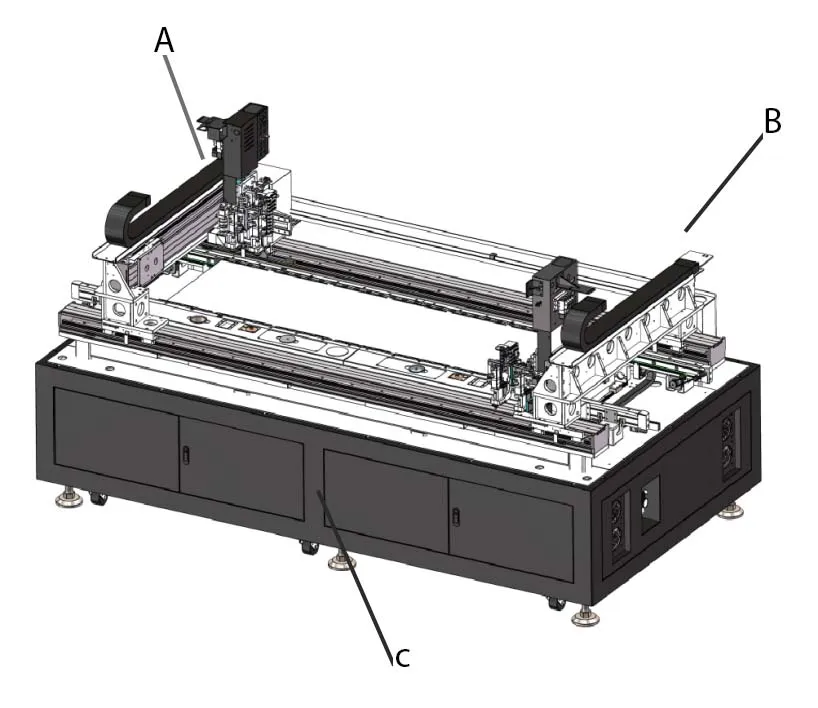

Dual Valves Asynchronous Function
A.The auxiliary valve supports asynchronous automatic calibration and adjustment. The Y-axis (valve width adjustment) allows spacing from 80 to 180 mm, the X-axis is adjustable by ±10 mm, and the Z-axis by ±50 mm.
B.CCD visual positioning+light source

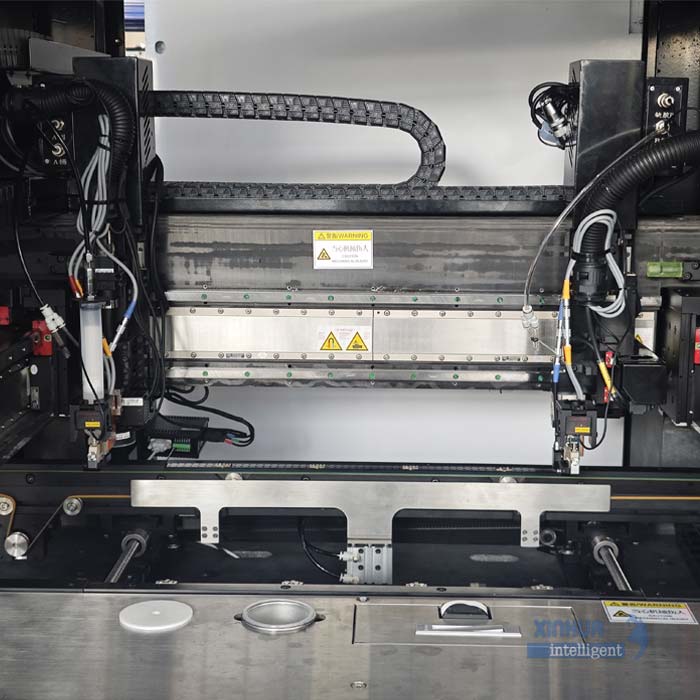

C.Equipped with dual piezoelectric jet valves, the system is compatible with various adhesive packaging types.
This automatic glue dispensing machine features an upgraded dual bent-needle vision auto-alignment system based on the original equipment. It performs real-time needle angle correction, significantly reducing needle collision issues and greatly minimizing downtime and programming time during line changes.
Point Template
Can easily confirm the relative position between the needle and the camera, i.e. camera needle calibration.
Height Detection and Needle Alignment Device
It is convenient to calibrate the relative positions of the needle in the XYZ directions. Height measurement module: equipped with laser height measurement technology to calculate dispensing height.
Clean Up Needle Waste Glue
Set the timing for cleaning the needle, automatically clean the needle residue without the need for manual wiping and cleaning.
Batching Out Unit
After replacing the glue, it is necessary to reduce bubbles by draining the glue, making this device convenient for receiving and cleaning.

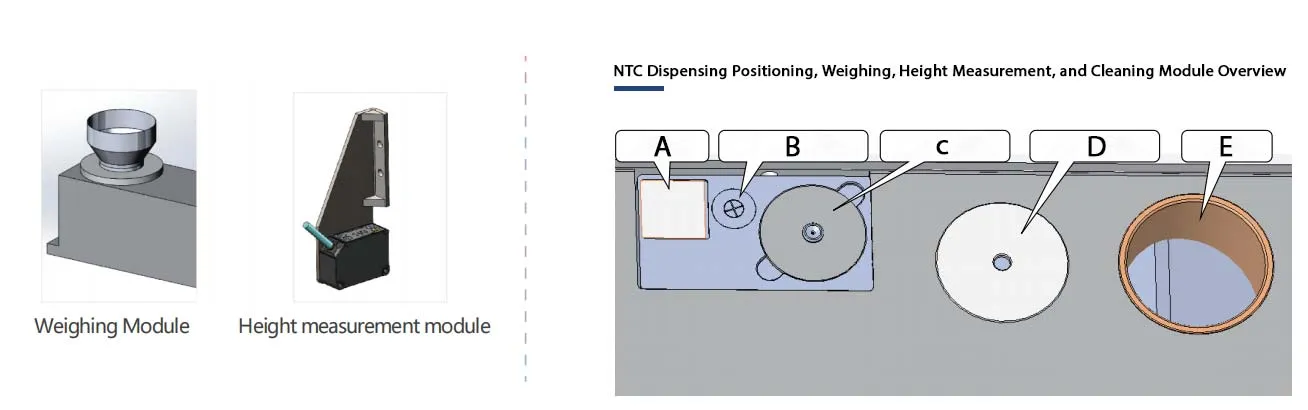

Weighing Scale
This automatic glue dispensing machine is equipped with a weighing scale,It is convenient to confirm the actual size of the glue output, and by selecting the weighing timing in automatic operation, abnormalities such as lack of glue, insufficient glue, and needle blockage can be detected in a timely manner.
