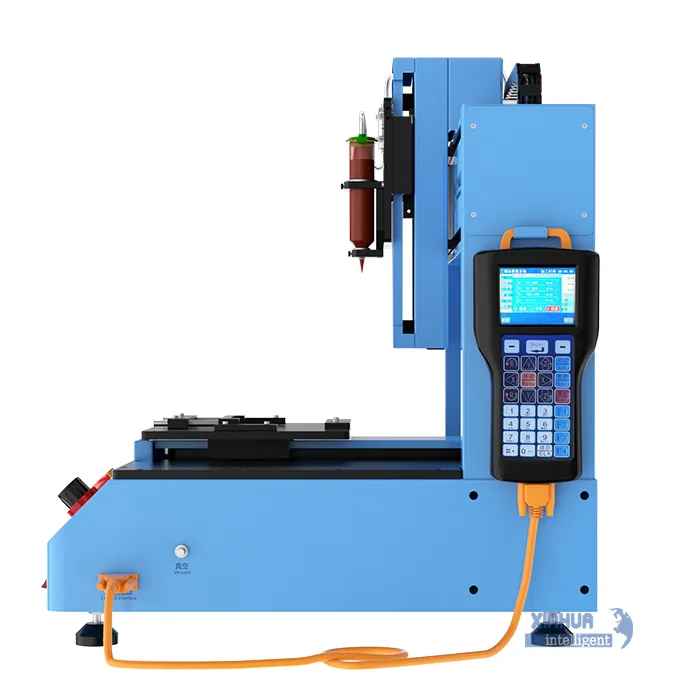

Desktop 3-Axis Automatic Glue Dispenser Machine with Single Station

Click to enlarge

Details:

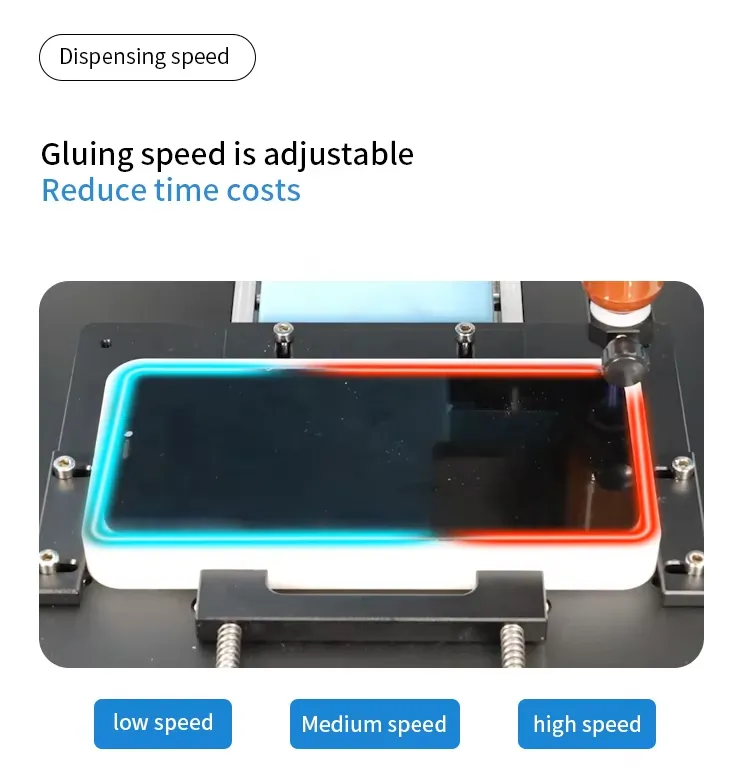

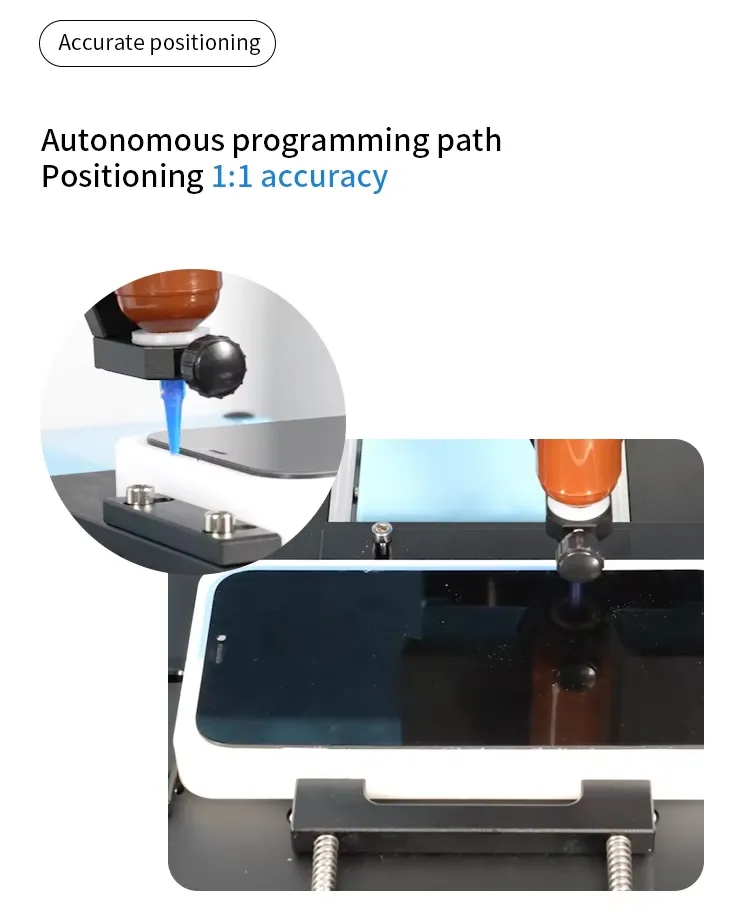

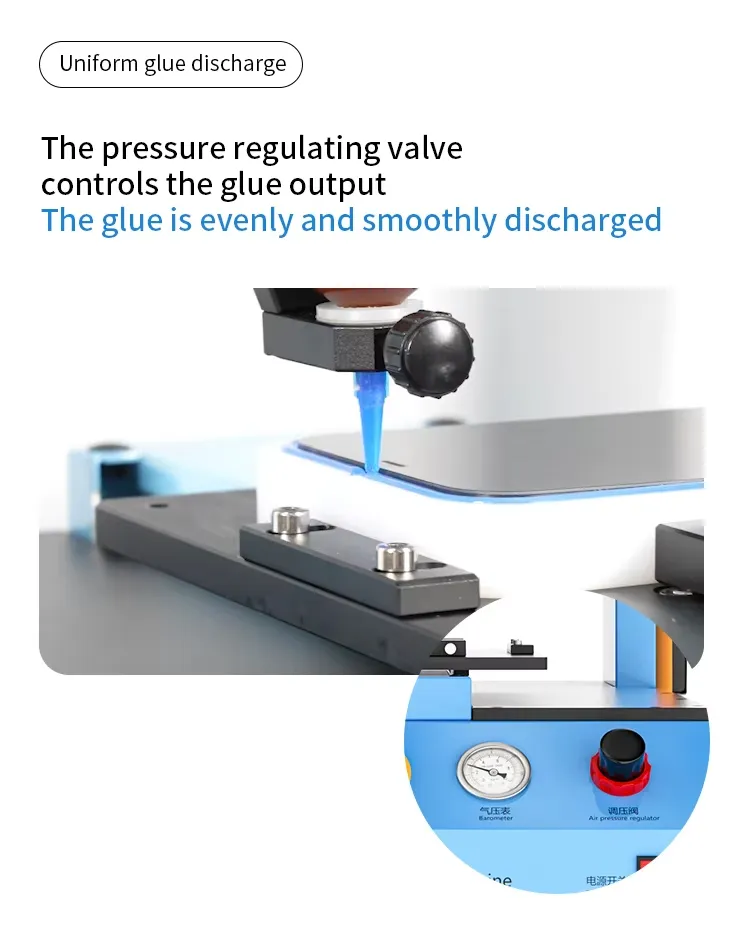

This benchtop 3-axis automatic glue dispenser machine is designed for precision glue dispensing tasks, featuring a programmable system with import teaching or graphics input. It supports multiple dispensing cylinder sizes from 3CC to 500CC and achieves a minimum discharge of 0.01ML with a frequency of 5 times/sec. The automatic glue dispenser machine offers high position accuracy (0.02mm) and repeatability accuracy (0.02mm), ensuring consistent performance. Equipped with Taiwan HIWIN guide rails and Italy Lartey synchronous belts, it delivers reliable operation with speeds up to 800/350mm/s. Customizable axis ranges and compact dimensions make it versatile for various industrial applications.

The 3-axis automatic glue dispenser machine comes with a 1-year warranty for both the machine and core components, supported by whole-life technical assistance.

Send Inquiry

Description

Send Inquiry

Brand	XINHUA	Model	XH-983B
Voltage	220V	External connection mode	RS232
Control system	Motion control card	Positioning accuracy	0.02mm
Drive mode	Stepping	Program capacity	1000 groups
Net weight	30kg	Gross weight	45kg
XYZ Stroke	200200100mm
Product size	500400560mm
Package size	570440640mm
Control system	Motion control card or single chip microcomputer

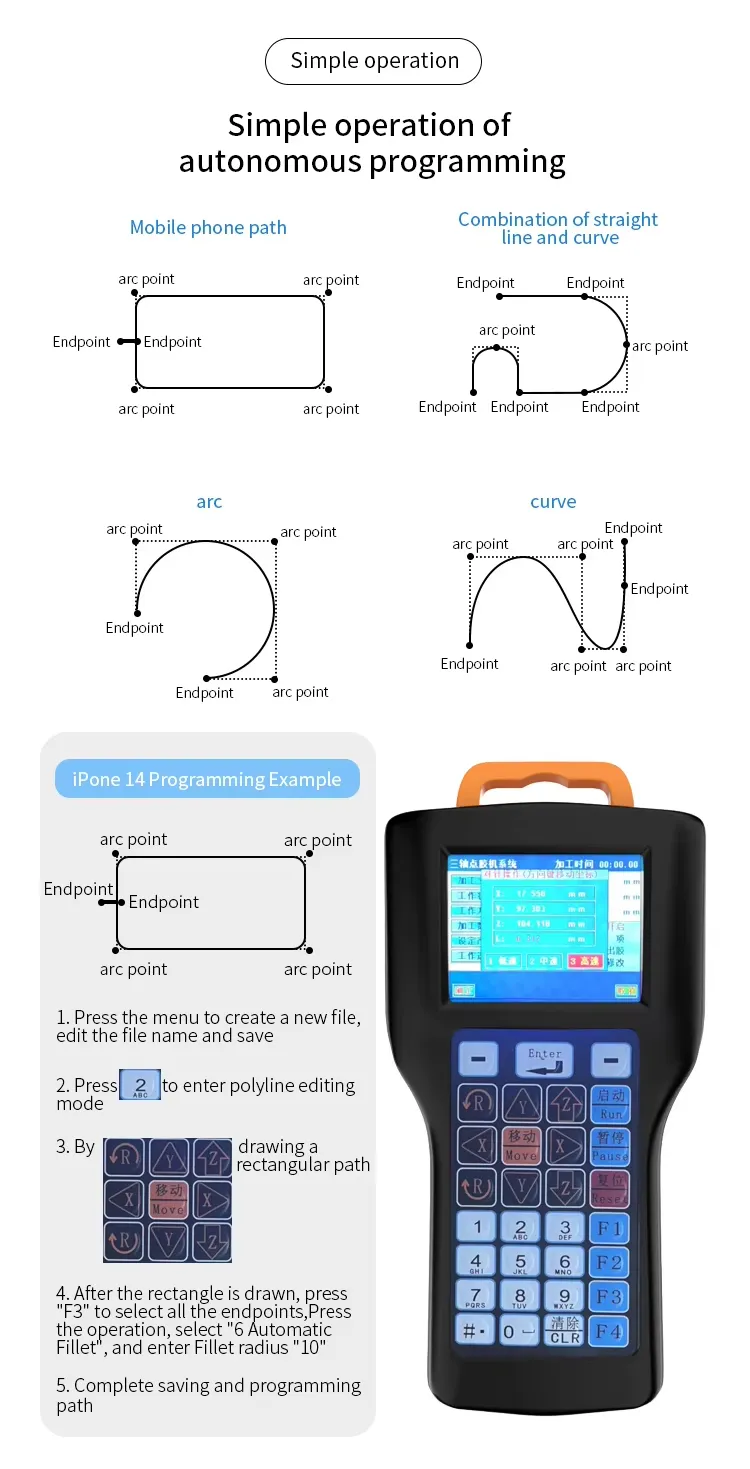

Pointable trajectory	Point, line, circle, arc, continuous line segment
