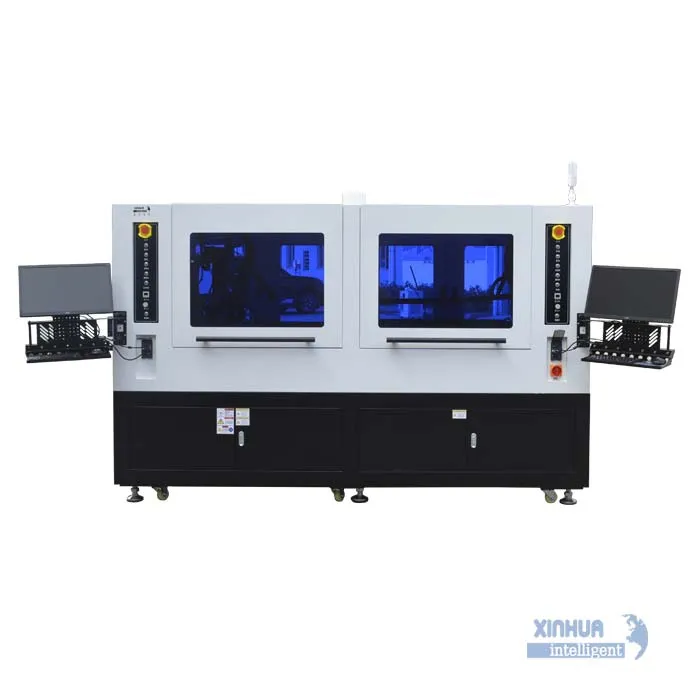

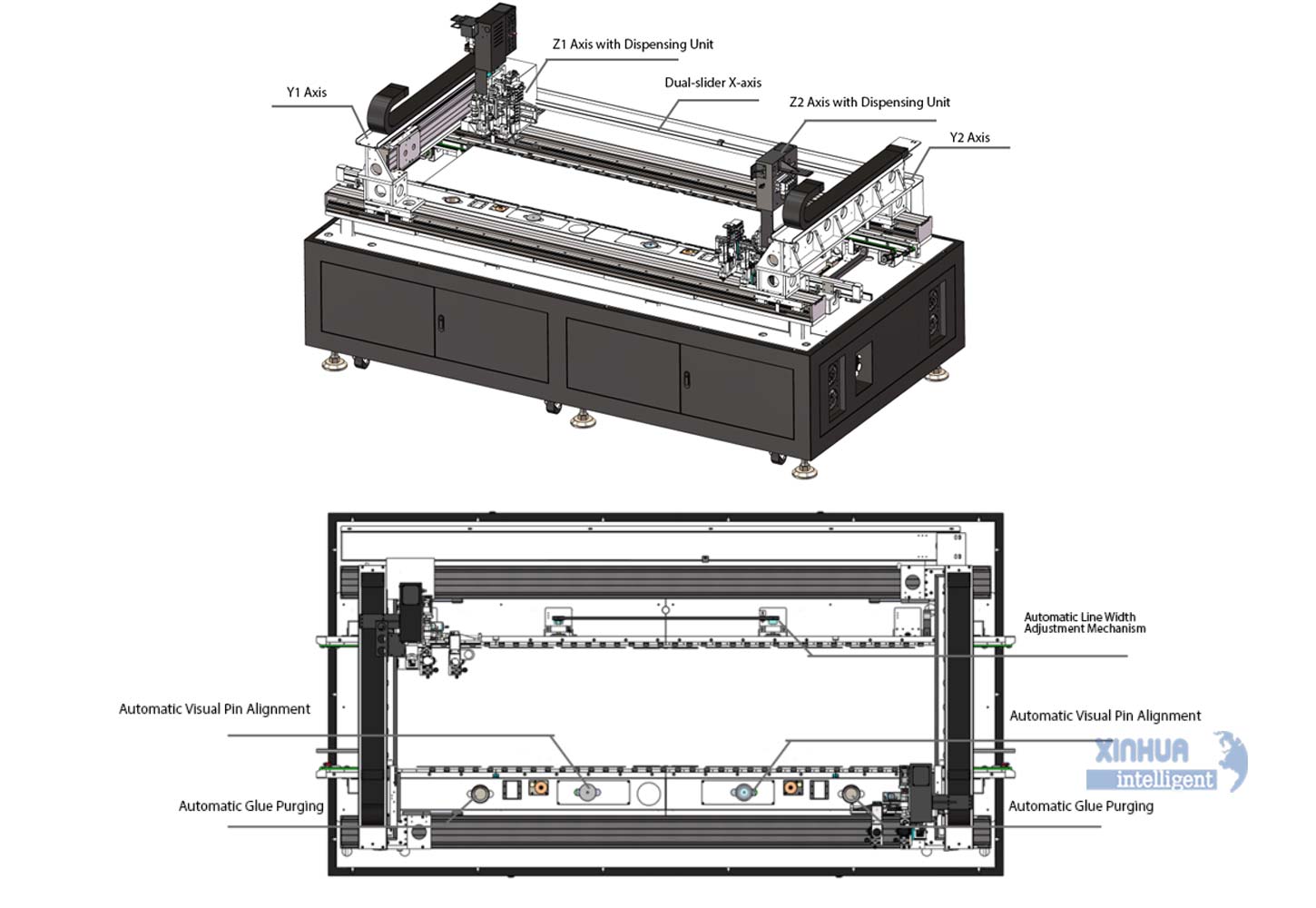

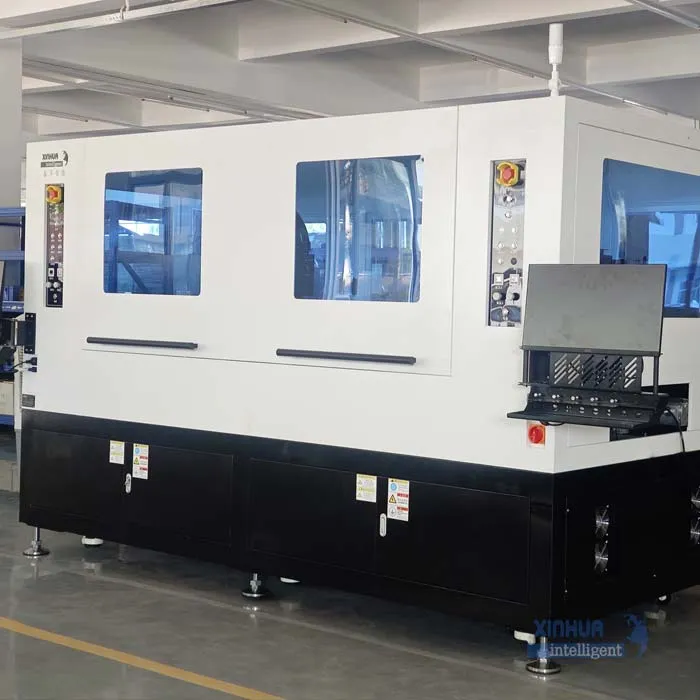

| XY-E2500PS-Z Dual-Module Auto Glue Dispenser (Pneumatic Valve) | |
|---|---|
| Model | XY-E2500PS-Z |
| Effective Travel | X2500*Y500*Z120mm |
| Maximum Load | X/Y: 30kg; Z: 10kg |
| Moving Speed | X/Y: ≤800mm/s; Z: ≤200mm/s |
| Display | 17" Dell monitor |
| Positioning Accuracy | ±0.03mm |
| Positioning Method | CCD Visual Positioning |
| Track Load/Speed | 10KG, 0~15M/min |
| Conveyor Auto Width Range | 100~500mm |
| Transmission Method | Belt Conveyor |
| Running Direction | Left-Right, Right-Left |
| Material Detection | Fiber Optic/Electric |
| Frame Structure | Square Welded Structure |
| Motor System | Direct-drive Servo Motor |
| Drive Mode | TBI/HIWIN ball screw + linear guide rail |
| Dispensing Method |
4 Pneumatic Valves Equipped with dual-valve asynchronous dispensing; secondary valve mini Z-axis (motor-driven) adjustable independently |
| Glue Weight | 900g / 300g / 50g |
| Applicable for Glue Pack | Yes |
| Measurement Function | Yes |
| Auto Calibration | Yes |
| Auto Cleaning | Yes |
| Auto Height Measurement | Yes |
| Motion Path Function | 3D spatial arbitrary path |
| Editing Mode | PC |
| Control Computer | Intel i5/256 SSD/4×USB, 1×HDMI, 1×VGA, 1×AUDIO, 2×COM, 2×Ethernet ports |
| External I/O | IO |
| Communication | Supports mes open communication ports; data readable by clients |
| Power Supply | AC220V 50~60Hz |
| Working Temperature | 10–40°C |
| Working Humidity | 20–90% no condensation |
| Machine Dimensions | W3300×L1350×H1800mm (for reference only; subject to actual unit) |
| Weight | Approx. 2750kg |

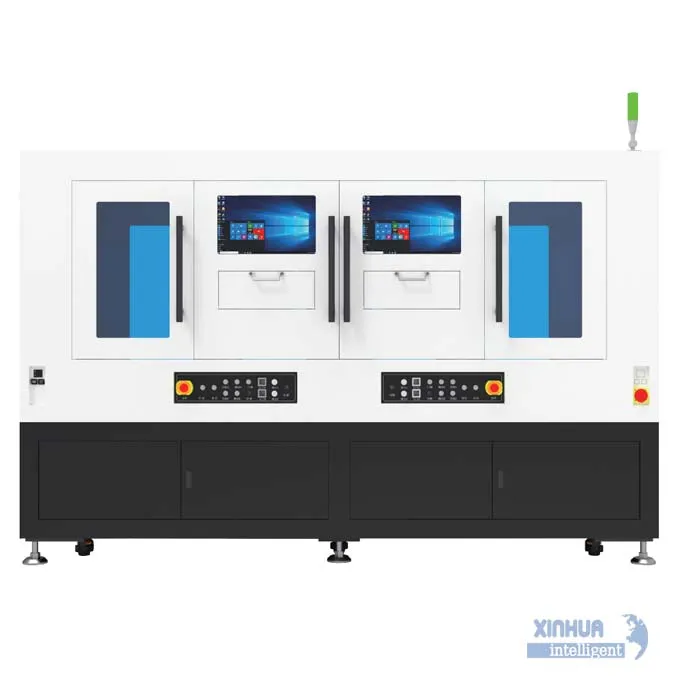

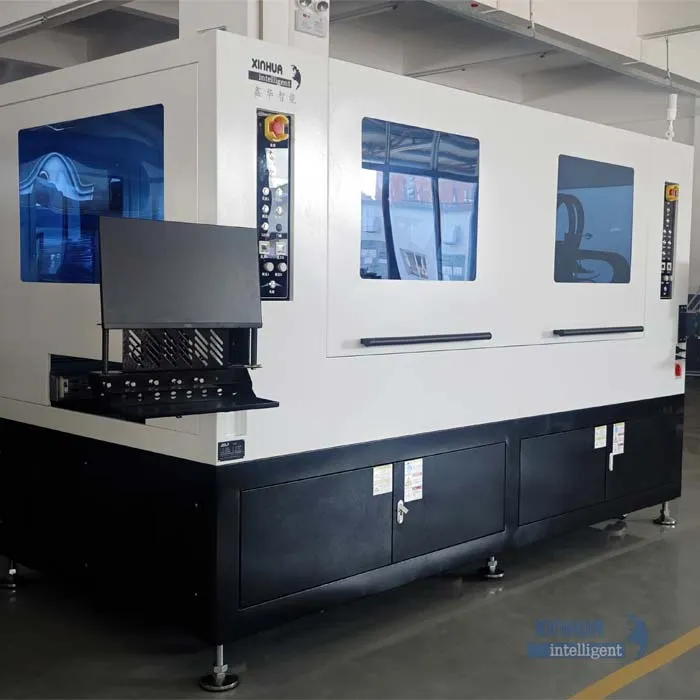

| XY-E2500L-S Dual-Module Auto Glue Dispenser (Screw Dispensing Valve) | |
|---|---|
| Model | XY-E2500L-S |
| Effective Stroke | X2500 × Y500 × Z120mm |
| Maximum Load | X/Y: 30kg; Z: 10kg |
| Moving Speed | X/Y: ≤800mm/s; Z: ≤200mm/s |
| Display Mode | 17 inch or larger monitor |
| Positioning Accuracy | ±0.03mm |
| Positioning Mode | CCD visual positioning |
| Track Load & Speed | 10KG, 0~15m/min |
| Automatic Conveyor Adjustment Range | 100*500mm |
| Transmission Mode | Belt conveyor |
| Operating Direction | Left–Right, Right–Left |
| Material Sensing | Fiber optic / electric |
| Main Structure | Square steel welded structure |
| Drive System | Direct motor + reduction motor + driver |
| Motion Guide | TBI/HIWIN ball screw + linear guide rail |
| Dispensing Valves | 4 high-precision screw valves |
| Dual Valve System | Dual valve offset, subvalve with micro motor (electrically driven), independently adjustable height |
| Glue Output | 900g / 300g / 50g |
| Glue Type Compatibility | Yes |
| Height Measurement | Yes |
| Automatic Refill | Yes |
| Auto Cleaning | Yes |
| Auto Capping | Yes |
| Motion Insertion | 3D space interpolation supported |
| Control Mode | PC |
| Computer Configuration | Intel i5/256GB SSD, 4×USB, 1×HDMI, 1×VGA, 1×AUDIO, 2×COM, 2×Ethernet |
| External Interface | IO |
| Communication Requirement | Open mes communication terminal, provides data reading interface |
| Power Supply | AC220V 50–60Hz |
| Operating Temperature | 10–40°C |
| Operating Humidity | 20–90%, no condensation |
| External Dimensions | W3300 × L1350 × H1800mm (for reference only, actual product may vary) |
| Weight | Approx. 2750kg |
Comparison of Electric Motor-Driven and Pneumatic Actuation for Auxiliary Valves
| Sub Valve Z-axis Motor Drive | Sub Valve Z-axis Pneumatic Drive | |
|---|---|---|
| Advantages |
1. With motor-driven Z-axis, it supports height measurement function to enable automatic compensation of sub valve Z-axis. 2. Sub valve height can be adjusted automatically. 3. No placement constraints on fixture layout / dual PCS product handling. |
1. Lower cost. 2. Lower technical difficulty. |
| Disadvantages | 1. Higher cost. |
1. Shorter lifespan compared to motor drive. 2. Poorer stability over long-term use. 3. Air compressibility affects pneumatic speed and load response easily. |
