The CCD system can identify products placed randomly on the fixture and can perform dotting, drawing, S-shapes, circles, and other dispensing patterns. It can automatically identify defective products or products that do not require dispensing. At the same time, it is equipped for long-duration dispensing with high efficiency and fast speed, saving labor costs.

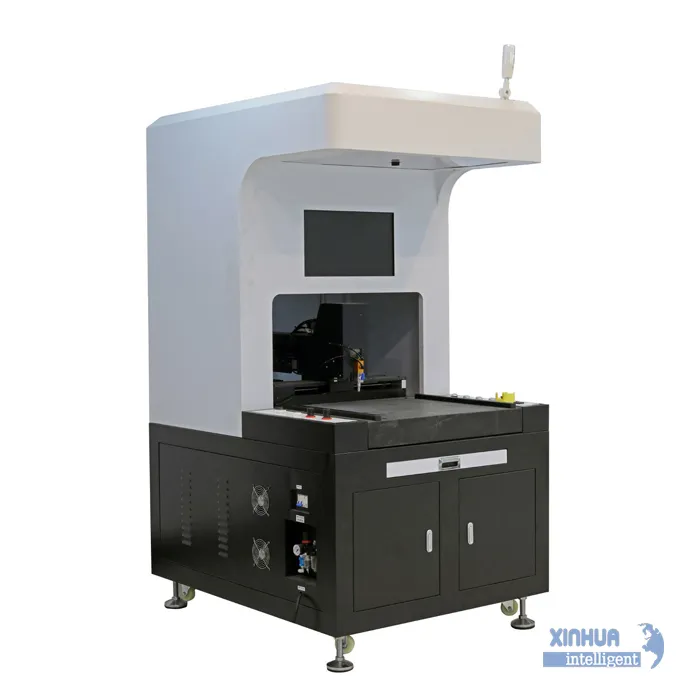

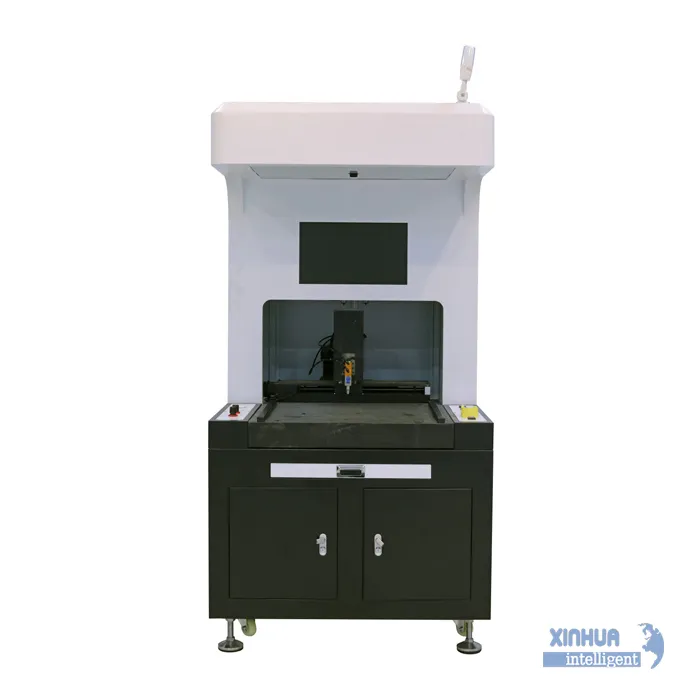

The visual glue dispensing machine can dispense small amounts of glue in narrow gaps with high precision, achieving operations that cannot be completed manually. The equipment is divided into two-station automatic dispensing and can operate 24 hours a day, greatly increasing production efficiency.

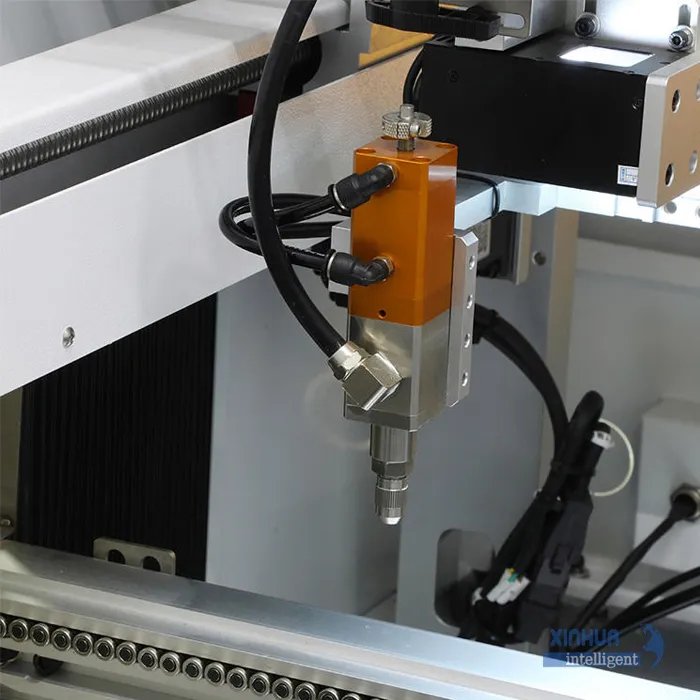

It can be equipped with a high-speed dispensing valve and dot-injection valve system. Without the need for precision fixtures, products placed on the work surface can be scanned and captured automatically. The visual system then starts the dispensing process automatically. It can also automatically identify non-conforming or unnecessary dispensing products, reducing production costs.
| Models | XY-QE400 |
|---|---|
| Working area (X*Y*Z*R mm) | X400*Y400*Z120mm |
| Moving speed (mm/s) | X/Y axis ≤ 500mm/s, Z axis ≤ 300mm/s |
| Repeatability | ±0.015mm |
| Operation mode | PC |
| Drive mode | Servo motor + ball screw |
| Fixture | Some do not need fixture |
| Air pressure | 0.4~0.8Mpa |
| Full-voltage | 1.5KW AC 220V 50/60HZ |
| Operating temperature | 10~40°C |
| Operating humidity | 20~90% no condensation |
| Dimension (W*D*H mm) | W850mm*L800mm*H1700mm (reference only) |
| Weight | Around 500kg |
| Daily maintenance | W1100*L900*H1600 (reference only) |
Applicable Adhesives:
UV glue, AB glue, silicone, fluorescent powder, Epoxy (black glue), white glue, EMI conductive adhesive, epoxy resin, instant adhesive, silver paste, red glue, solder paste, thermal grease, anti-moisture paste, transparent varnish, thread locker, etc.

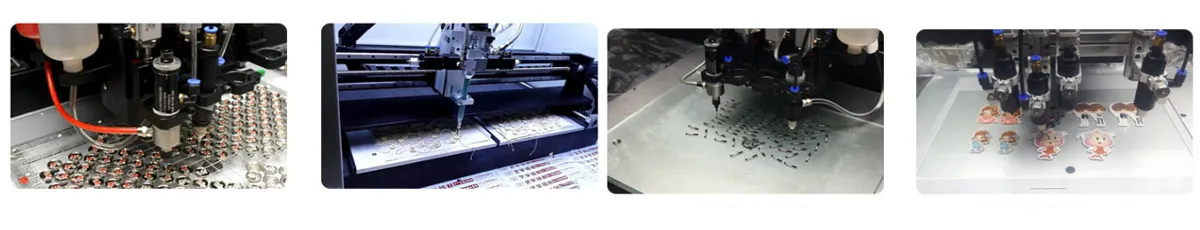

Application:
Widely used in various crafts and service industries including:
craft stickers, patches, labels, garment embellishments, buttons, socks, LED lamp posts, phone cases, smart cards, nameplates, power batteries, logos, lingerie buckles, pendants, and more.
It is also applicable to products such as mobile phone keypads, audio equipment, speakers, buzzers, PCB circuit boards, adapters, intercom devices, fax machines, MP3/MP4 players, earphones, connectors, switches, cables, electronic components, integrated circuits, digital cameras, computers, mobile phone casings, relays, and batteries.
Customized solutions can be provided to meet specific customer requirements.
