Benchtop Automatic 5-Aixs CNC Glue Dispenser Machine with CCD Visual

Click to enlarge

Details:

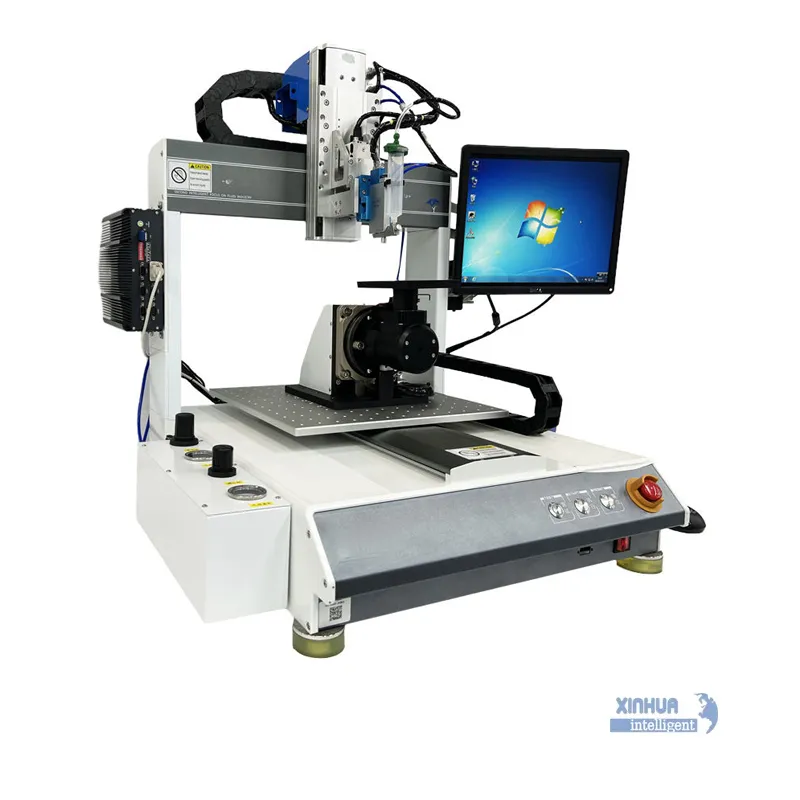

This benchtop automatic 5-aixs cnc glue dispenser machine is designed for high-precision epoxy resin and silicone adhesive dispensing. It features a one-piece die-casting aluminum body for durability, a user-friendly teaching pendant, and PC control with CCD industrial camera for precise positioning. The glue dispenser machine operates at a max speed of 500mm/sec (XY) and offers ±0.015mm XYZ position accuracy, making it ideal for industries like PCB, LED, automotive electronics, and more.

Features:

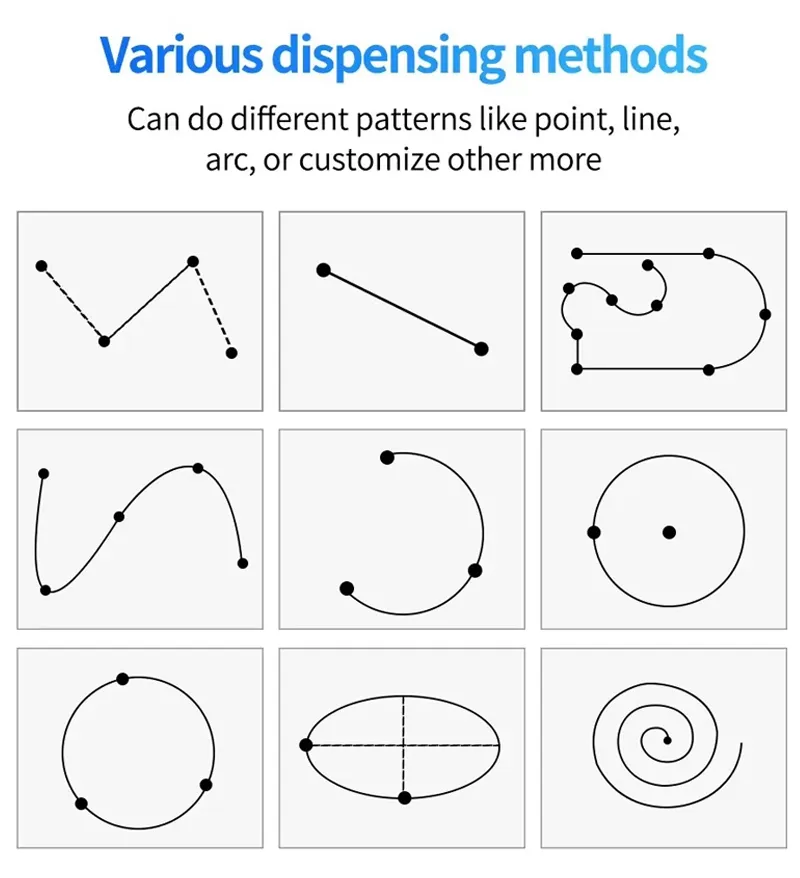

1.5-axis motion control, enabling complex multi-angle dispensing for irregular surfaces and three-dimensional parts and supports various trajectory types such as points, lines, arcs, and complex curves.
2.PC control with CCD industrial camera, more accurate positioning and easy to programming, user-friendly self-developed dispensing
software.

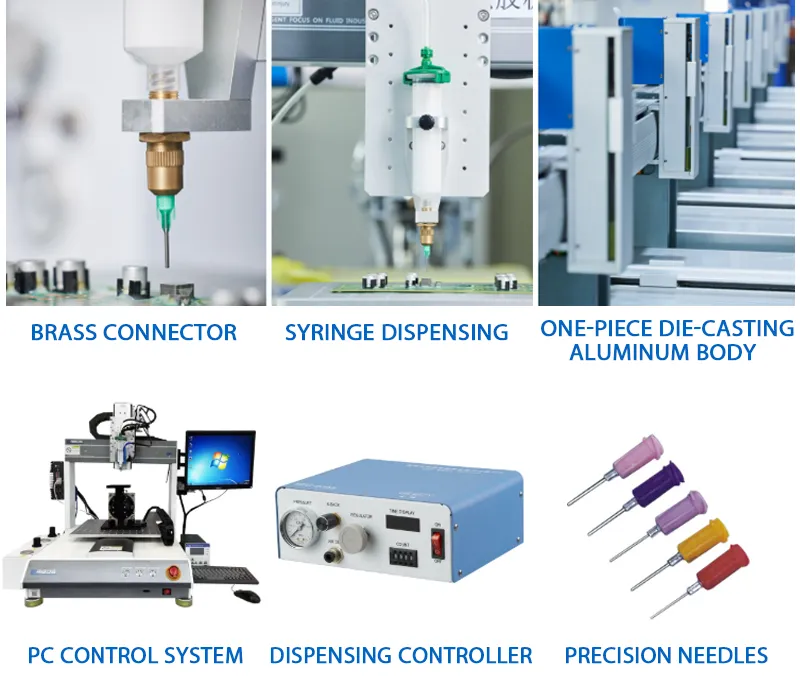

3.Compact benchtop design,one-piece die-casting aluminum body lighter in weigh,the structure is more stable and durable.
4.User friendly teaching pendant.
5.Equipped with brass connector, has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.

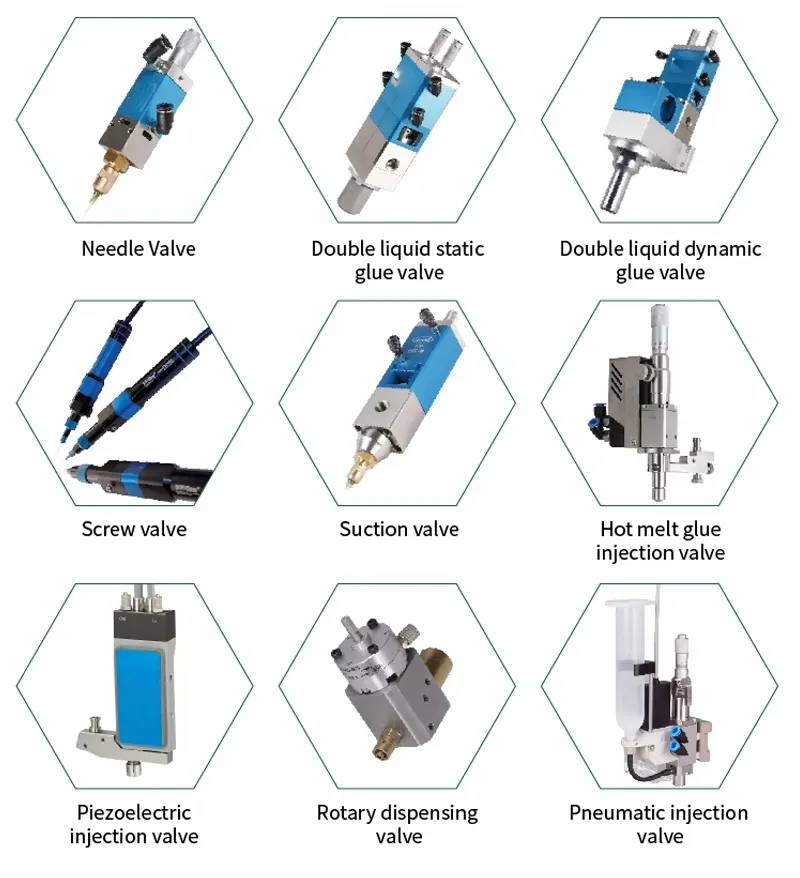

6. Can be equipped with different glue supply systems
7.Suit for hot melt glue, epoxy glue,SMT glue, AB glue, PVC glue , UV-curing adhesives, and other.

Send Inquiry

Description

Send Inquiry

Model	XH-380	XH-480	XH-580
Working range	380 (X) × 380 (Y) × 100 (Z) mm	480 (X) × 480 (Y) × 100 (Z) mm	580 (X) × 480 (Y) × 100 (Z) mm
Max payload	20 kg (Y) / 15 kg (Z)
Max travel speed	500 mm/sec (X/Y) / 200 mm/sec (Z)
Driven mode	Servo motor, Ball-screw
XYZ position accuracy	±0.015 mm
Resolution	0.01 mm
Memory storage	120 GB
Operating method	Windows
Motor	Servo motor, Ball-screw
Movement patterns	3-axis spot-to-spot, continuous line, arc
I/O	1 input, 4 outputs (support expansion)
Power supply	AC 220V, 50/60 Hz, 1 KW
Working environment	Temperature: 0 ~ 40 ℃; Humidity: 20% ~ 90%
Weight	Approx 48 kg	Approx 60 kg	Approx 75 kg
Machine dimension	520 × 583 × 645 mm	620 × 683 × 645 mm	720 × 783 × 645 mm
