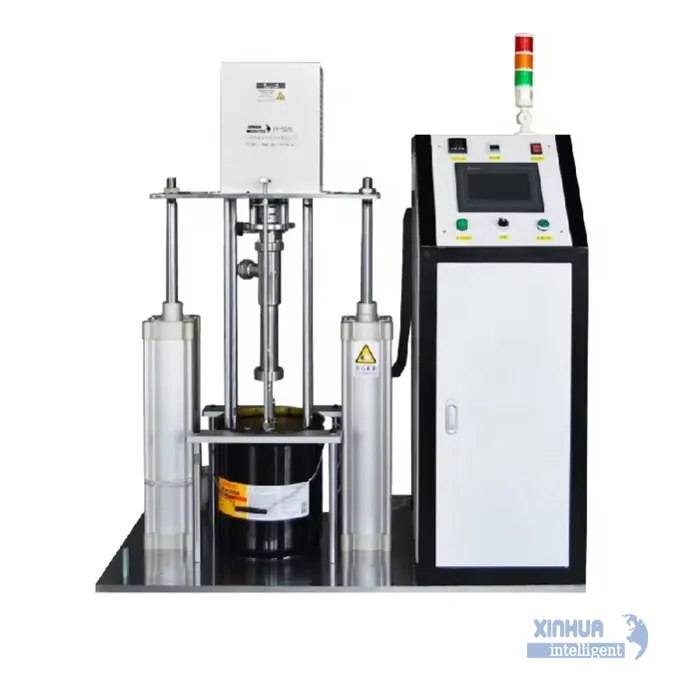

5 Gallon Adhesive Supply Pump - XY-5GAL

Click to enlarge

Details:

The motor + screw pump + cylinder works together to provide stable fluid pressure. The pressure of the cylinder to the glue for a long time can timely fill the cavity caused by the glue absorbed by the screw pump, ensure the stability of adhesive supply, and provide additional pressure supply when the screw pump acts.

Key Features:
Material Compatibility: Suitable for epoxy, polyurethane, silicone,UV glue and other high-viscosity fluids.
High Viscosity Handling: Equipped with high-torque pneumatic or hydraulic drive to handle thick adhesives without cavitation.
Closed System: Reduces air exposure to prevent contamination, curing, or bubbling.
Pressure Regulated: Consistent and adjustable pressure output for stable fluid supply.
Integrated Agitator (Optional): Keeps material homogeneous during feeding.
Low-Level Sensor (Optional): Alerts when the drum is nearly empty.

Send Inquiry

Description

Send Inquiry

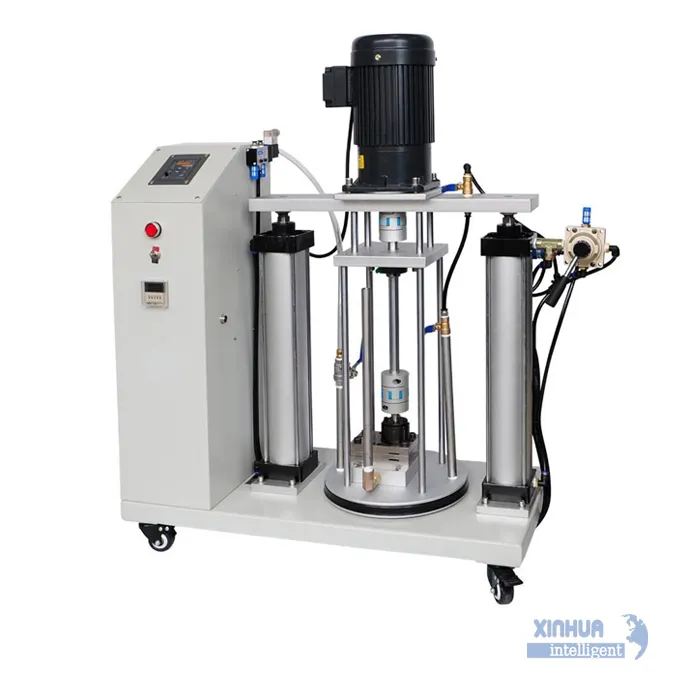

The 5 gallon adhesive supply pump is an industrial pump system designed to transfer adhesives, sealants, or viscous materials directly from standard 5-gallon (approx. 20-liter) pails to downstream dispensing or metering systems. It is commonly used in automated potting, bonding, and sealing applications across industries such as electronics,lamp, automotive, and construction.

Glue supply mode		Stepping motor + precision metering pump
Barrel volume	5 gallons
Pressure plate size	¢280mm ±3mm (customizable)
Output line	1-way (or 2-way)
Glue outlet control	High precision dispensing valve
Dispensing accuracy	±3%
Material shortage alarm	provided
High pressure pipe length	3.5m (customizable)
Full-voltage	220V 50HZ 200W
Overall dimension	13904501615mm
Weight	230kg
