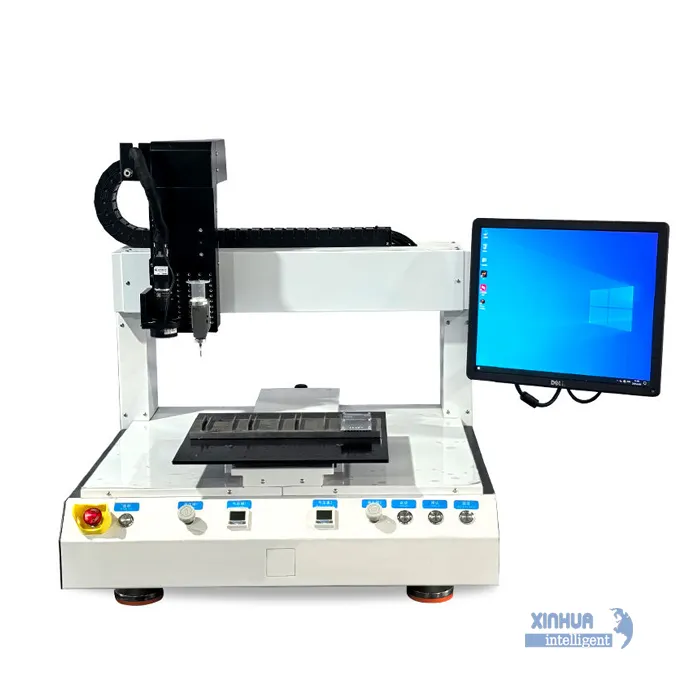

3/4/5 Axis Benchtop CCD Visual Glue Dispensing Machines

Click to enlarge

Details:

This benchtop CCD visual glue dispensing machines (3,4,5 Axis optional) is designed for industrial use, offering high precision and automatic operation.Achieve rapid, non-contact dispensing with micron-level accuracy for delicate electronics and micro-assembly applications.

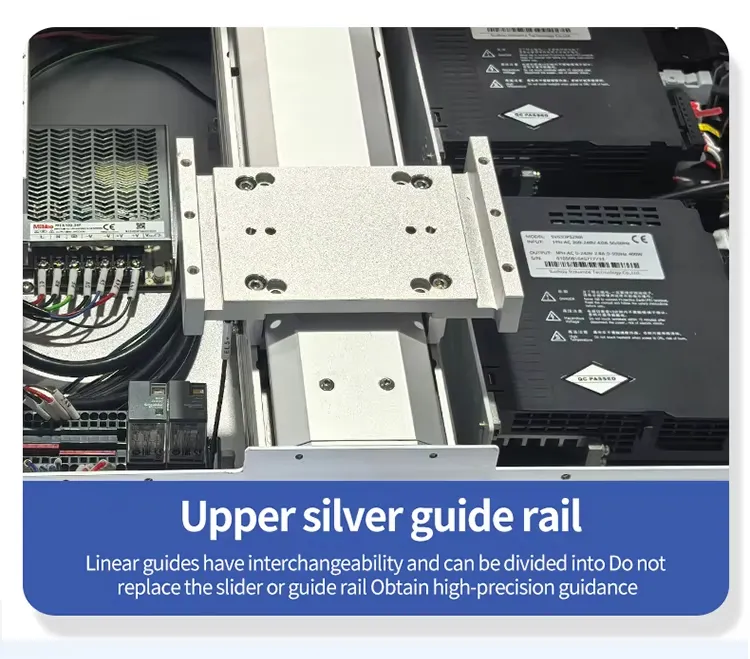

The glue dispensing machines built with high-rigidity aluminum alloy structure, Taiwan HIWIN precision linear guide rails, and servo motor drive system, ensuring smooth motion and long-term durability.

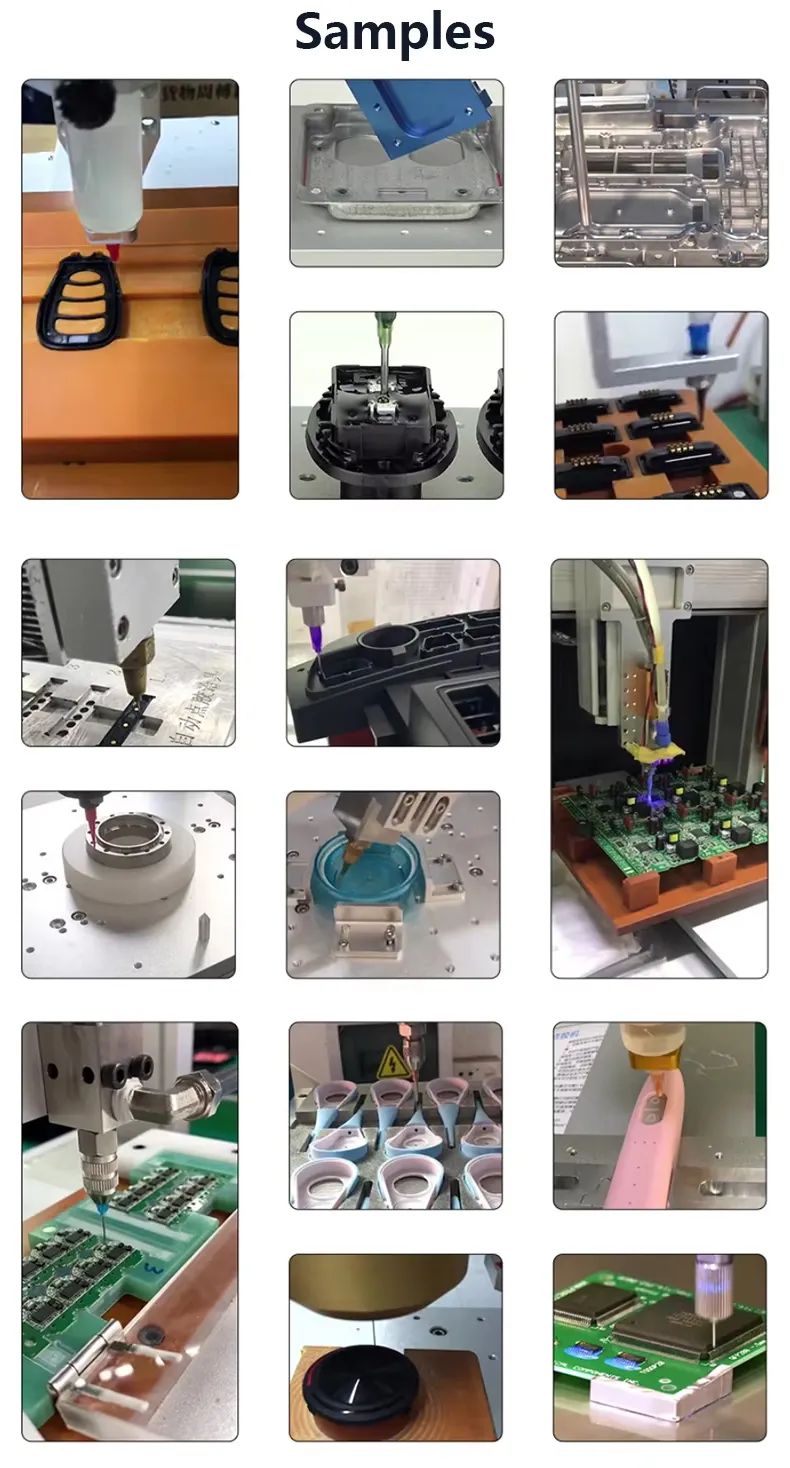

The glue dispensing machines is suitable for dispensing of all kinds of electronic products, such as earphone, audio point yellow glue, PCB point silica gel, red glue, UV glue dispensing, household appliances, terminal.

Characteristics

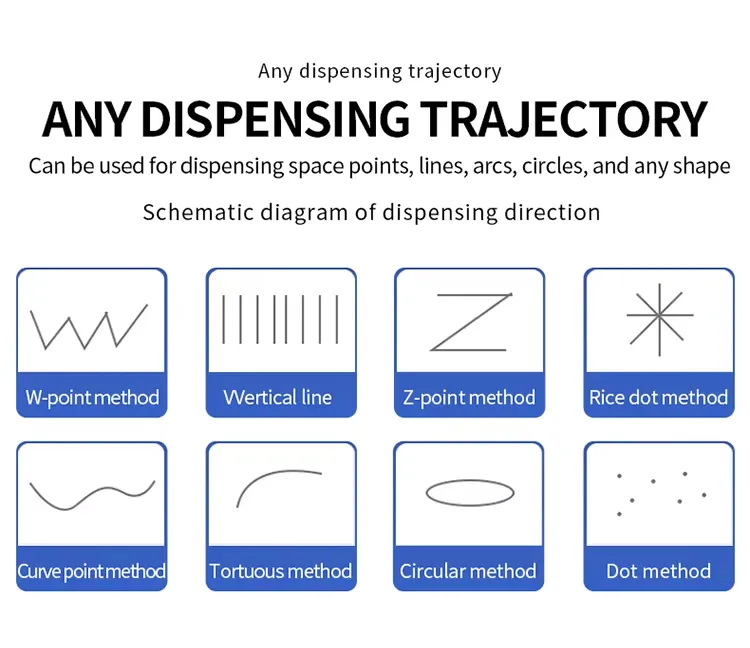

★ With drawing points, lines, faces, arcs, irregular paths

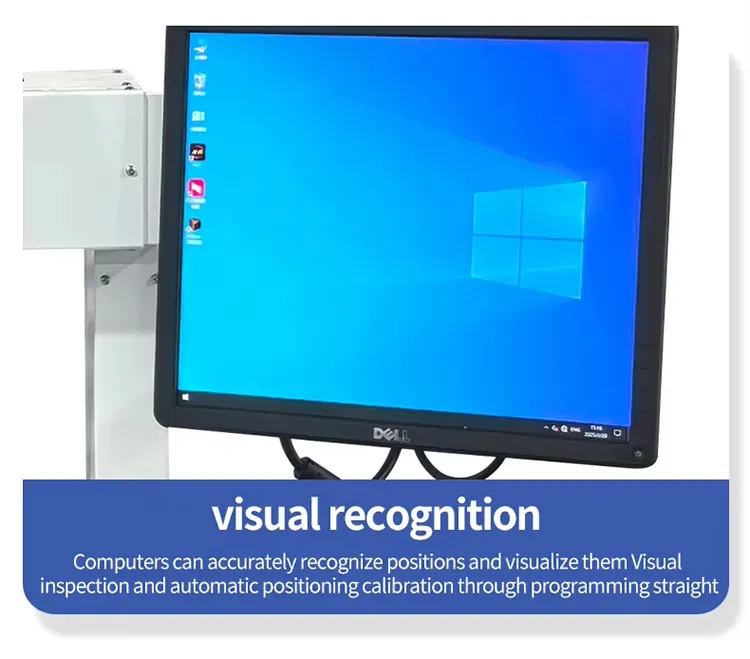

★ Visual positioning accuracy, high-precision visual recognition system.
★ The size, thickness, dispensing speed, time and stop time of glue can be set.

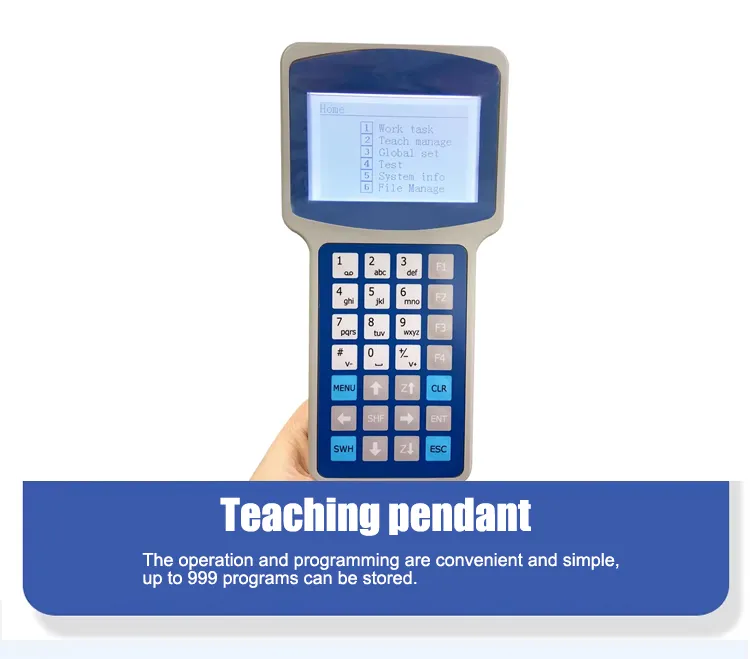

★ It can store multiple groups of programs, which can be called at any time when necessary.
★ Universal fixture can be used for dispensing of various products.
★ 3,4,5 axis options.

Send Inquiry

Description

Send Inquiry

Equipment Model	Single-head single-Y automatic visual dispensing machine	Double-head dual-position automatic visual dispensing machine	Customized Automatic Visual Dispensing Machine
Photoelectric	Japan Omron	Japan Omron	Japan Omron
Movable Graphic Trajectory	Point, line, arc, polyline, helix, ellipse, circle	Point, line, arc, polyline, helix, ellipse, circle	Point, line, arc, polyline, helix, ellipse, circle
Minimum Glue Output	0.01ML	0.01ML	0.01ML
Driver	RACE / YANKER / SERVO	RACE / YANKER / SERVO	RACE / YANKER / SERVO
Rubber Dispensing Frequency	10 times/sec	10 times/sec	10 times/sec
Motor System	Japan's Niigata Motor / Rexroth / Panasonic / Servo	Japan's Niigata Motor / Rexroth / Panasonic / Servo	Japan's Niigata Motor / Rexroth / Panasonic / Servo
Program Recording Mode	999 sets	999 sets	999 sets
Guide Rail	Taiwan Shangyin	Taiwan Shangyin	Taiwan Shangyin
Belt	Italian Elatech Synchronous Belt	Italian Elatech Synchronous Belt	Italian Elatech Synchronous Belt
