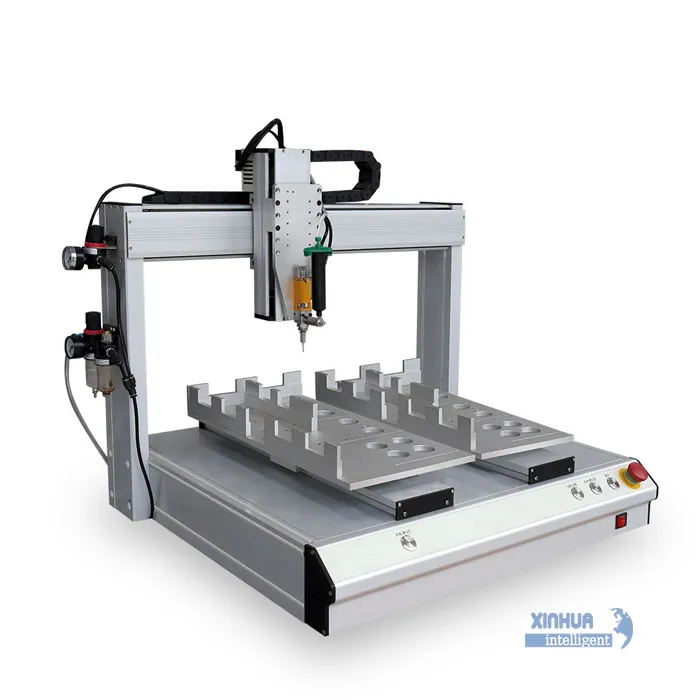

Benchtop 4 Axis SMT Glue Dispenser Machine with Dual Station

Click to enlarge

Details:

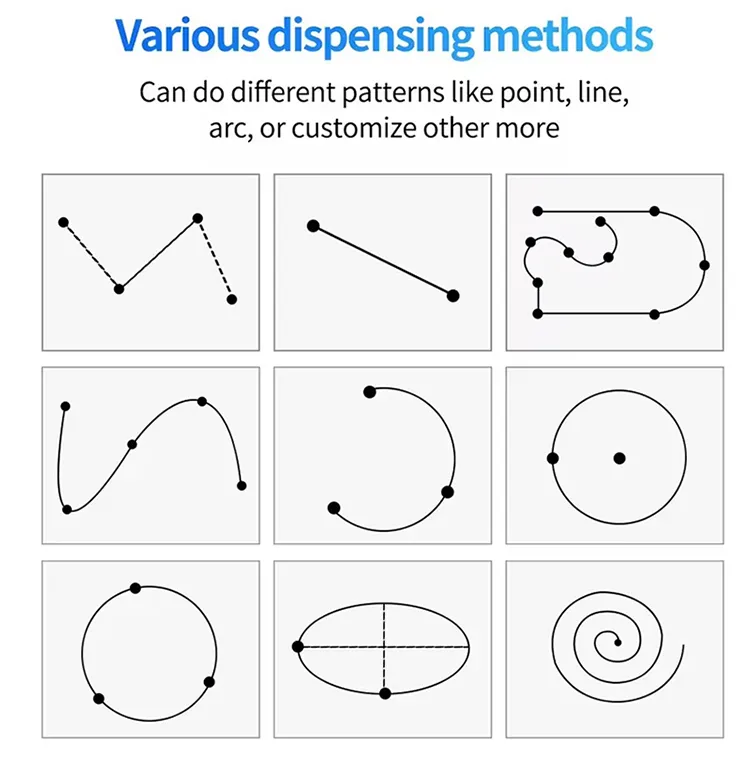

The benchtop 4 axis SMT glue dispenser machine offers precise control with a repeat accuracy of ±0.02mm and a dispensing frequency of 300 times/second. It supports versatile movable graphic trajectories including points, lines, arcs, and more.Ues dual station design. With a compact desktop design and customizable solutions available, it is ideal for industrial applications. The product comes with a 1-year warranty for the unit machine and a 3-year warranty for the main board, ensuring long-term reliability.

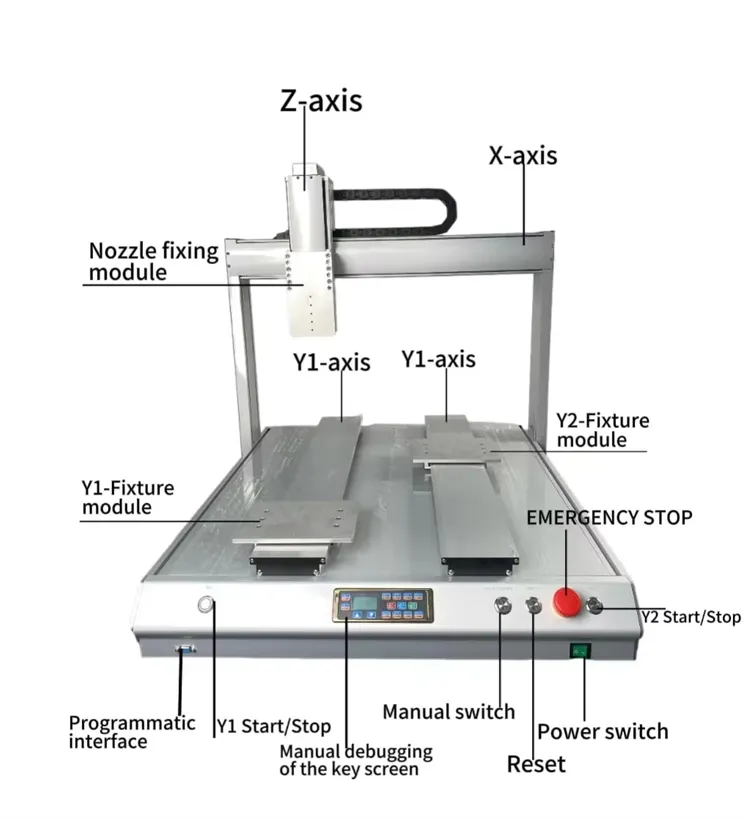

■ The SMT glue dispenser machine has double platform efficiency and high precision
■ Instructional programming method, programming is simple and convenient
■ Small equipment , easy to store
■ Easy to replace fixture
■ High precision, closed-loop stepper motor drive
■ The SMT glue dispenser machine can be equipped with:Pneumatic jetting nozzle,screw,nozzle,piezoelectric jetting nozzle.

Send Inquiry

Description

Send Inquiry

Model	XH-6620Z
Outline Size	L911 × W885 × H846 mm
Working Range	L600 × W600 × H200 mm
Drive Model	4 Axis Precision Stepping Driver
Movement Speed	800 mm/s
Position Accuracy	±0.01 mm

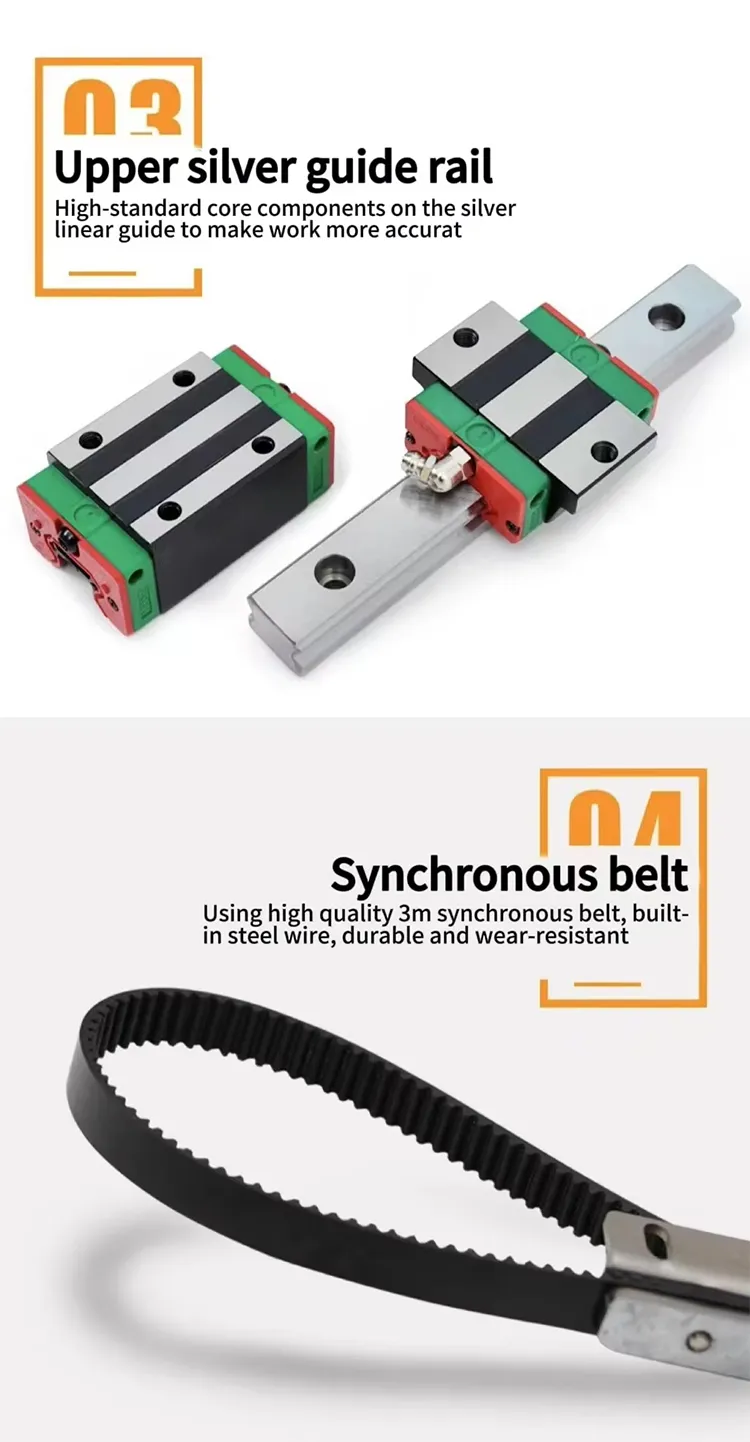

Movement Guide Rail	Import Slide Rail

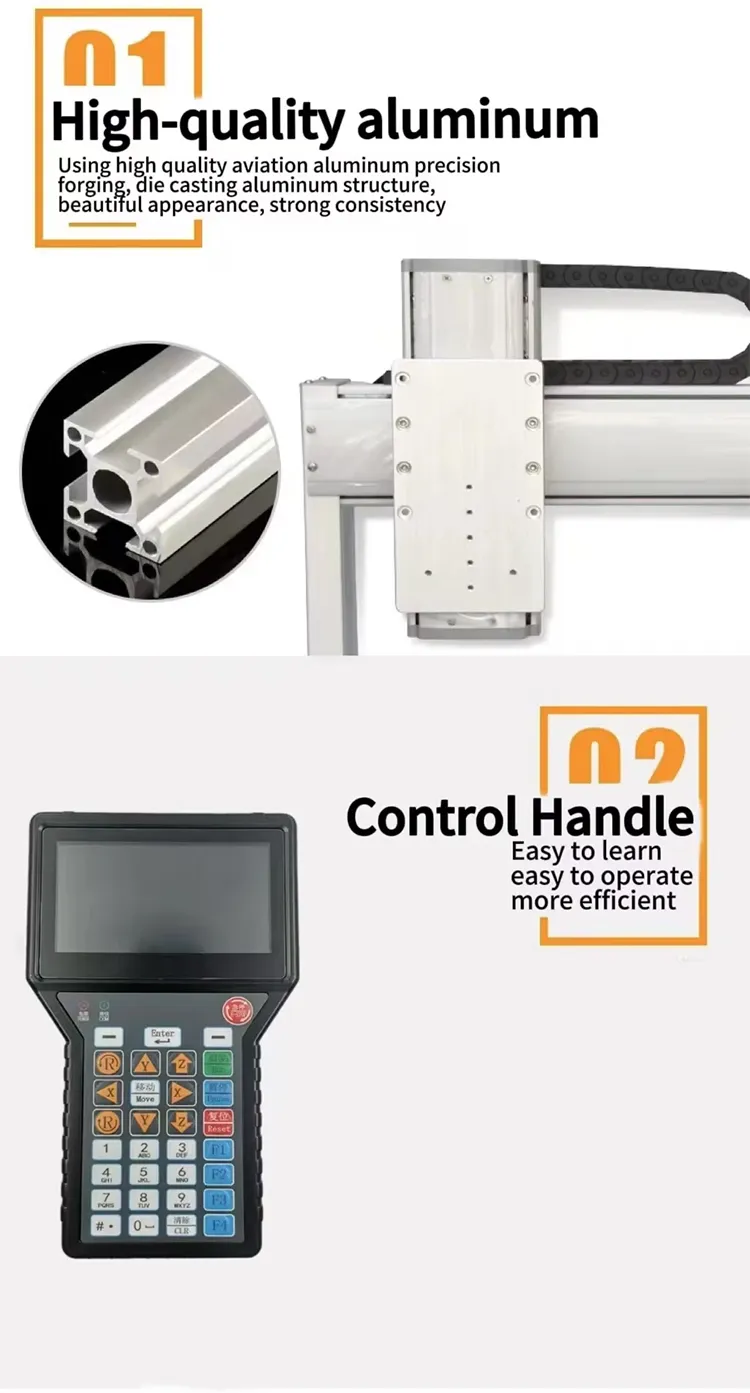

Structural Material	Aluminum Profile

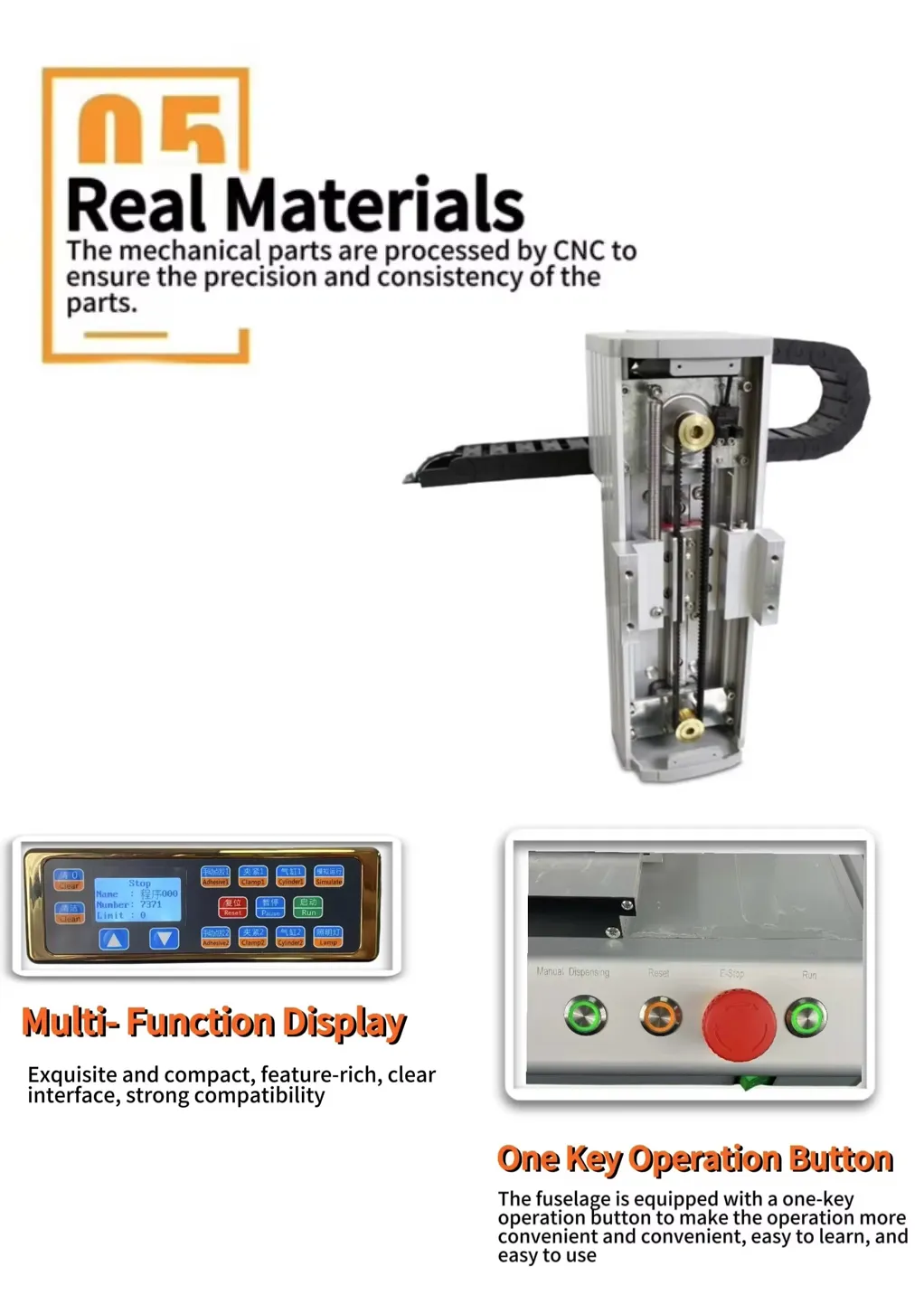

Control System	PLC + Teaching Model + Key Panel
Program System	Could Be Edited
COM	RS232
Power Supply	AC220V 50/60Hz
Air Pressure	0.5 ~ 0.7 Mpa
Total Power	400 W
Weight	86 kg
