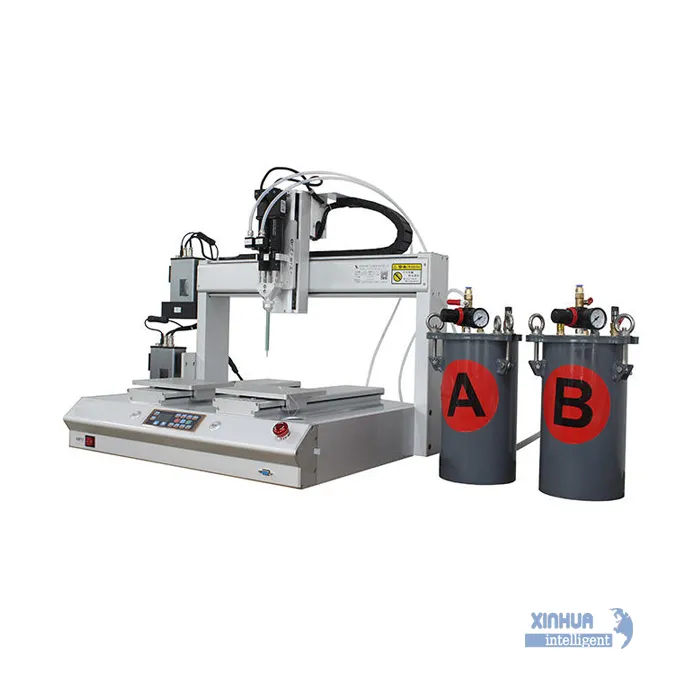

Desktop 3-Axis AB Glue Dispenser Machine with Double Station

Click to enlarge

Details:

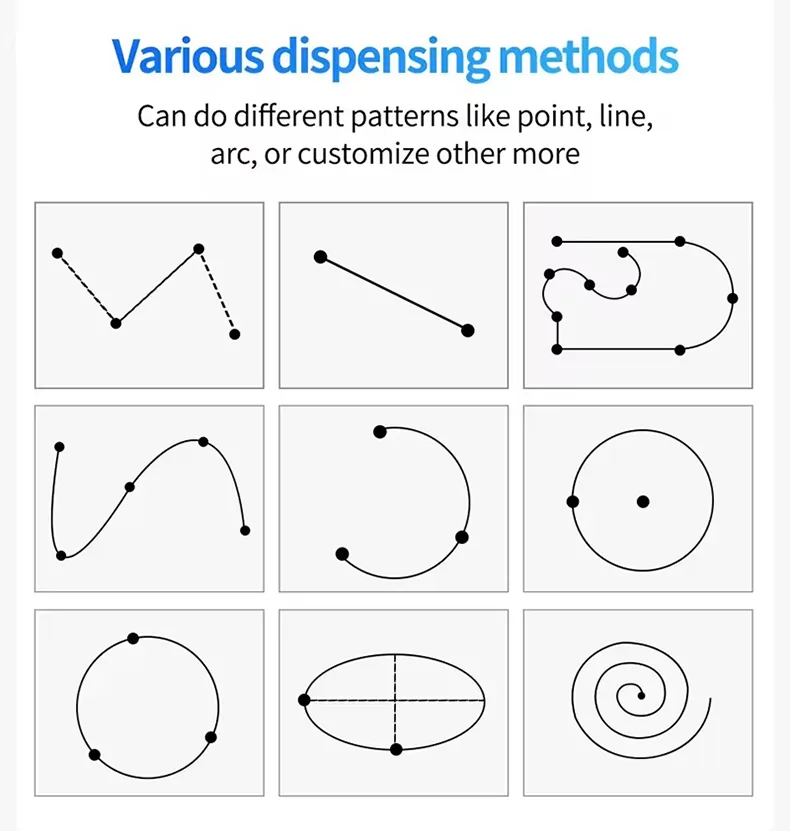

This Desktop 3-Axis AB Glue Dispenser Machine offers high-precision two-component automatic dispensing with a work area use double station and R-axis rotation of 360°. It supports functions like drawing points, lines, arcs, and irregular curves, enabling three-dimensional dispensing. The Glue Dispenser Machine features a high-speed, low-noise DC brushless motor, static eliminator reducing static electricity to ±100V, and XY area array for flexible positioning. With a repeatability of ±0.02mm and support for CAD and CorelDRAW file imports, it ensures accuracy and versatility.
After-sales Service Provided:Field installation, commissioning and training, Video technical support, Online support.

Send Inquiry

Description

Send Inquiry

Type Specification			XH-D221R	XH-D331R	XH-D441R	XH-D551R	XH-D661R
Operating Range	X-axis		200mm	300mm	400mm	500mm	600mm
	Y-axis		200mm	300mm	400mm	500mm	600mm
	Z-axis		100mm	100mm	100mm	100mm	100mm
	R-axis			360°	360°	360°	360°
Size (mm)	L		416	516	616	716	816
	W		485	585	685	785	885
	H		645	645	645	645	645
Weight			30kg	35kg	40kg	50kg	55kg
Max Speed		300mm/s (Made to Order 800mm/s)
Repeated Precision		±(0.02mm~0.05mm) (Made to Order within ±0.02mm)
Control System		By XINHUA

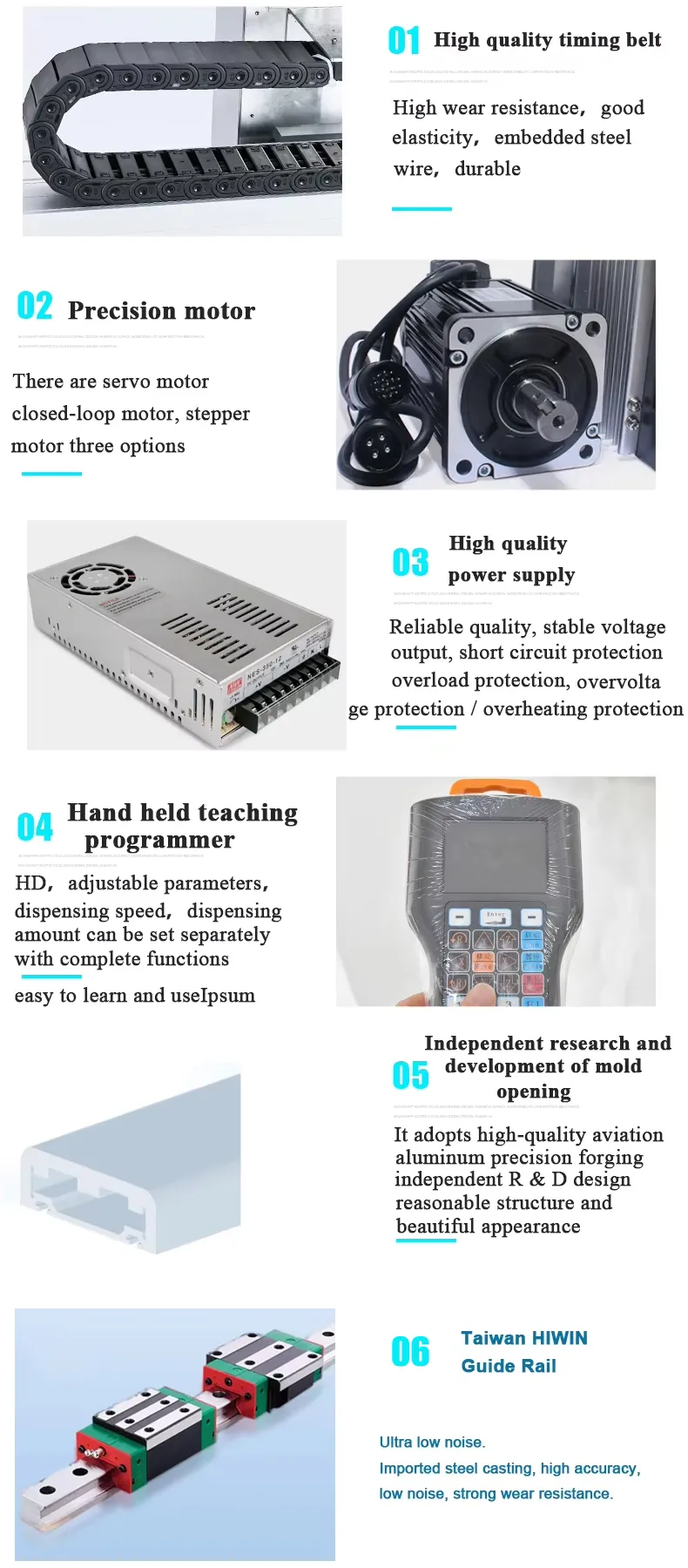

Driver		Motor (SHINANO/Japan) + Synchro Belt + Linear Guide (Taiwan of China)
Data Memory		It can store one thousand sets of processing data, each one occupies 3MB RAM most (about five thousands processing points).
File Memory Access		The handheld box has 256MB RAM, and the offline card has 32MB RAM. Each processing file occupies 3MB RAM most (about one hundred thousands processing points).
Support Document		CAD, CorelDRAW
Power Supply		AC220V 50-60HZ 350W (Selectable)
