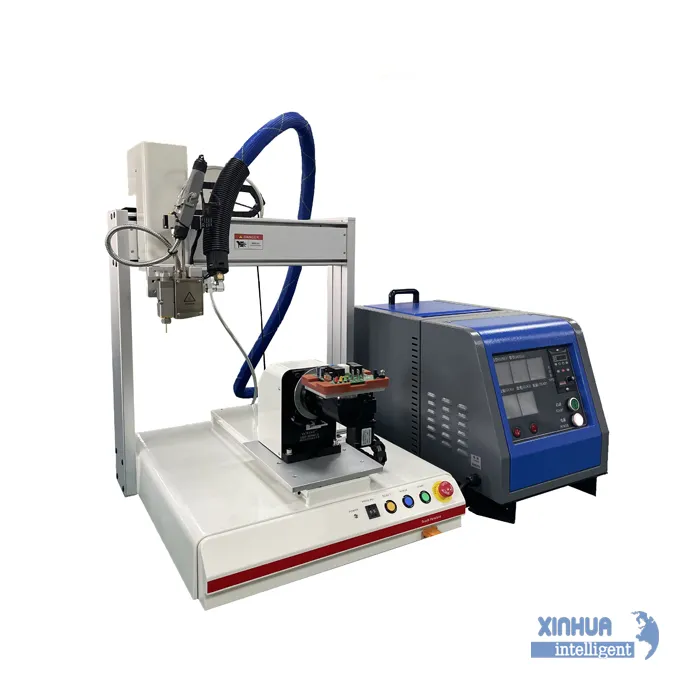

Benchtop Automatic 5-Aixs Glue Dispensing Robot with R Axis 360 Degrees

Click to enlarge

Details:

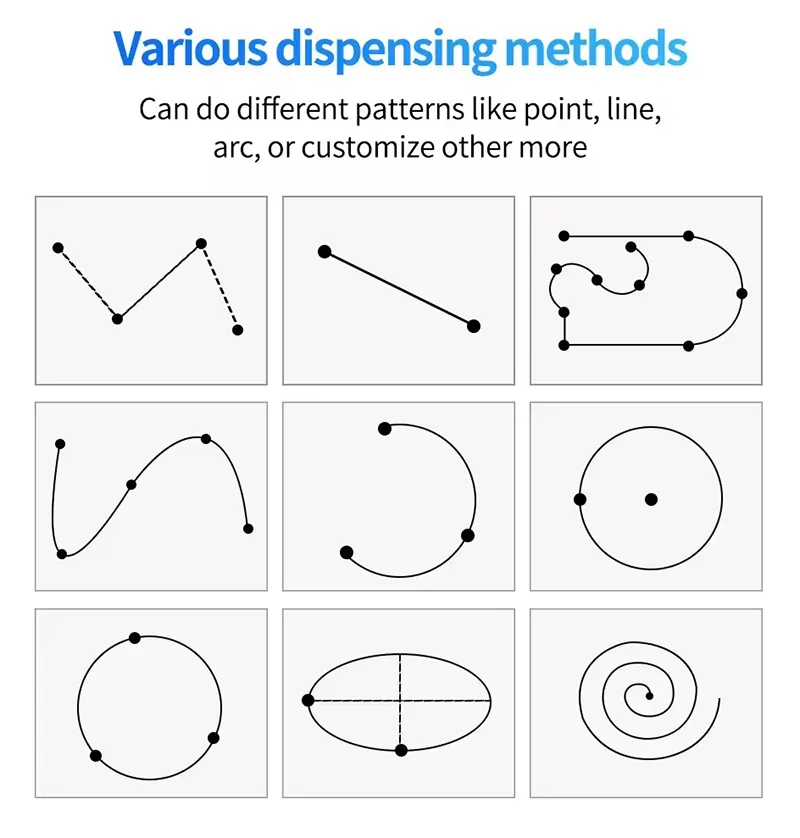

The 5 axis glue dispensing robot is a kind of newly designed and can be operated producers by teach pendant. With the interpolation function, all the axis can make points, drawing lines, arcs, some complicated draws, etc,repeatability of ±0.02mm. Achieved reducing time spent hand applying adhesives,accuracy of placement and volume of fluid ensures zero waste, mess and error.There are 5 axis, R axis can rotate 360 degrees , with the quite powerful software, the glue dispensing robot is quite easy to operate, one can learn and make program is a few minutes.
The glue dispensing robot are compatible with various fluids and adhesives such as hot melt glue, epoxy glue,SMT glue, AB glue, PVC glue , anaerobic adhesive, brazing paste, instant adhesive, filtration fluids, perfusion adhesives, resins, lubricating oils, clear coatings, water-based flux, grease, marking adhesives, medical-grade adhesives, paints, RTV silicone sealants, solder paste, silicone oil, solvents, thermal paste, UV-curing adhesives, and other.

Send Inquiry

Description

Send Inquiry

Item	XH-7300F
X / Y / Z / R working area (mm)	300 / 300 / 100 / 360°
Load worktable	11 kg / 2.0 kg
Speed PTP X & Y / Z (mm/sec)	0.1 ~ 500
Repeatability	±0.02 mm / axis
Resolution	0.01 mm / axis
Data memory	100 programs, 4000 points / program
Data storage	CF card
Program display	Teach pendant LCD
Operation system	PTP (point to point) & CP (continuous path)
Interpolation function	5 axis
Program method	Teach pendant
External interface	RS232
I/O signals	8 inputs / 8 outputs
Power supply	AC 90 ~ 260 V, 320 W
Operating temperature	0 ~ 40 °C
