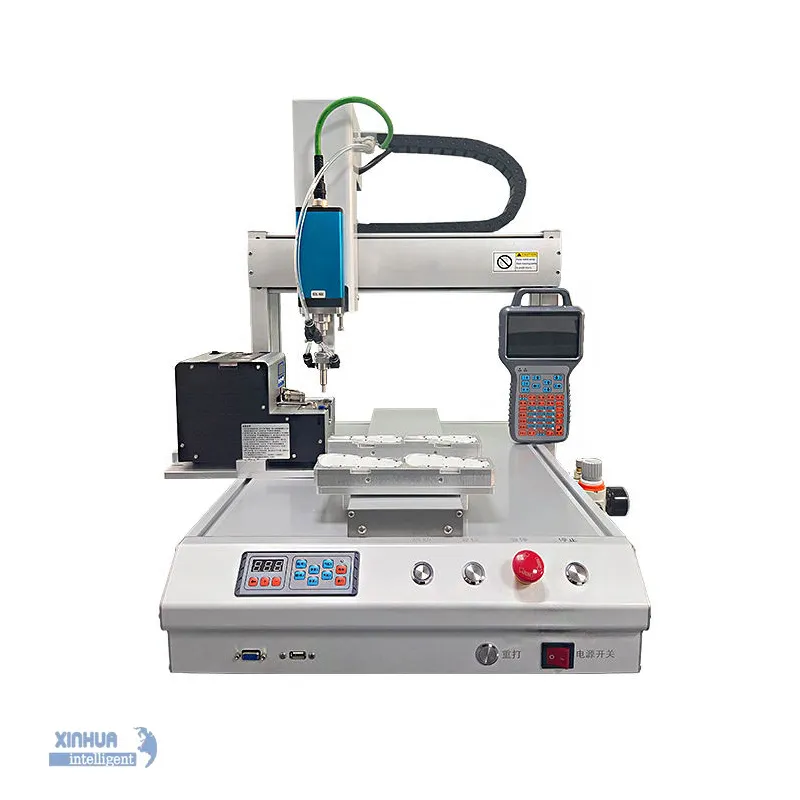

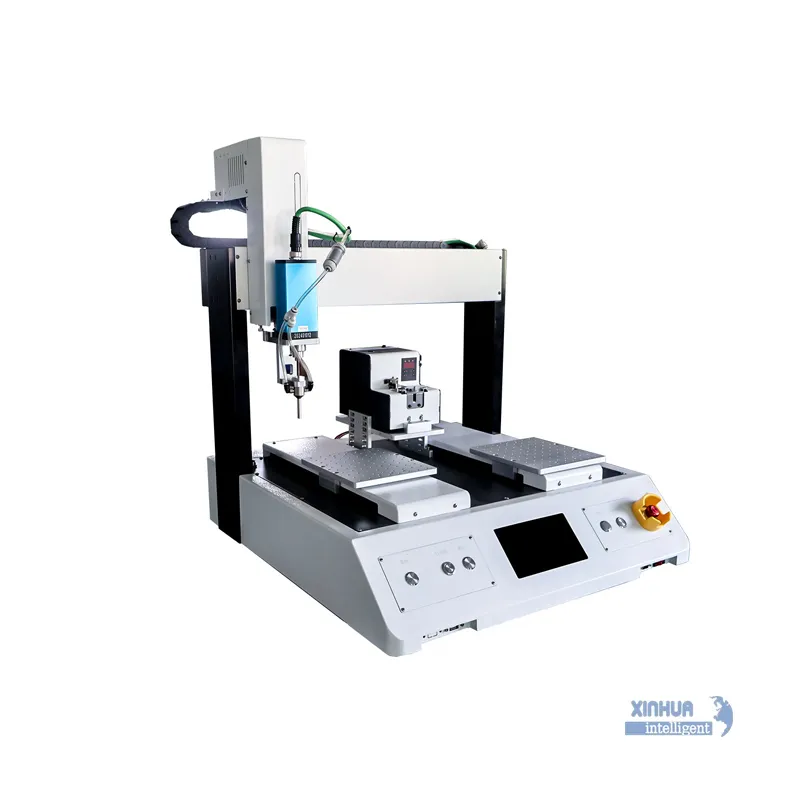

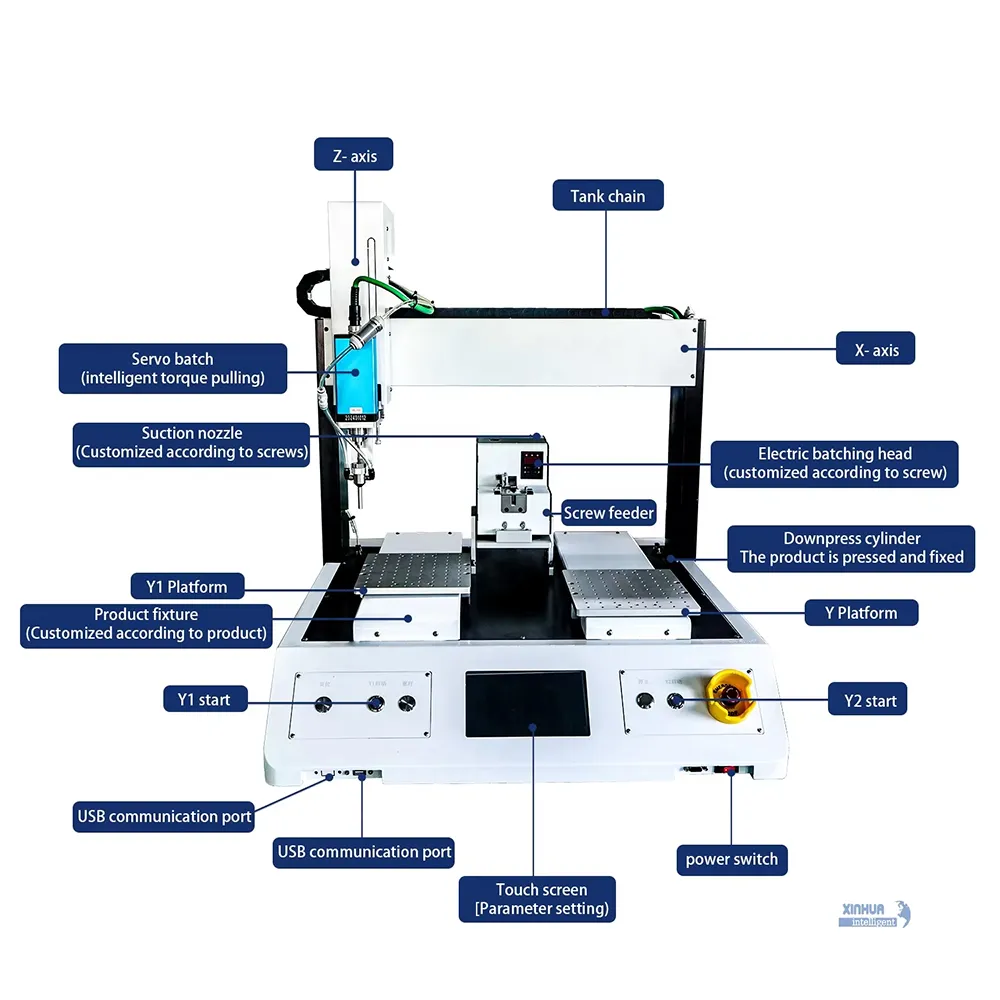

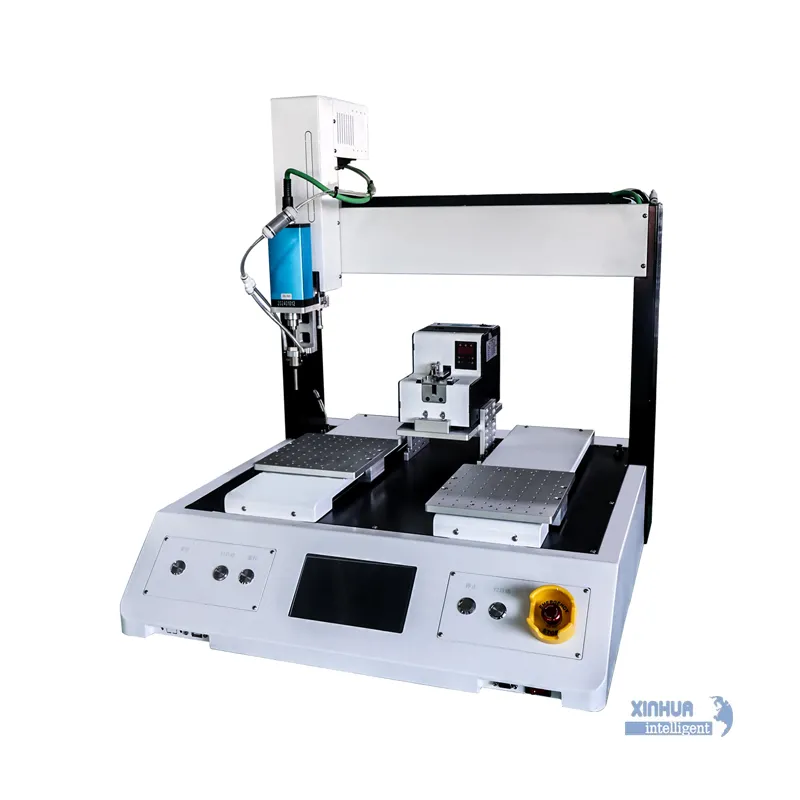

Desktop 3 Axis Screw Fastening Robot with Double Station

Click to enlarge

Details:

1. Vacuum suction enables automatic feeding and screwing in.
2. By teaching Pandent programming, it is easy to learn how to operate.
3. Leakage lock and floating bar detection.
4. Alternating work between two tables greatly improves work efficiency.
5. The screws are automatically arranged and picked up synchronously.
6. Vacuum check to ensure that screws can be suctioned before tightening each time.
7. Work on high and low planes.
This Screw Fastening Robot is used for locking screws applied in electronics, LED,household appliances, Auto, toy industry and so on, which can greatly improve the production efficiency. Please provide relevant product information and locking requirements of you need more details.

Send Inquiry

Description

Send Inquiry

Model Number	XH-L5331	XH-L5441	XH-L5441	XH-L661
Operating Range (X/Y/Z)	500(X)300(Y1)300(Y2)*100(Z) mm	400400100mm	500(X)400(Y1)400(Y2)*100(Z) mm	600600100mm
Machine Size	746585800mm	616685800mm	846785800mm	816885800mm

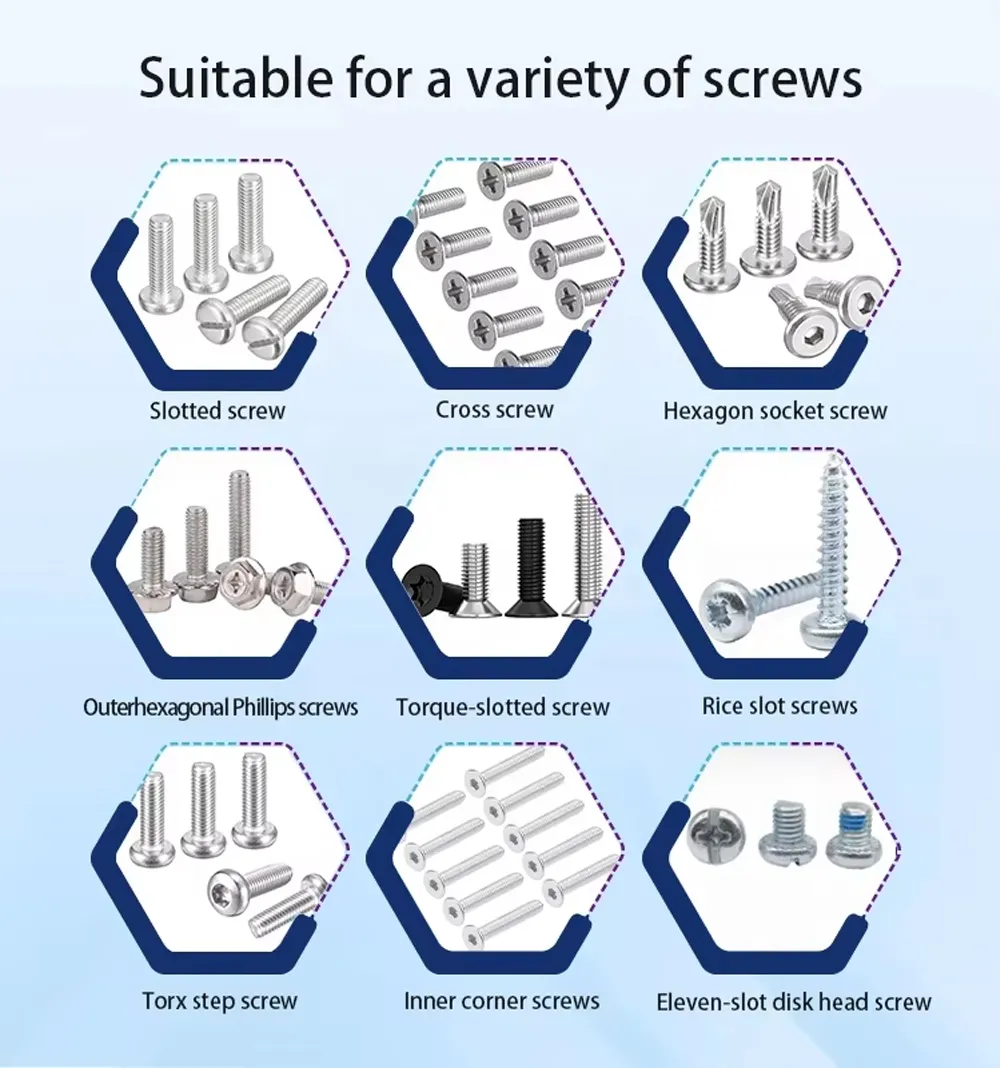

Screw Size	M1.0–M5.0
Maximum Speed	300mm/s (Max. customizable 800mm/s)
Repeatability	±0.02mm to 0.05mm
Working Mode	Inhalation / Blowing
Control System	Intelligent motion control card with teaching box
Driving Mode	Precision stepper motor + synchronous belt + linear guide rail / Servo motor + ball screw
Program Storage	Stores 1,000 sets of data; each file up to 3M (5,000 processing points)
File Storage Space	Handheld box: 256M, offline card: 32M; each file up to 3M (100,000 points)
Transmission Mode	Dual Track Timing Belt
Maximum Load	X: 5KG; Y1/Y2: 5KG; Z: 3KG
Power Supply	AC220V 50–60Hz
Work Environment	Humidity: 20–90%, Temperature: 0–60°C
External Interface	USB + RS232
Packing	Wooden Box
