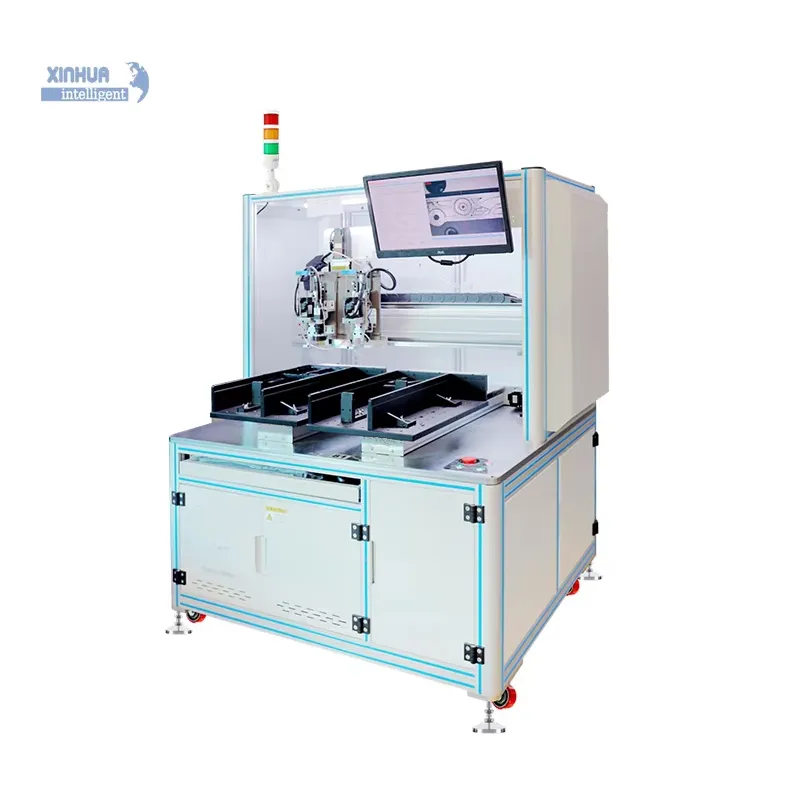

Automatic Screw Assembly Machine with Visual System for LED Panel Light

Click to enlarge

Details:

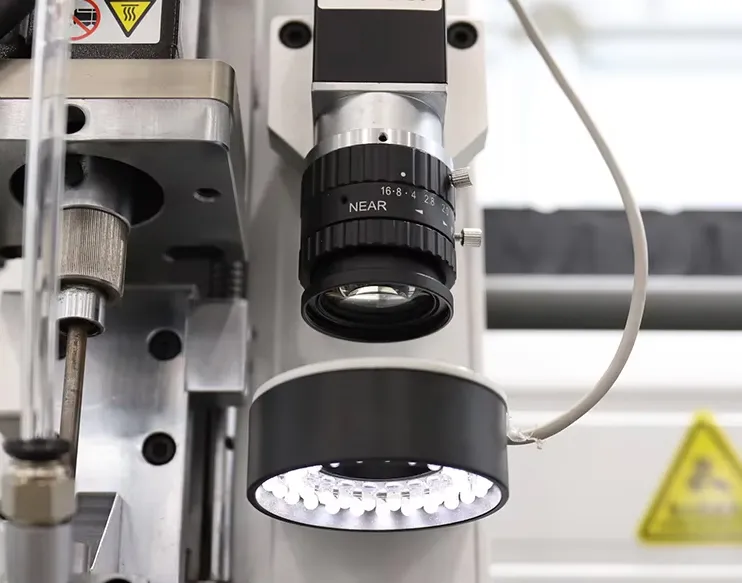

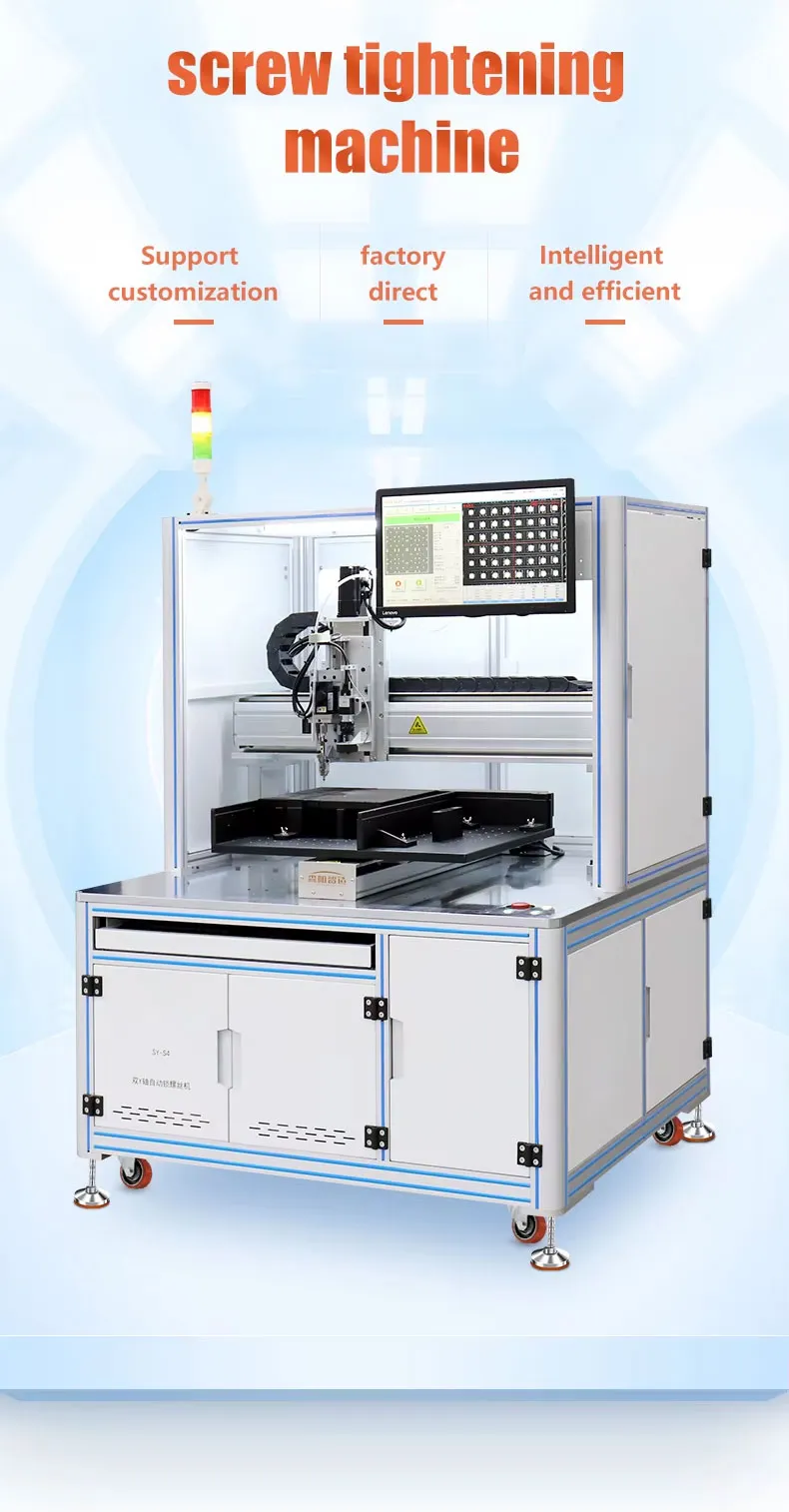

★ The automatic screw assembly machine is provided with the visual image location system that is the top in the industry, and original imported industrial digital cameras and high quality lenses are used.

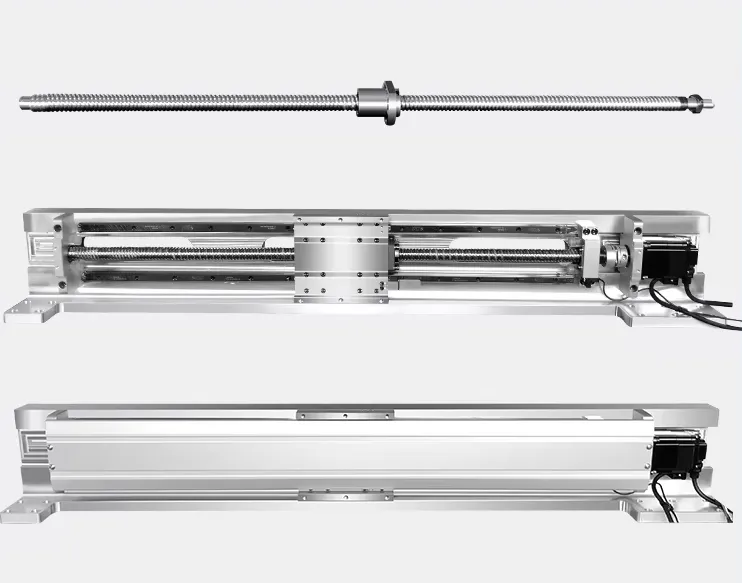

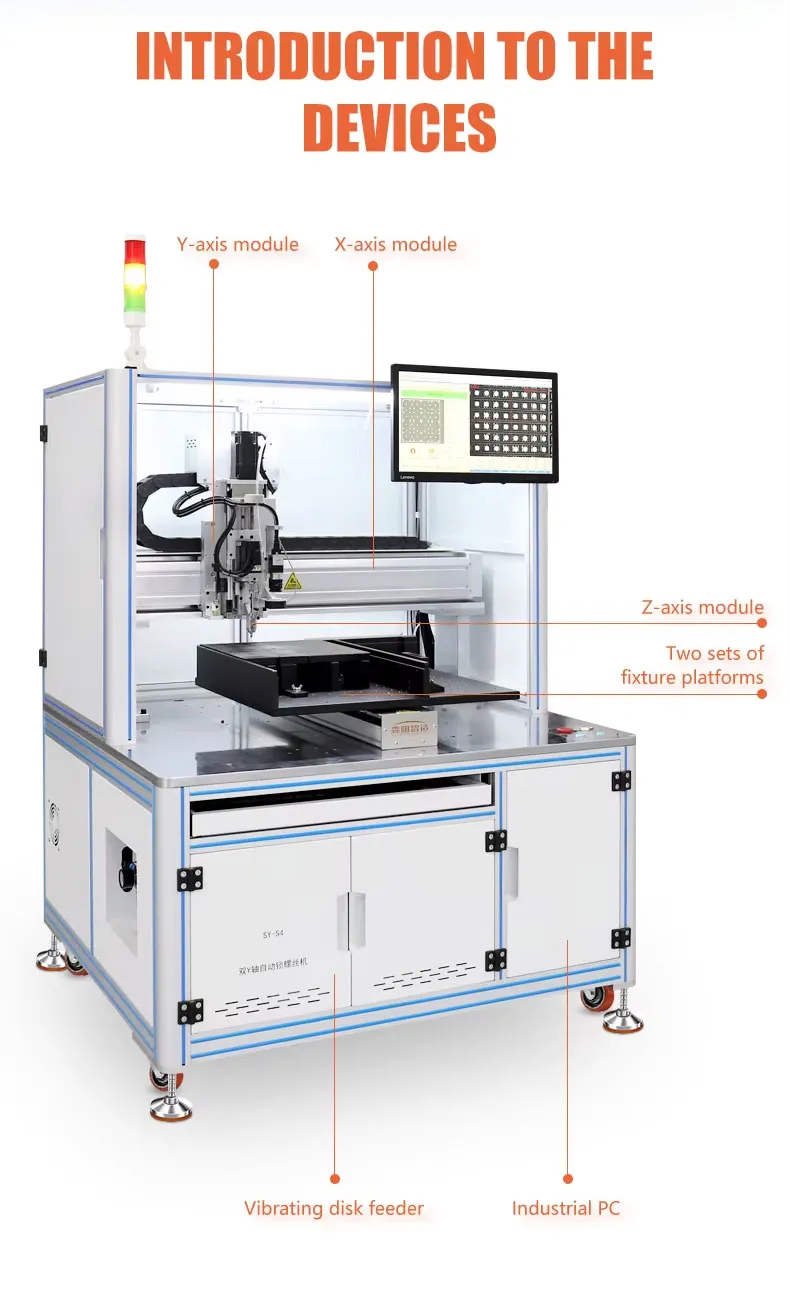

★ High precision screw guide rails + servo motor structures are provided to ensure the high quality and high precision of visual alignment.

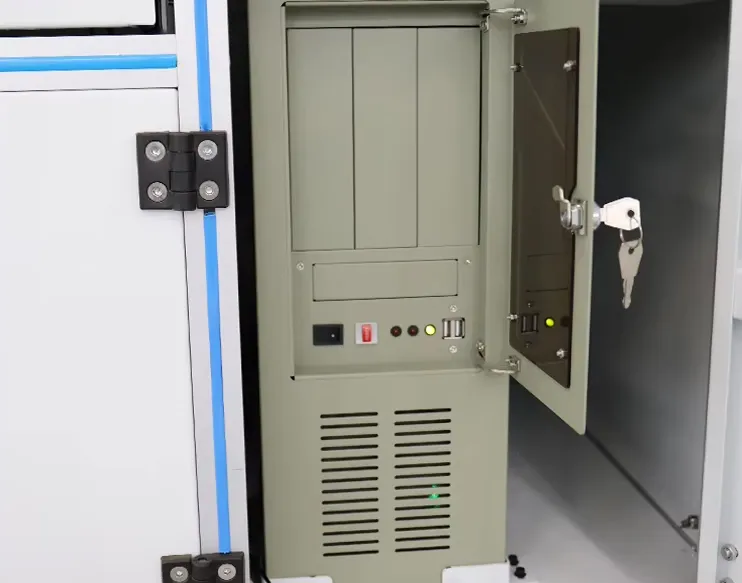

★ The screw assembly machine is provided with high performance industrial PC computers and independently developed control software to achieve rapid operation programming and visualized operation interfaces.

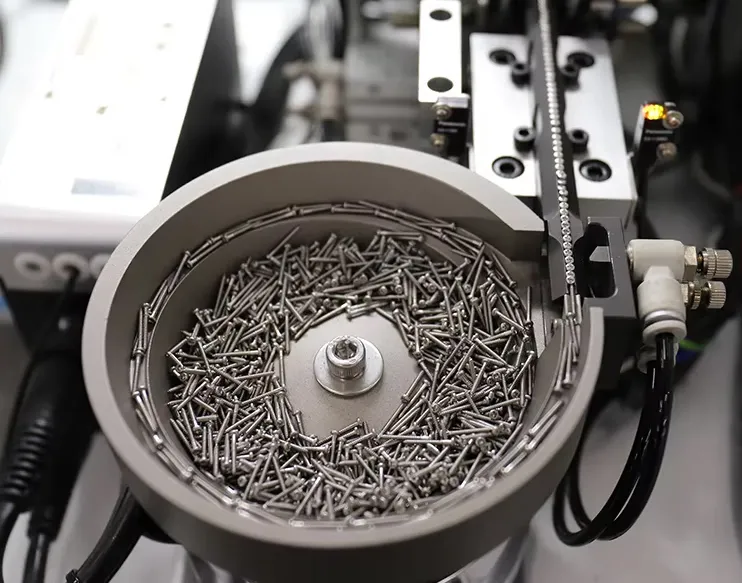

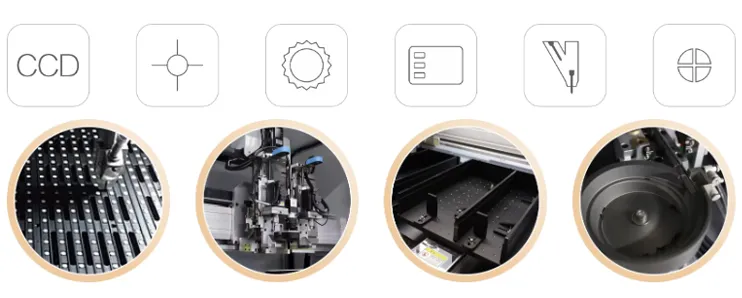

★ The positioning accuracy can be up to ±0.02mm. Feeding by the vibrating disk as the feeding way can save high costs for required replacement of screw boxes for customers in driving different screws.

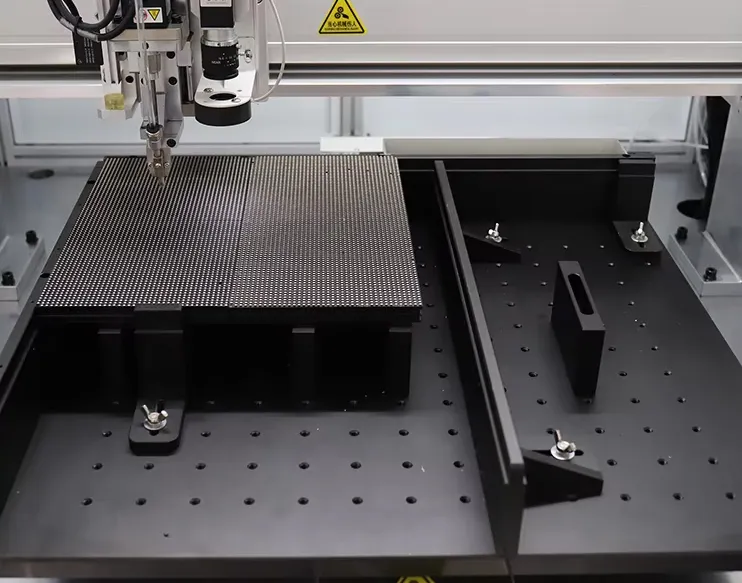

★ Two sets of fixture platforms. A single fixture can lock up to two 520 × 250 products. Manual adjustment, adjustable to any size within the range, compatible with all products in the range.
★ The mode of the combination of air blow and absorption is used for locking screws so that the machine is applicable to screw locking requirements for different products to live up to the maximization of the scope of application.
★ The productivity can reach 3000 pieces/h.

Send Inquiry

Description

Send Inquiry

Equipment Model	SY-S6
Machine Dimensions (L×W×H)	1170 × 1100 × 1550 mm
Locking Efficiency	1.0–1.2 s / screw
Production Lines	Not supported
Working Area	520 × 320 mm
Working Stations	1
Tool Heads	2
Screwdriver Type	Servo screwdriver
Locking Method	Chuck locking
Screw Size Range	M0.8 – M3.0
Positioning Mode	Manual adjustable positioning
Feeding System	Vibratory bowl feeder with vacuum pickup
Repeat Accuracy	±0.02 mm
Power Consumption	1.2 kW
Motion System	Servo motor + ball screw + linear guide
Control System	Industrial PC, Windows 7
Programming Method	CCD vision teaching, CAD file import
Screw Detection	Optical sensor + magnetic ring detection
Working Air Pressure	5.5 ± 0.5 kg/cm²
Power Supply	AC 220V / 50Hz
Servo Drive	Fuji (Japan)
Pneumatic Components	Taiwan brand
Linear Guide Rail	Taiwan HIWIN (default)
Ball Screw	Taiwan TBI (default)
