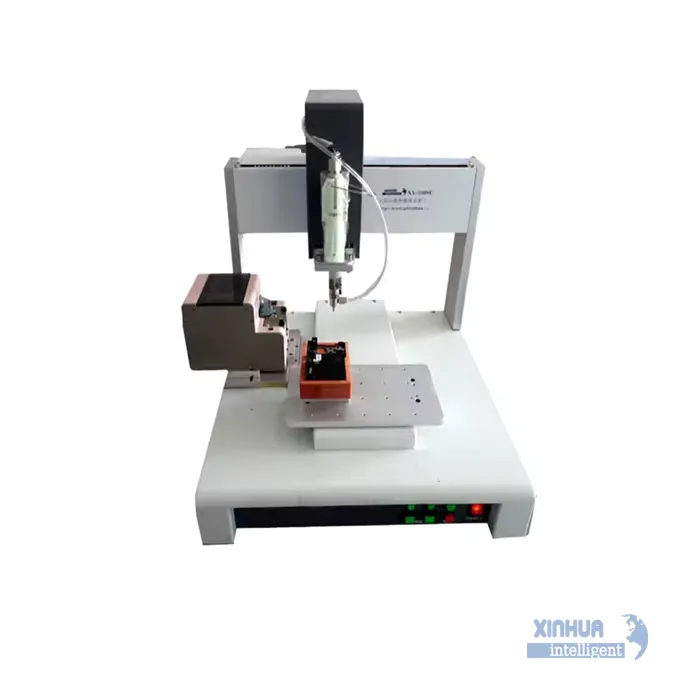

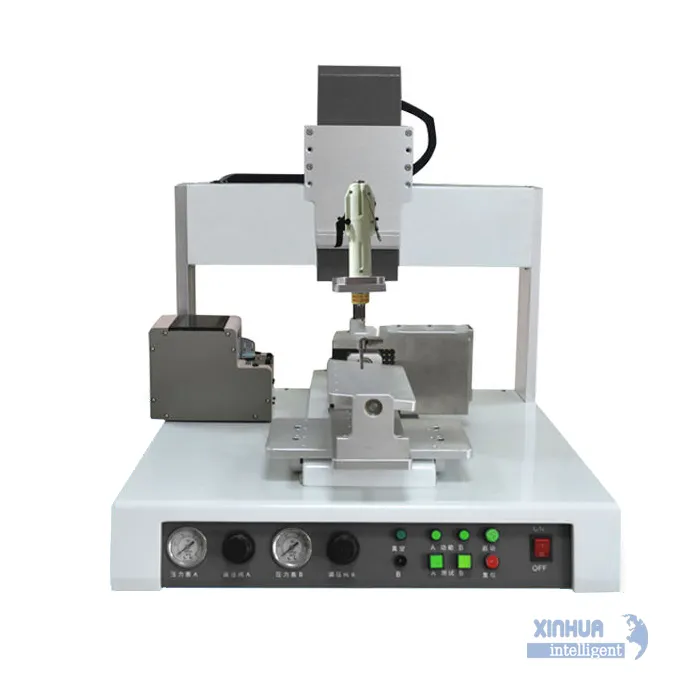

3 Axis Automatic Screw Driving Machine XY-300SC/400SC

3 Axis Automatic Screw Driving Machine XY 300SC 400SC

Click to enlarge

Details:

1.The automatic screw driving machine apply to most kinds of screws.Replace manual operation to carry out the specific screw-locking. Realize the mechanization production. Reduce the labor intensity of workers. It takes up a lot of work time and energy to manual placement of screws and alignment of screw heads traditionally.
2.No need to match handheld teaching device, only single operation, convenient installatio+n. Simple operation setting, workers can quickly master operation and debug.
3.The automatic screw driving machine has automatic alarm function, which is convenient for maintenance and keeping machine parameters.
4.The screw driving machine suitable for mobile phone, digital products, photoelectric, medical, household appliances and other industries.
5.Screw feeding mode: suction pay type, blowing type according to customer needs.

Vacuum suction screw mode: good commonality, less error. This mode can overcome defect of the blowing screw the length to diameter ratio less than 1.2 be not fed, but also overcome stainless steel screw can not be sucked in the magnetic suction screw mode. For screw changing, just to replace the feeding component. Nozzle in M1.0-M4.0 screw types.
Blowing screw mode: compared with the suction type, the blowing screw is first transported to the nozzle. Save the time to take screws back and forth in higher efficiency.

Send Inquiry

Description

Send Inquiry

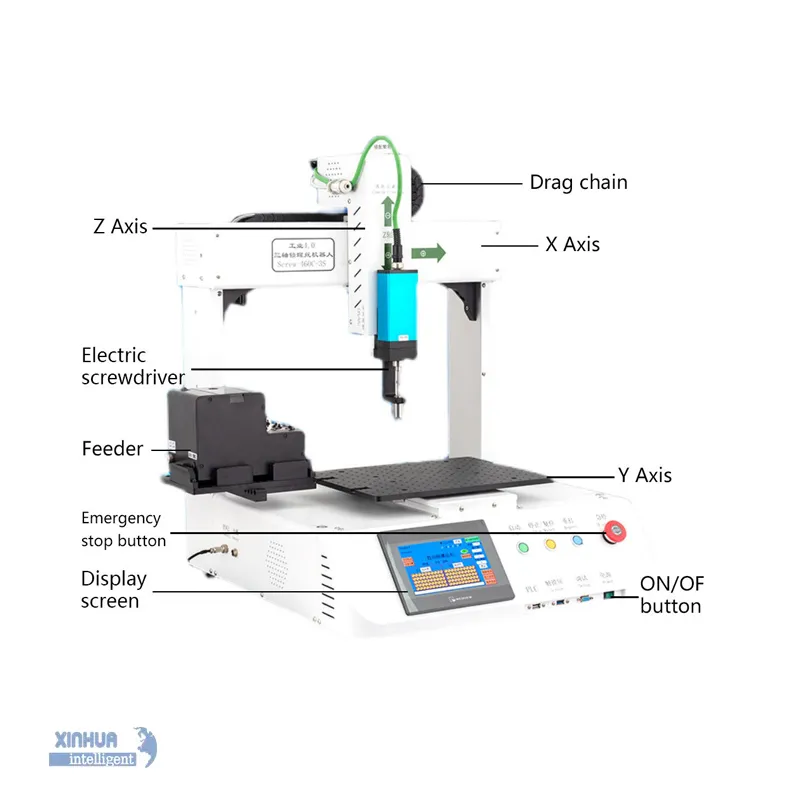

Models	XY-300SC	XY-400SC
Working area (XYZ mm)	300300120	400400120
Moving speed (mm/s)	X,Y: ≤ 500mm/s; Z: ≤ 200mm/s	X,Y: ≤ 500mm/s; Z: ≤ 200mm/s
Drive mode	Stepper motor (standard) / optional straight guide rail servo motor + ball screw
Location accuracy	±0.01–0.03mm	±0.01–0.03mm
Control system	Motion control + Teach pendant
Screw transmission method	Suction / Blowing (optional)
Electric screwdriver	1 pc (more can be added)	1 pc (more can be added)
Full voltage	220V 50HZ
Operating temperature	5–40°C
Operating humidity	20–90% no condensation
Air pressure	0–0.8MPa
Machine size (WDH mm)	485545600	565605620
Weight	Approx. 70kg	Approx. 90kg

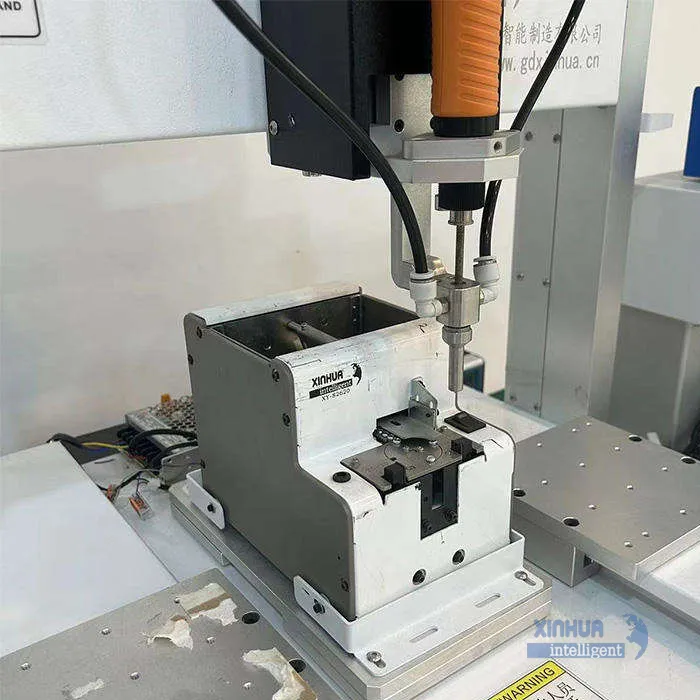

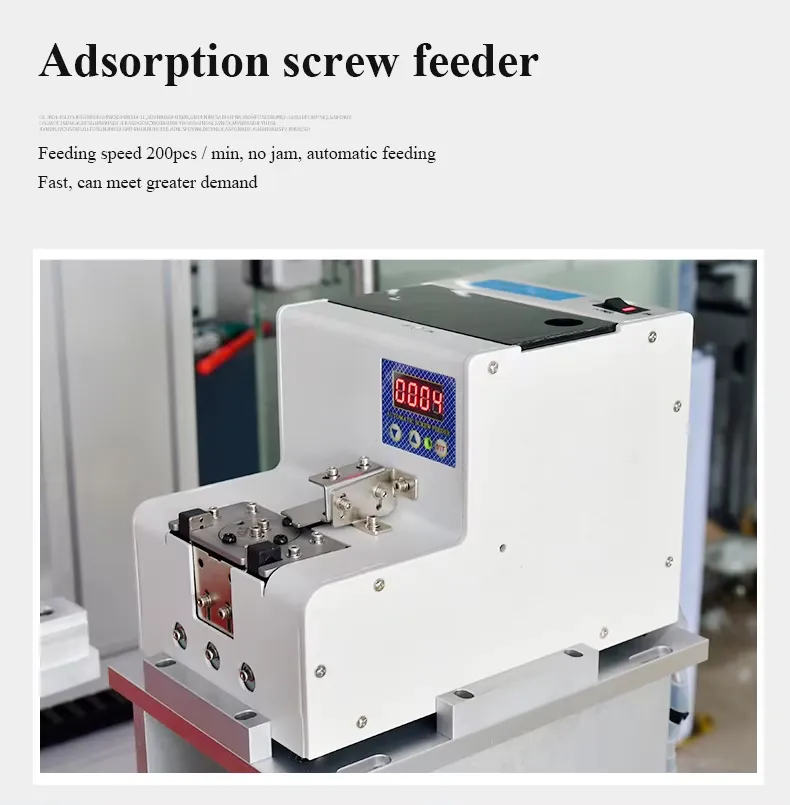

Auto Screw Feeder Machine

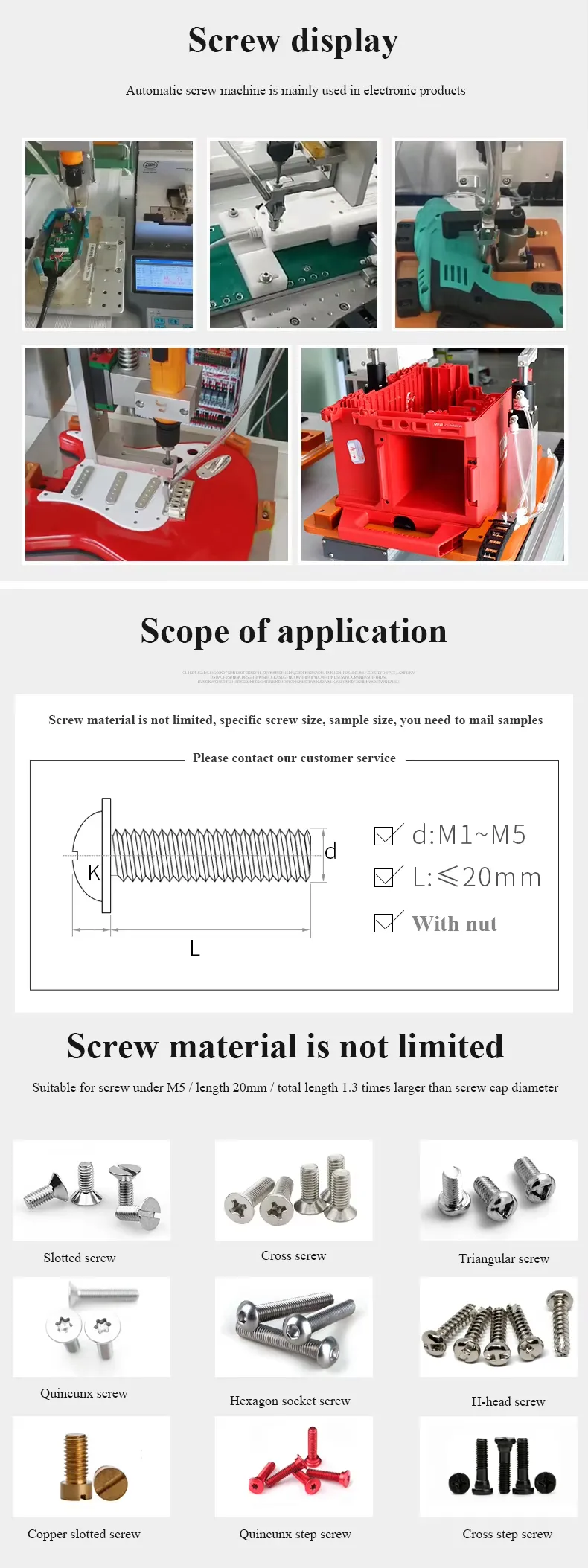

Suitable for M1–M4 screws
Features a unique intermittent feeding mechanism for more precise screw positioning
Precision-engineered internal structure minimizes vibration and ensures long service life
Easy to operate with high screw feeding efficiency
Offers higher screw arrangement efficiency and loading capacity compared to standard feeders
Adjustable rail size to accommodate different screw specifications Compact design saves space
Powered by 24VDC for enhanced safety and energy efficiency
