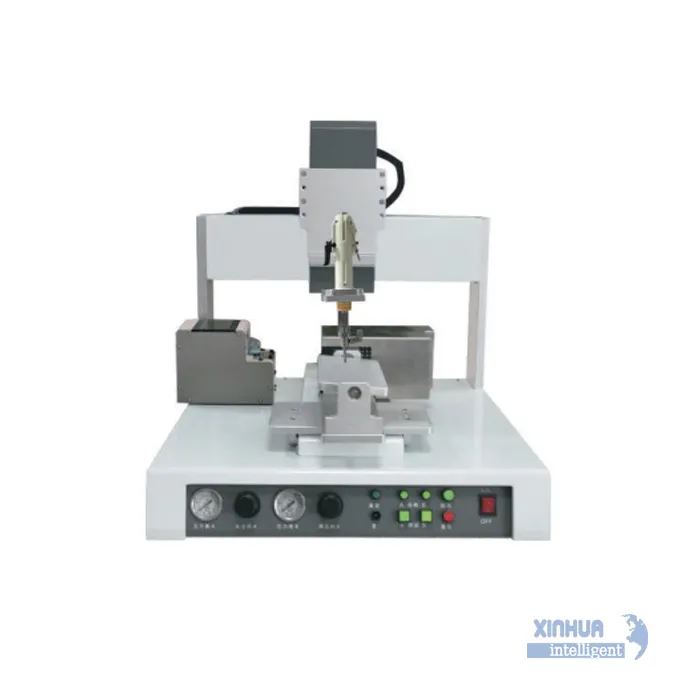

| Model: XY-SC400R | |
|---|---|
| Working area (X*Y*Z*R) | 400*300*120mm, R axis 0~360° |
| Moving speed (mm/s) | X/Y: ≤ 500mm/s; Z: ≤ 200mm/s |
| Drive mode | Stepping motor + straight guide / servo motor + ball screw (alternative) |
| Location accuracy | ±0.01~0.03mm |
| Control system | Moving controlling and teach pendant |
| Screw transmission method | Suction mode / blow mode (alternative) |
| Electric screwdriver | 1 pc (alternative, can be increased upon request) |
| Full-voltage | 220V 50HZ |
| Operating temperature | 5-40℃ |
| Operating humidity | 20-90% no condensation |
| Air pressure | 0-0.8MPa |
| Dimension (W*D*H mm) | 545*610*610 |
| Weight | Around 100kg |
