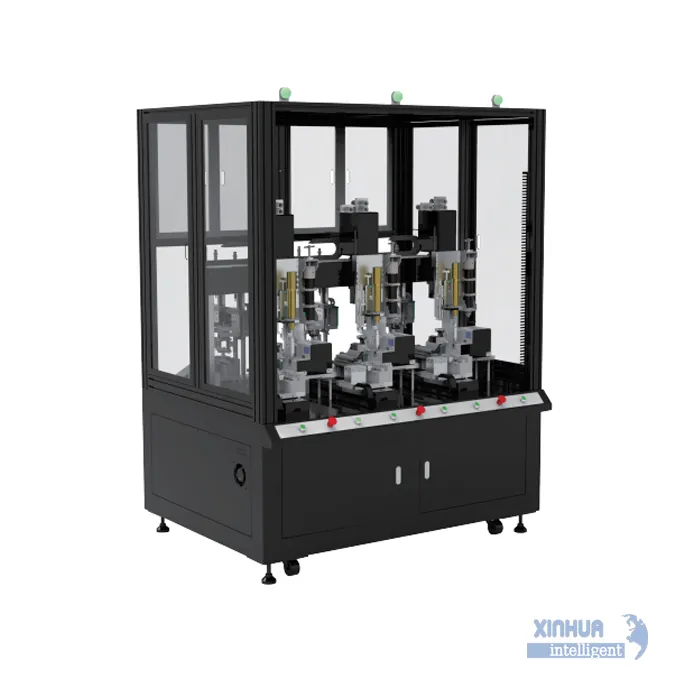

The automatic screw fastening machine is a high-efficiency, floor-type automated system designed to perform simultaneous screw fastening at three stations. Ideal for assembly line operations, this machine increases productivity and ensures consistent torque precision across multiple products.
Key Features:
Suitable for M1–M4 screws
Features a unique intermittent feeding mechanism for more precise screw positioning
Precision-engineered internal structure minimizes vibration and ensures long service life
Easy to operate with high screw feeding efficiency
Offers higher screw arrangement efficiency and loading capacity compared to standard feeders
Adjustable rail size to accommodate different screw specifications Compact design saves space
Powered by 24VDC for enhanced safety and energy efficiency
Key Features:
- Triple Station Design: Simultaneously fastens screws at three independent stations to improve output.
- Fully Automatic Operation: Automatically feeds, positions, and fastens screws, reducing manual labor.
- Consistent Torque Control: Ensures stable and repeatable screw tightening torque.
- Touchscreen Interface: Easy to operate with programmable parameters for different product models.
- Suitable for Mass Production: Perfect for electronics, appliances and more.
| Models | XY-AS373-T |
|---|---|
| Working area X*Y*Z(mm) | X1/X2:330*Y1/Y2:700*Z1/Z2:100mm |
| Moving speed | X/Y axis ≤ 500mm/s, Z axis ≤ 300mm/s |
| Drive mode | Stepper motor linear guide or servo motor ball screw (optional) |
| Location accuracy | ±0.01~0.03mm |
| Control system | Moving controlling and teach pendant |
| Screw transmission method | Suction mode/blow mode (alternative) |
| Electric screwdriver | 3 pcs (alternative) |
| Screw feeder | 3 pcs |
| Full voltage | 220V 50HZ |
| Operating temperature | 5-40°C |
| Operating humidity | 20-90% no condensation |
| Air pressure | 0-0.8MPa |
| Dimension W*D*H(mm) | 1235*1080*780 |
| Weight | Approx. 420kg |

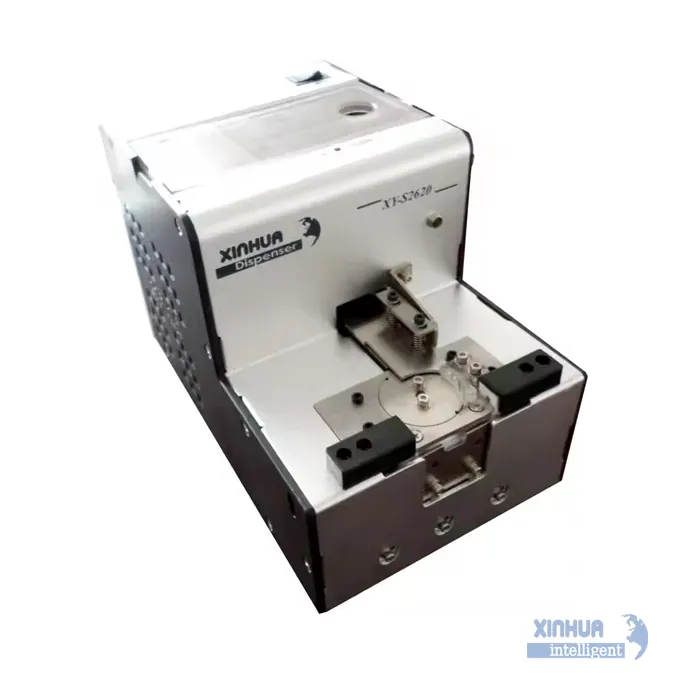

Auto Screw Feeder Machine
Suitable for M1–M4 screws
Features a unique intermittent feeding mechanism for more precise screw positioning
Precision-engineered internal structure minimizes vibration and ensures long service life
Easy to operate with high screw feeding efficiency
Offers higher screw arrangement efficiency and loading capacity compared to standard feeders
Adjustable rail size to accommodate different screw specifications Compact design saves space
Powered by 24VDC for enhanced safety and energy efficiency
