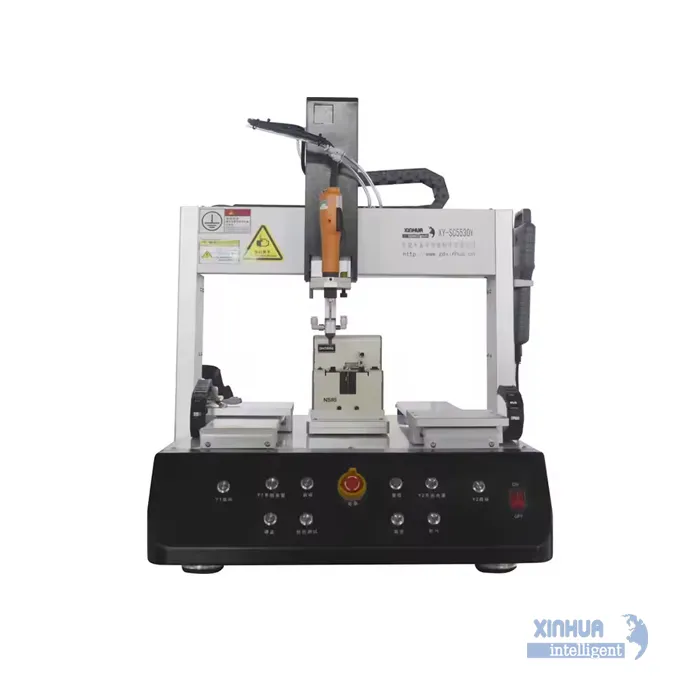

| Models | XY-SC5530Y | XY-SC4100Y |
|---|---|---|
| Working area (X*Y*Z mm) | 400*400*100 | 600*400*120 |
| Moving speed (mm/s) | X/Y: ≤ 500mm/s; Z: ≤ 200mm/s | |
| Drive mode | Stepping motor + straight guide / servo motor + ball screw (alternative) | |
| Location accuracy | ±0.01~0.03mm | |
| Control system | Moving controlling and teach pendant | |
| Transmission method | Suction mode / blow mode | |
| Electric screwdriver | 1 pc (provided more if needed) | |
| Full-voltage | 220V/50HZ | |
| Operating temperature | 5-40℃ | |
| Operating humidity | 20-90% no condensation | |
| Air pressure | 0-0.8MPa | |
| Dimension W*D*H (mm) | 545*610*610 | 460*610*615 |
| Weight | Approx. 85kg | Approx. 75kg |
Auto Screw Feeder Machine
Suitable for M1–M4 screws
Features a unique intermittent feeding mechanism for more precise screw positioning
Precision-engineered internal structure minimizes vibration and ensures long service life
Easy to operate with high screw feeding efficiency
Offers higher screw arrangement efficiency and loading capacity compared to standard feeders
Adjustable rail size to accommodate different screw specifications Compact design saves space
Powered by 24VDC for enhanced safety and energy efficiency
