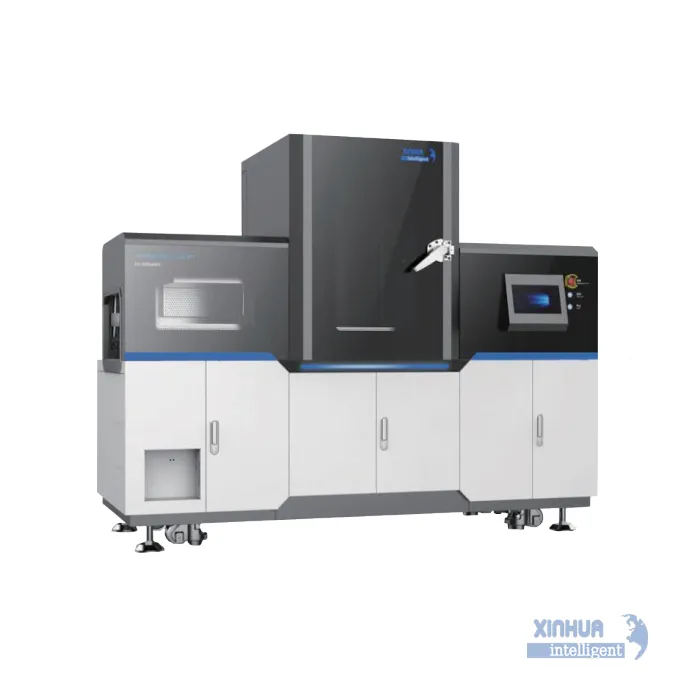

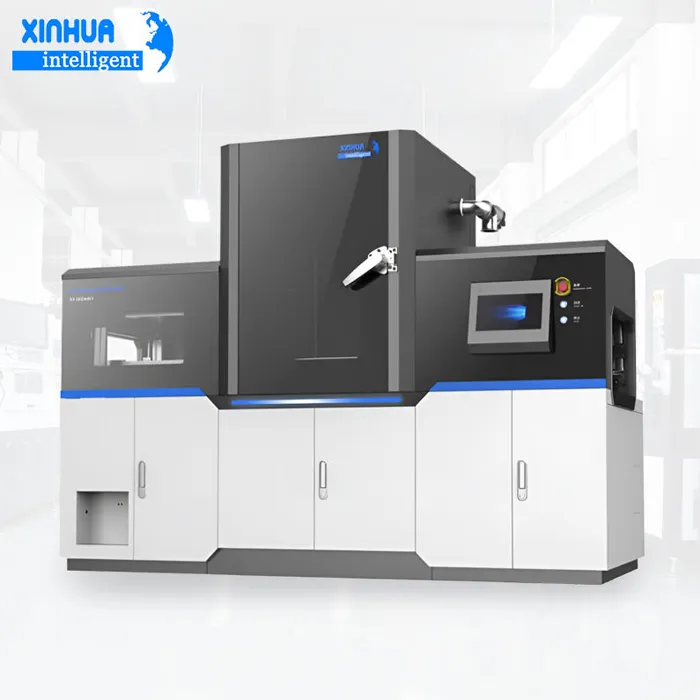

The Online 3-Stage Vacuum Automatic Potting Machine is designed to ensure complete and thorough resin penetration into complex product structures. It integrates vacuuming, potting, and defoaming into a seamless three-stage process, all operating synchronously without repeated vacuum cycling. This not only shortens the processing time but also improves production capacity and potting quality.
Key Features:
-
Three-stage continuous operation: Vacuuming, glue dispensing, and curing in one automated sequence
-
High production efficiency: Eliminates repeated vacuum-release cycles
-
Enhanced potting quality: Ensures bubble-free filling and uniform resin coverage
-
Fully automatic process: Ideal for high-volume production lines
-
Wide material compatibility: Supports epoxy, polyurethane, silicone, and other dual-component potting compounds
-
Inline integration: Suitable for automated production environments with minimal manual intervention
Applications:

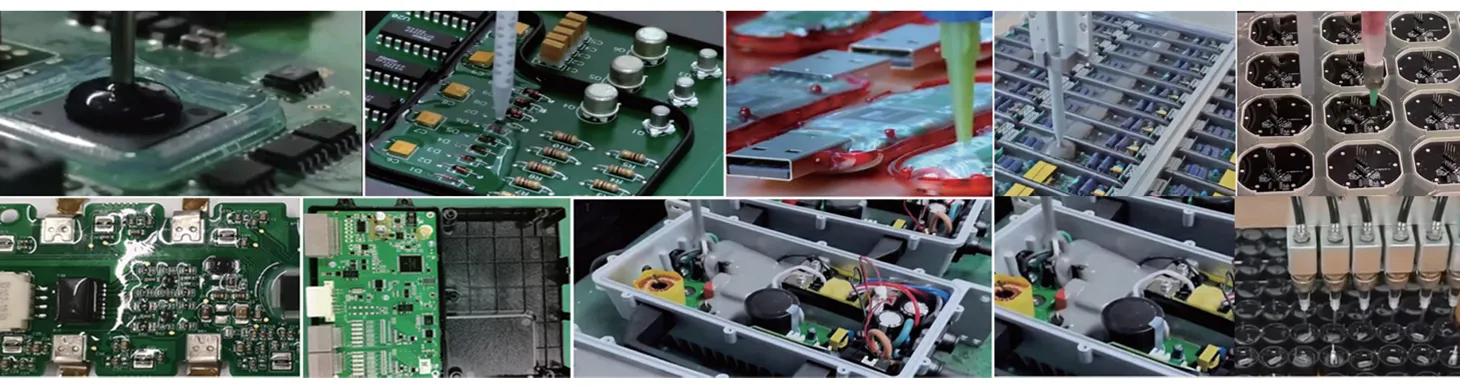

Perfect for electronics, LED drivers, power modules, sensors, transformers, and other precision components requiring high-quality vacuum potting.
| Models | XY-DSR4401 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ≤ ±3% |
| Ejection accuracy | ≤ ±3% |
| Mixing ratio | 1:1~20:1 (customizable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Mixing device | Double layer mixing / single layer mixing (optional) |
| Mixed mode | Dynamic mixing / static mixing (optional) |
| Operating system | PLC + touch screen |
| Operation mode | Start switch |
| Measurement mode | 2 sets of high-precision metering pumps of independent brand (gear pump and screw pump can be) |
| Glue supply system | Gear pump, screw pump, plunger pump (optional) |
| Pipeline circulation system | Optional |
| Anti curing function | Optional |
| Operating humidity | 20-90% no condensation |
| Input power | AC380V 50-60Hz |
| Overall dimension | W2100*L900*H1650mm (for reference only, subject to actual product) |
| Weight | Around 2000kg |
