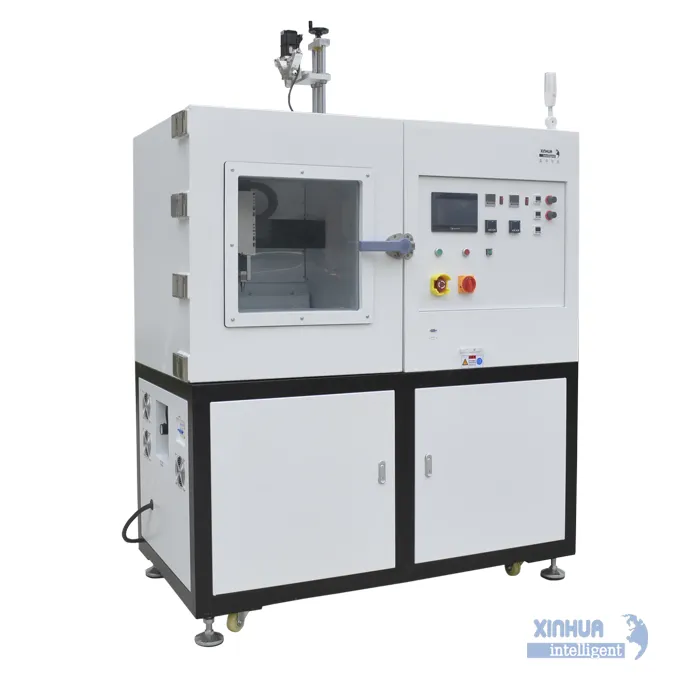

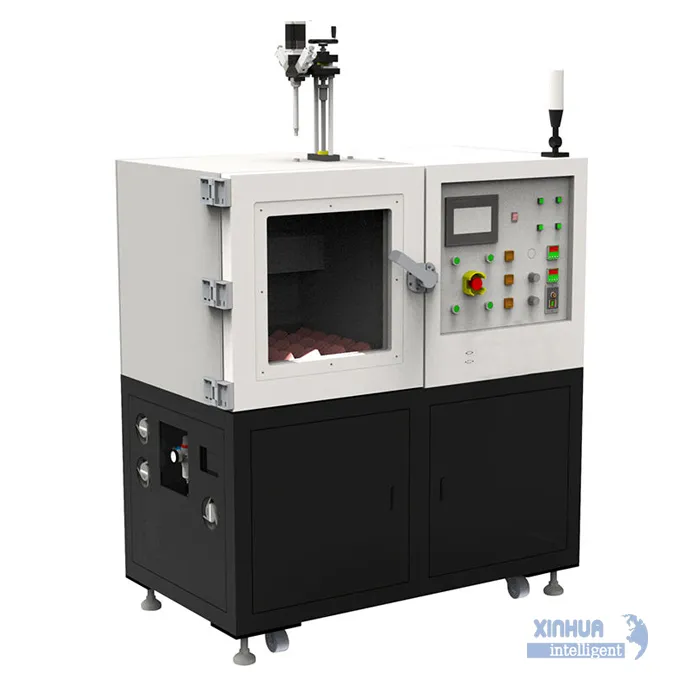

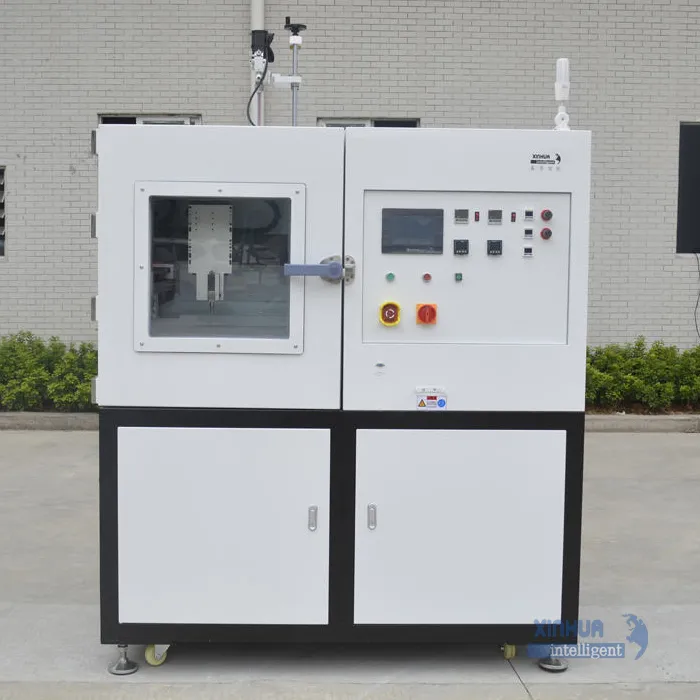

The automatic vacuum potting machine is placed in the vacuum box, and the AB double liquid is mixed according to a certain ratio, and then the glue is poured. The purpose is to greatly improve the glue quality, reduce bubble formation, achieve a high degree of automation, shorten the process, and improve production efficiency. Suitable for epoxy resin,polyurethane,silicone rubber, and other AB double liquid fluid materials, suitable for potting products with complex structure and high quality requirements.
| Models | XY-SR4401 |
|---|---|
| Operation mode | Single action, linkage, automatic |
| Proportioning accuracy | ≤ ±3% |
| Ejection accuracy | ≤ ±3% |
| Mixing ratio | 1:1~20:1 (customizable) |
| Glue dispensing speed | 0.1~50G/S (set according to customer product conditions) |
| Storage tank | 2 stainless steel vacuum storage barrels, 1 cleaning barrel (the volume can be customized according to customer requirements) |
| Mixed mode | Dynamic/static hybrid (optional) |
| Operating system | PLC PC/teaching pendant |
| Operation mode | Foot switch + start switch |
| Measurement mode | 2 independent brand high-precision metering pumps (gear pump/screw pump optional) |
| Mixing device | Double layer mixing/single layer mixing (optional) |
| Pipeline circulation system | Optional |
| Anti curing function | Optional |
| Input power | AC220V 50-60Hz |
| Operating humidity | 20-90% no condensation |
| Overall dimension | W1960*L900*H1900mm (for reference only, subject to actual product) |
| Weight | Around 1500kg |
