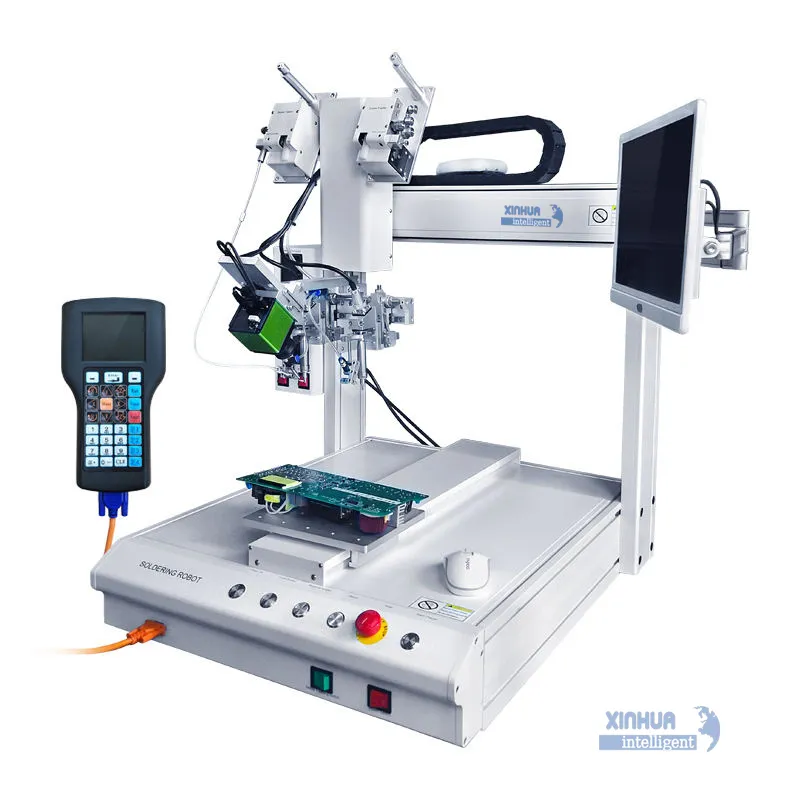

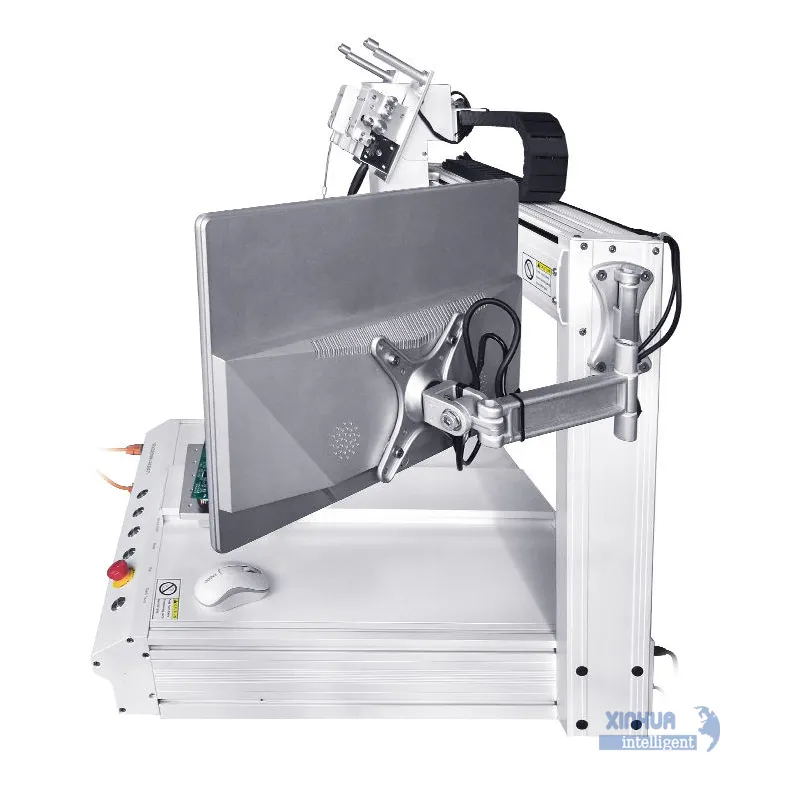

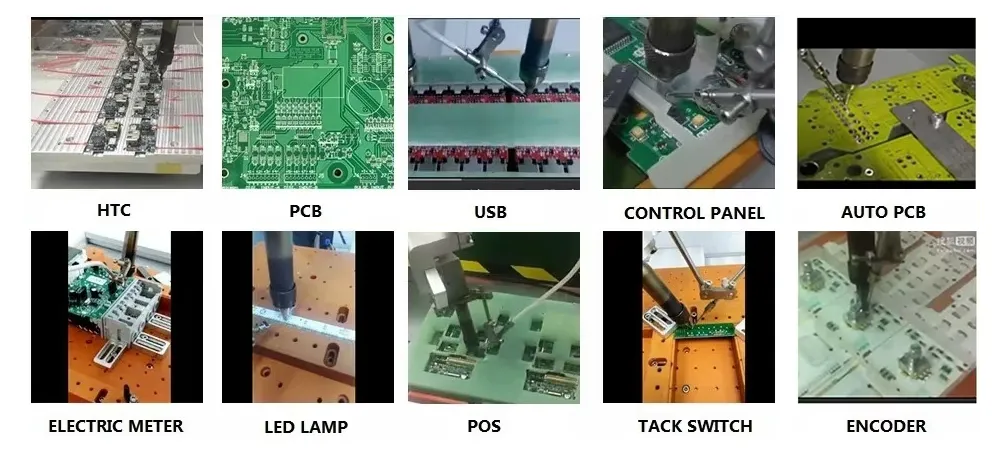

This four-axis SMT automatic soldering robot is designed to streamline production workflows, allowing a single operator to manage multiple tasks efficiently. Powered by high-performance motors, it ensures precise and consistent solder joints. Key features such as automatic tip cleaning and fast-heating elements boost productivity, while interchangeable soldering heads accommodate a wide range of PCB applications. With user-friendly wireless programming, setup is quick and intuitive, minimizing downtime. An optional smoke filtration system helps maintain a clean, safe working environment, making this robot an ideal solution for high-volume, cost-effective SMT assembly.
| Model | XY-AS5030 | XY-SA5040 | XY-AS5050 |
|---|---|---|---|
| Processing Range | The rotation axis R, rotate 0~360° | The rotation axis R, rotate 0~360° | The rotation axis R, rotate 0~360° |
| Max Loading | Y axis: 10kg, Z axis: 4kg | ||
| XY/Z Axis Moving Speed (mm/sec) | XY: ≤500, Z: ≤300 | ||
| Repeatability Accuracy | XYZ axis: ±0.02mm, R axis: ±0.05° | ||
| Screen Mode | Liquid crystal display | ||
| Programming Mode | Teaching screen | ||
| Dive Mode | Stepping motor + straight guide / servo motor + ball screw (optional) | ||
| Temperature Control System | 1 high frequency intelligent constant temperature welding table, welding table with automatic temperature compensation, abnormal temperature alarm function | ||
| Automatic Tin Feeder | 1 unit | ||
| Cleaning Cylinder | 1 unit | ||
| Temperature Setting Range | 0–500°C | ||
| Cleaning Method | Air blowing cleaning | ||
| Applicable Wire Diameter | φ0.3–1.6mm | ||
| Input Power | AC220V (internal switch conversion) | ||
| Operating Temperature | 5–40°C | ||
| Operating Humidity | 20–90% | ||
| Equipment Size (W*L*H) (mm) | 485*545*750 | 580*630*750 | 660*700*650 |
| Weight (kg) | around 80kg | around 95kg | around 110kg |
