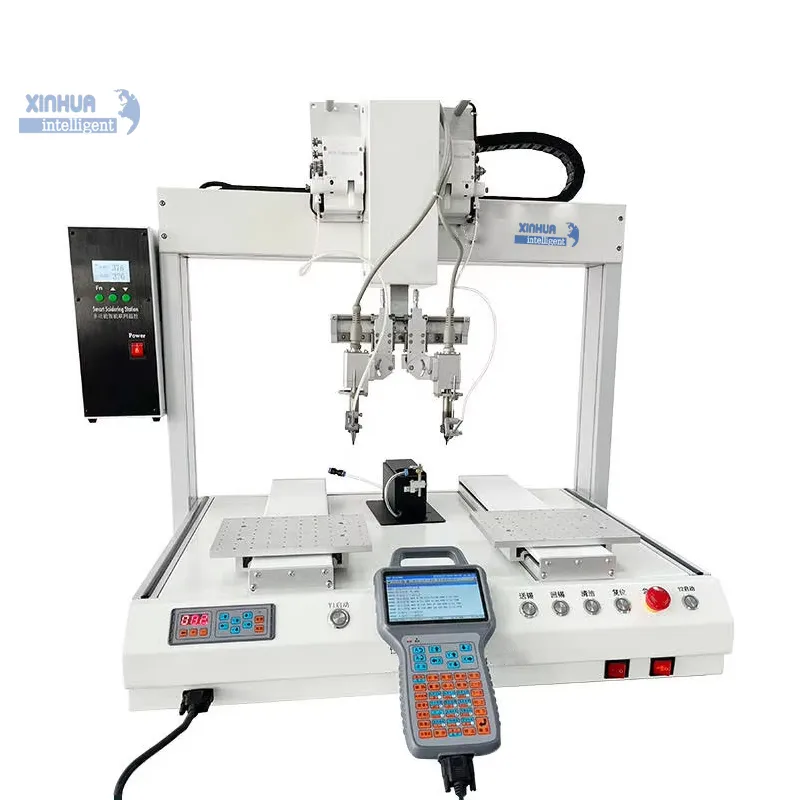

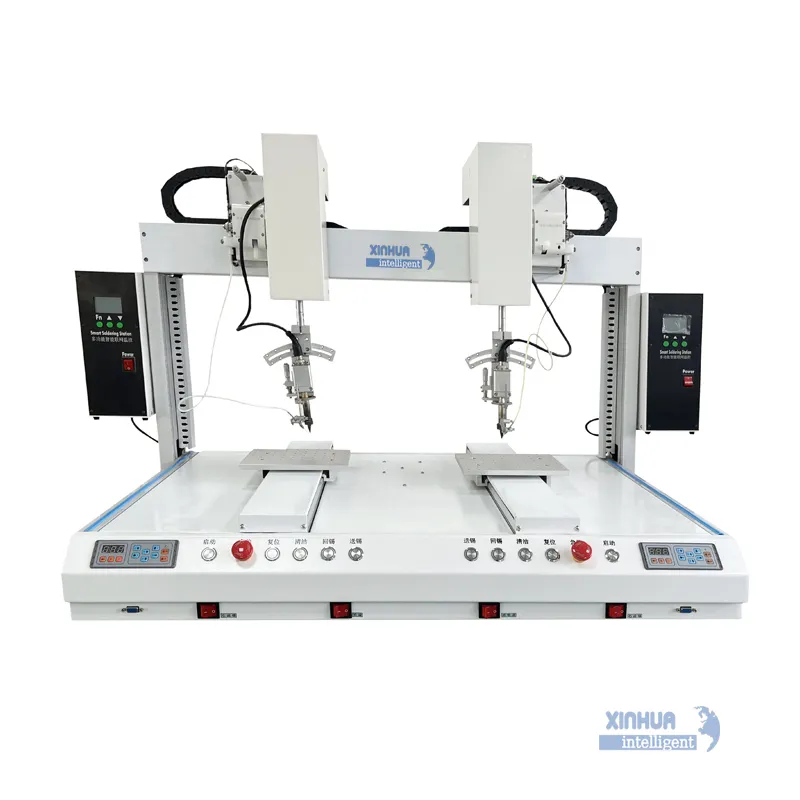

The auto soldering machine widely used for PCB soldering, switch and cable assembly, CAP LED and LED lamp soldering, and motor connections. The machine is also suitable for telecommunications devices such as telephones and Micro USB ports, as well as medical equipment, automotive electronics, transformers, electric meters, and various audio products. Its versatility and reliability make it an essential solution for the modern electronic manufacturing industry.
| Model | XY-AS300 | XY-AS400 |
|---|---|---|
| Working area X/Y/Z(mm) | 300*300*100 | 400*400*100 |
| Max loading | Y-axis: 10kg Z-axis: 4kg | |
| Moving speed(mm/sec) XY/Z | XY: 500 Z: 300 | |
| Accuracy precision | ±0.01~0.03mm | |
| Programming mode | Teach pendant | |
| Drive mode | Stepping motor+straight guide / servo motor+ball screw (optional) | |
| Hf lead-free soldering table | 1 set (multiple welding heads can be added as appropriate) | |
| Automatic tin feeder | 1 set | |
| Cleaning cylinder | 1 set | |
| Temperature control system | Automatic temperature compensation, abnormal temperature alarm function | |
| Cleaning method | Air blowing cleaning | |
| Applicable to tin wire range outside diameter | φ0.3~1.6mm | |
| Input power | AC220V (internal switch conversion) | |
| Operating temperature | 5~40°C | |
| Operating humidity | 20~90% | |
| Dimension W*D*H(mm) | 485*545*750 | 580*630*750 |
| Weight (kg) | around 70kg | around 85kg |
