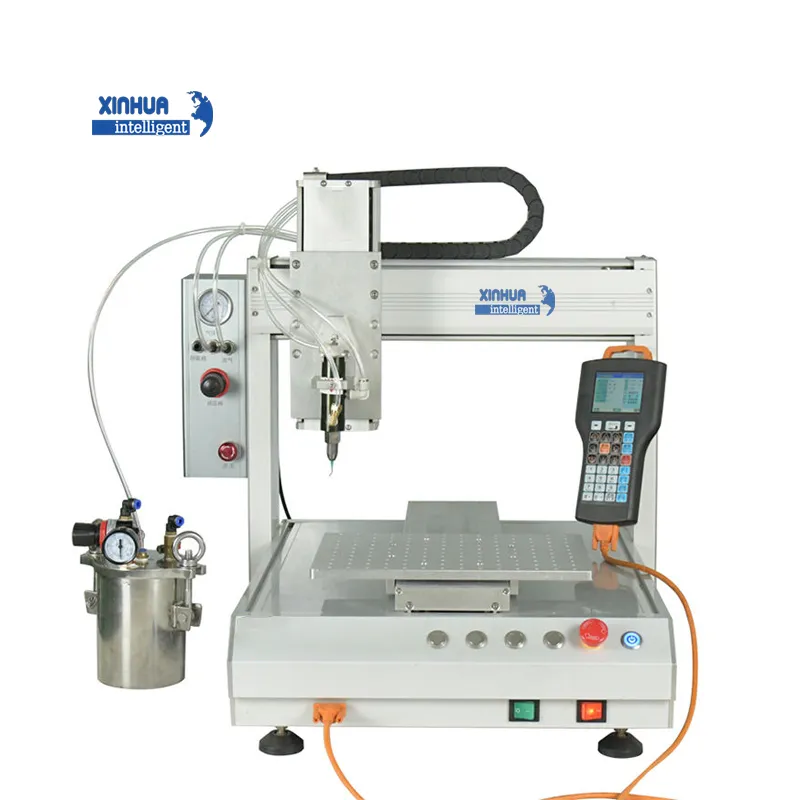

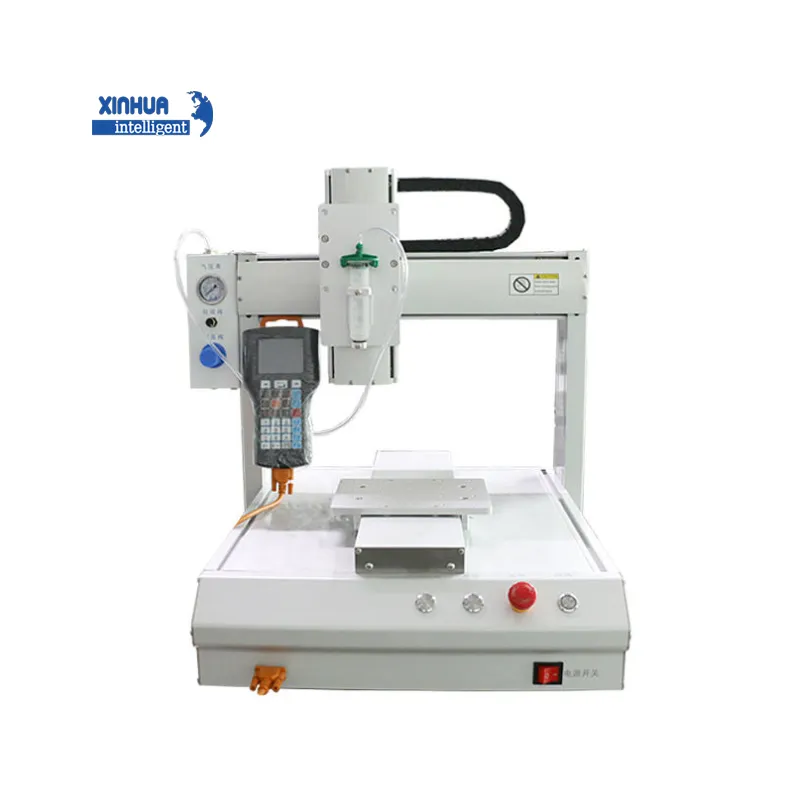

1. The dispensing machine can replace manual operation by high precision programming of dots, strips, arcs and patterns on different planes or curved surface.
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computer, PLT files, TCF files and G code files.
4. Suitable for glue: Anaerobics, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.

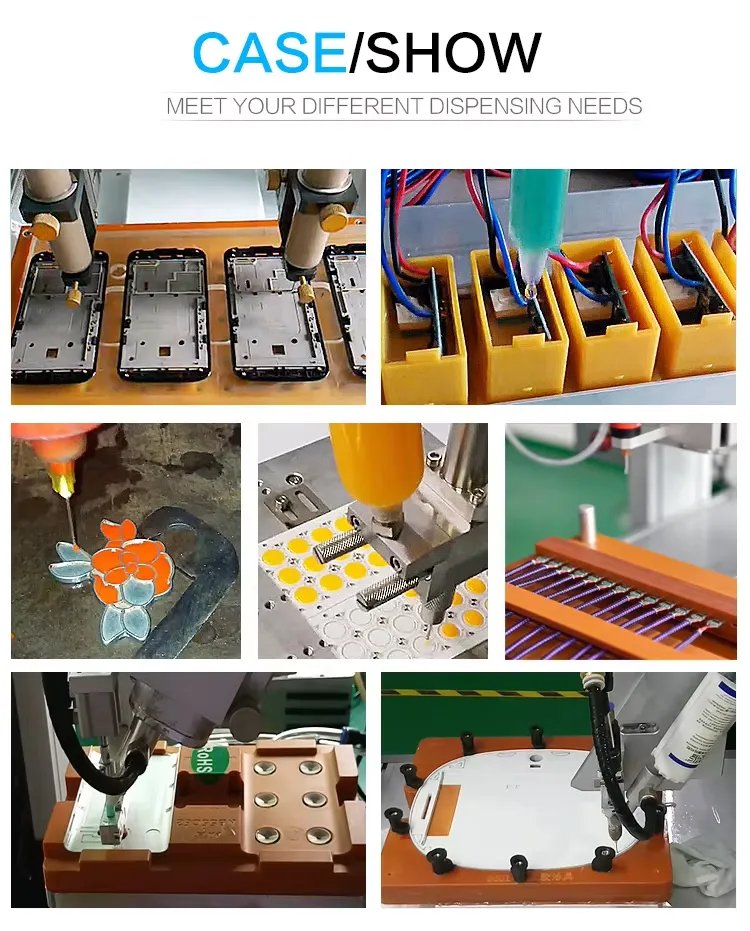

This dispenser machine is suitable for high efficiency, high running precision and production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products,battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating,mechanical seals, etc.
2. Suitable for positioning of different jobs.
3. It supports graphics importing from computer, PLT files, TCF files and G code files.
4. Suitable for glue: Anaerobics, Coatings, Cyanoacrylates, White Glues, Epoxy Resin, Greases, Sealants, Silicones, Solder/Braze Pastes, Thermal Grease, Conductive Adhesive, Red Gum, UV Glue, AB Glue, Polyurethane Resin Adhesive, etc.
This dispenser machine is suitable for high efficiency, high running precision and production process of dispensing. Generally suitable for products with sensors, relays, power adapters, electronic toys, sounders, electronic components, household appliances, electric vehicle controllers, computer digital products, crafts, mobile phone boards, coil products, button products,battery boxes, speakers Dot glue bonding; speaker packaging and dispensing, optical semiconductor, mobile phone battery, laptop battery packaging, PCB board bonding, COB, IC, PDA, LCD sealing, IC packaging, IC bonding, chassis bonding, Optical device processing, hardware parts package coating, quantitative liquid filling, chip bonding, automotive mechanical parts coating,mechanical seals, etc.

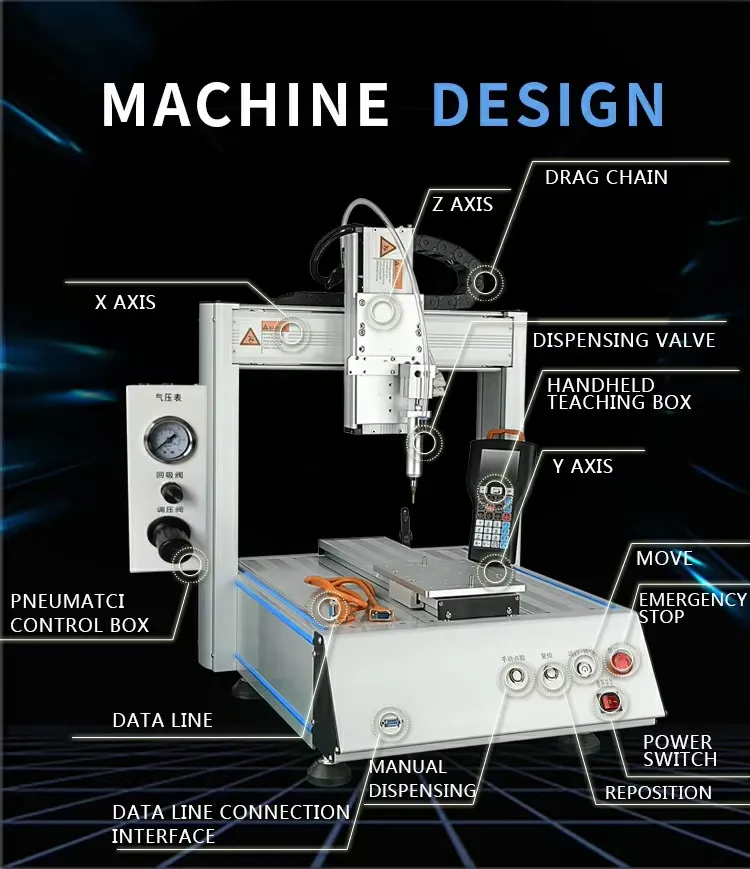

| Number of controlled axes | 3-axis | 4-axis | |||||
|---|---|---|---|---|---|---|---|
| Effective travel | X axis | 200mm | 300mm | 400mm | 500mm | 400mm | 500mm |
| Y1 axis | 200mm | 300mm | 400mm | 500mm | 300mm | 300mm | |
| Y2 axis | 300mm | 300mm | |||||
| Z axis | 50mm | 100mm | 100mm | 100mm | 100mm | 100mm | |
| Transmission mode | Double-track timing belt | ||||||
| Power source | Stepper motor | ||||||
| Top speed | 500mm/sec | ||||||
| Repeat accuracy | ±0.05mm | ||||||
| Maximum load | X/Y/Z 5kg/5kg/2kg | ||||||
| Control System | Hand held 3-axis control system | ||||||
